Home >> Lexus >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Diagrams >> Grounds

Grounds

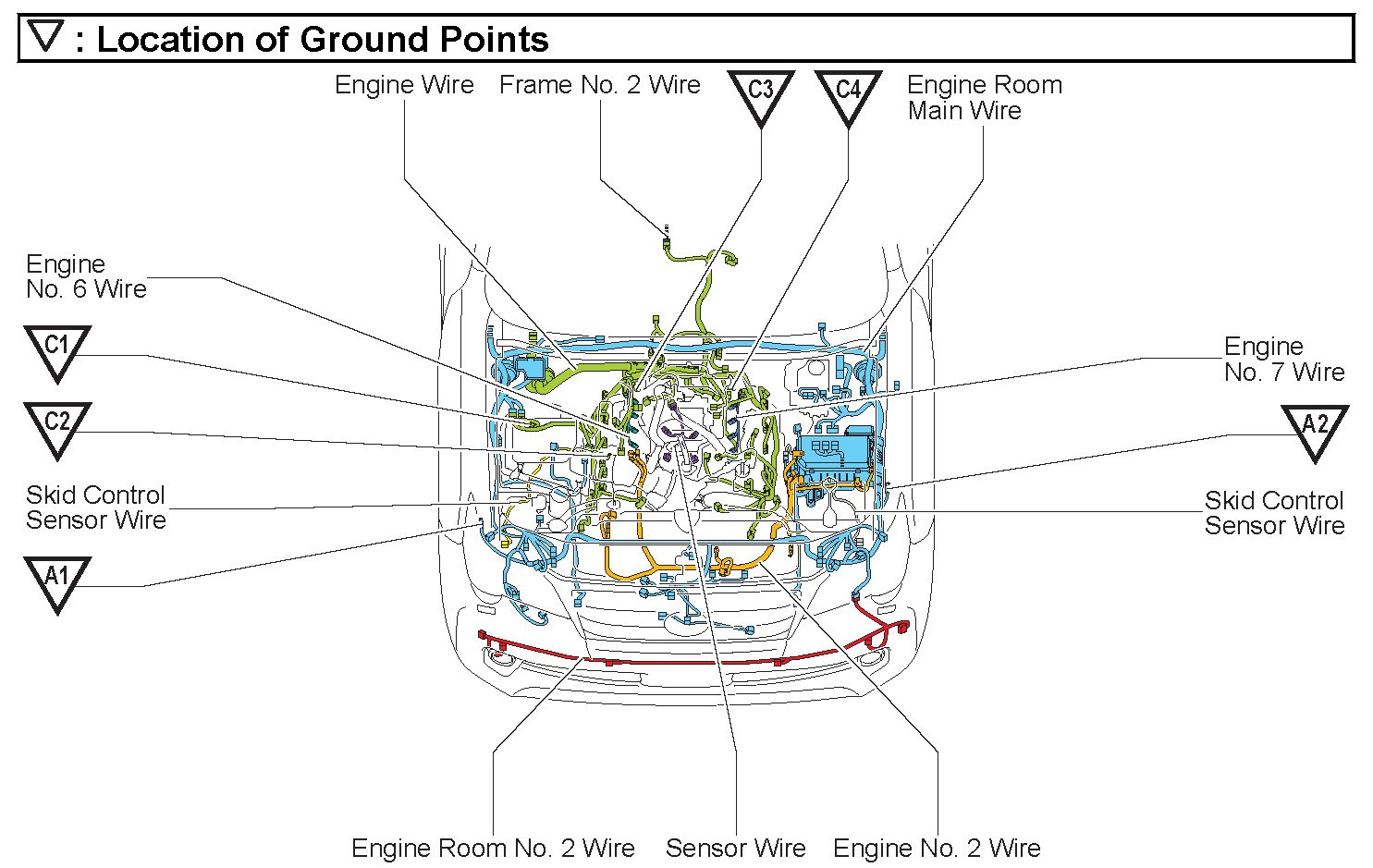

A1-C4:

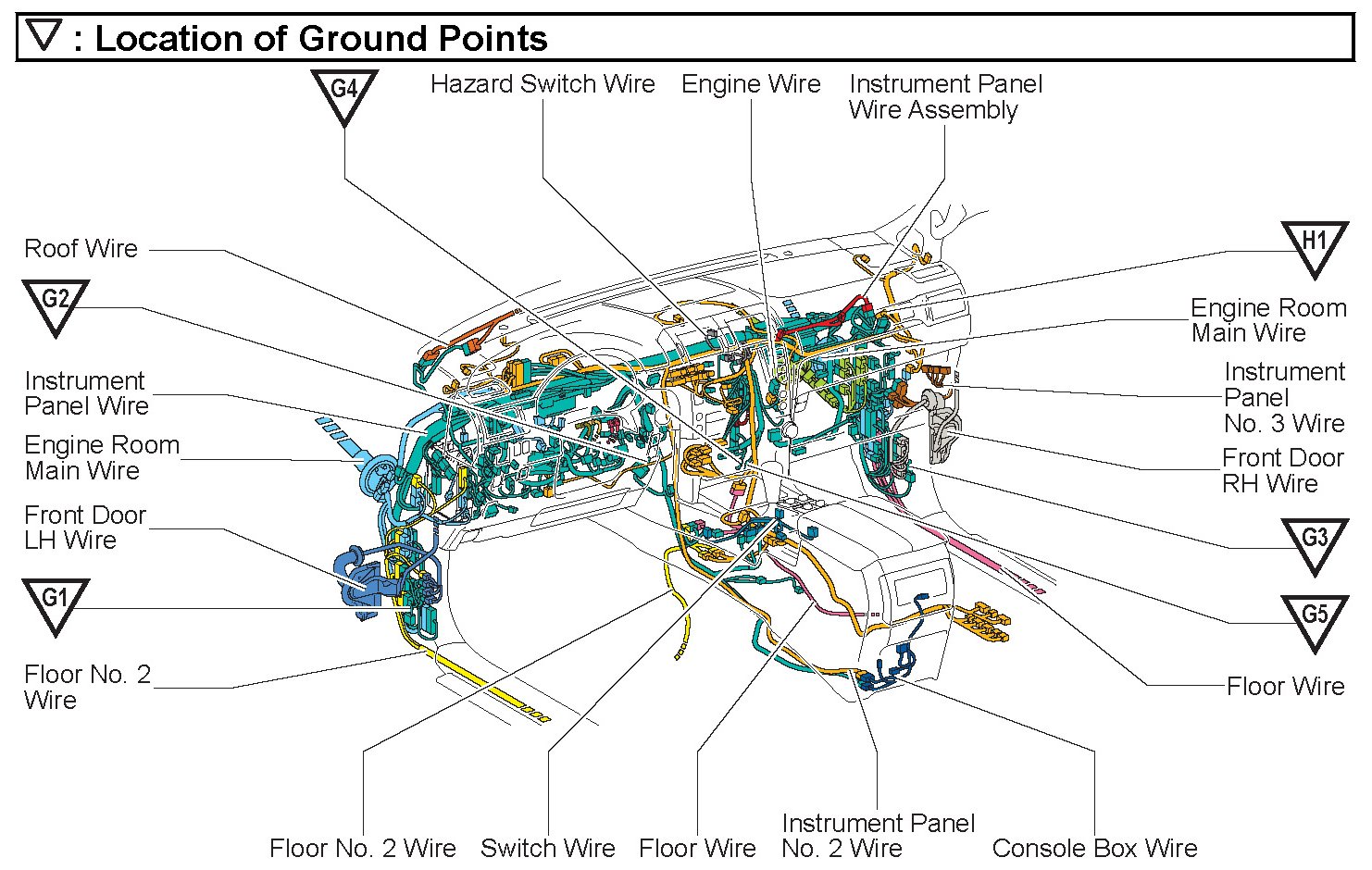

G1-H1:

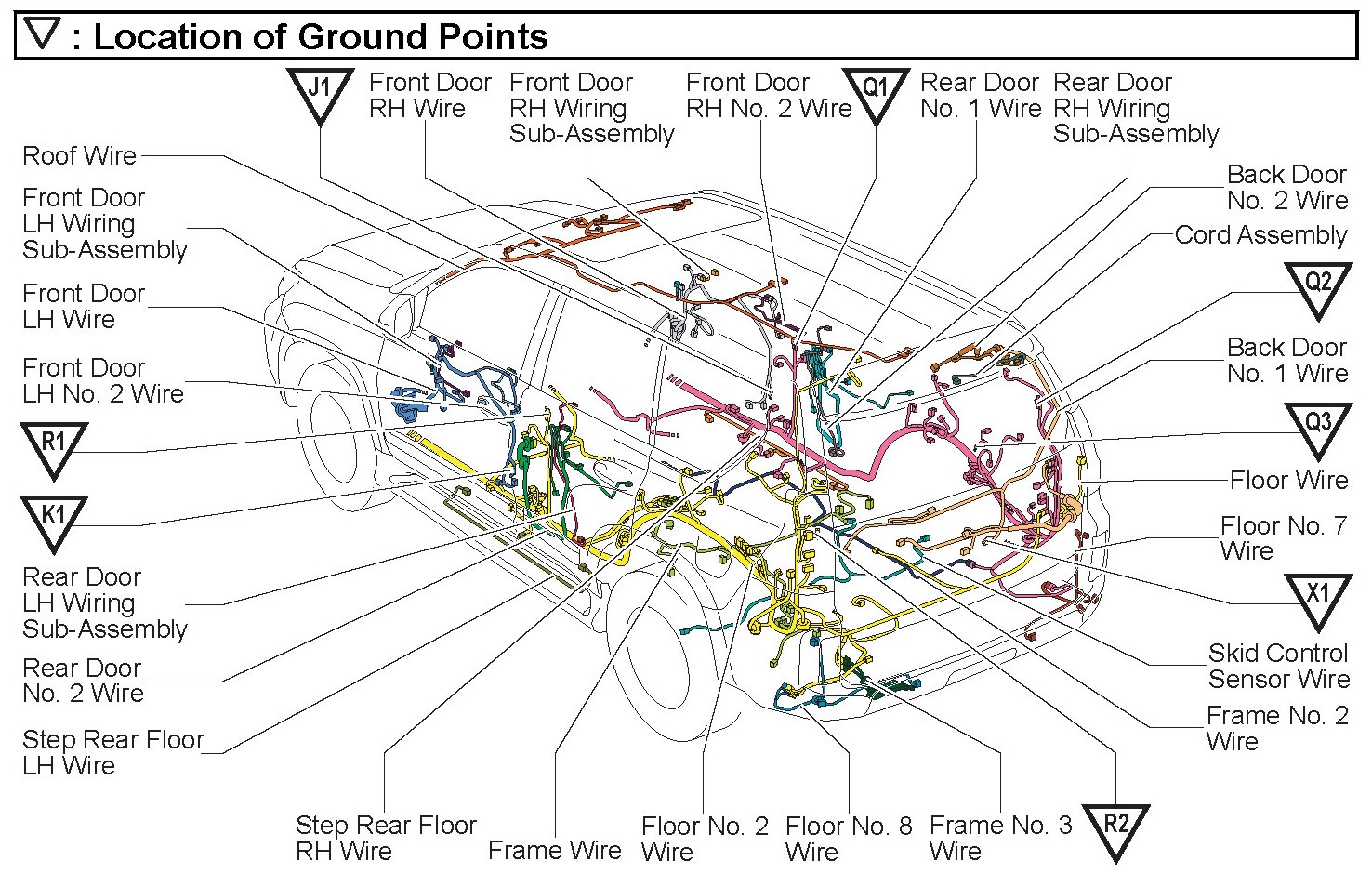

J1-X1:
