Power Rear No. 2 Seat With Stowing Function

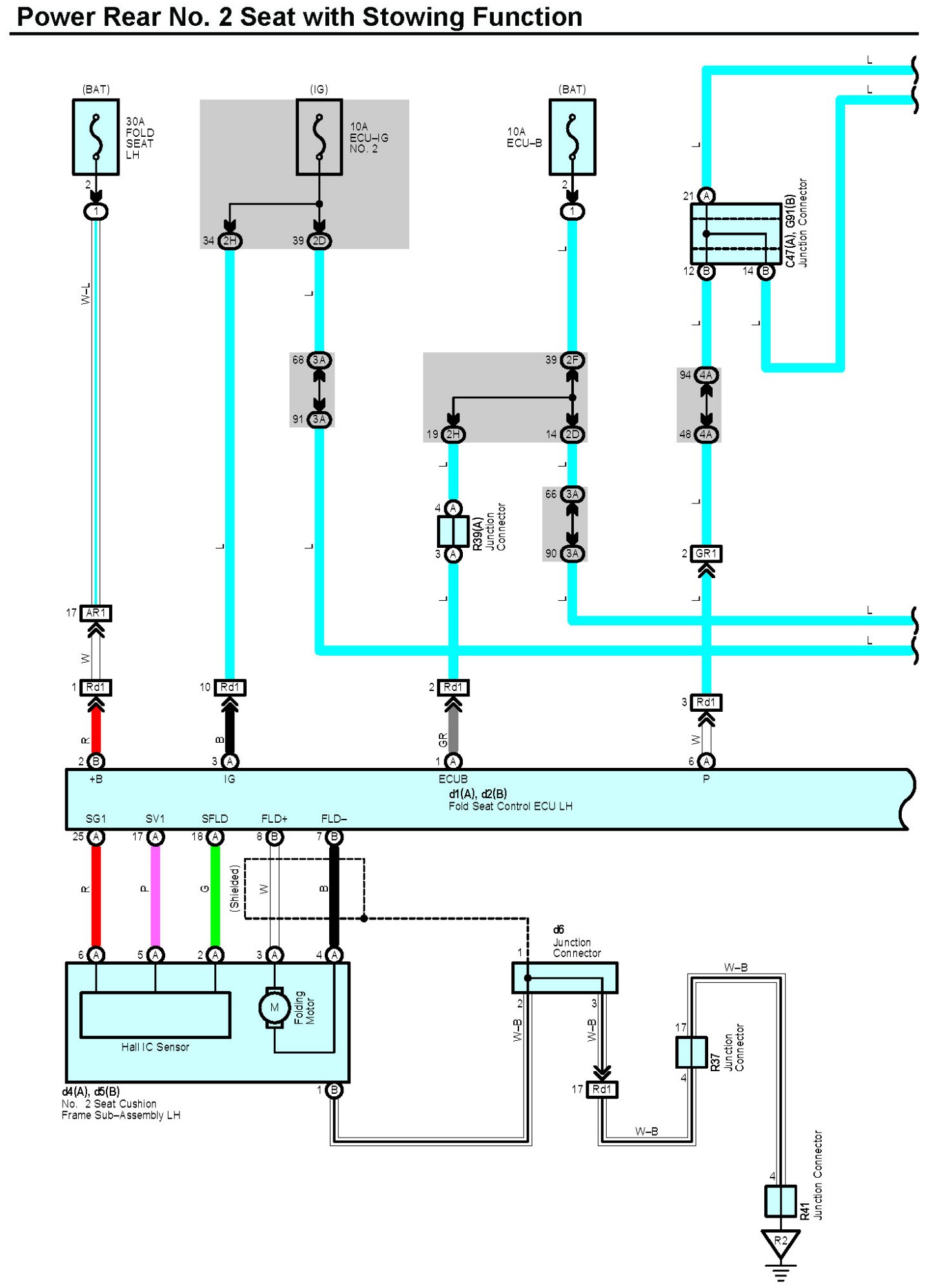

Power Rear No. 2 Seat with Stowing Function Part 1:

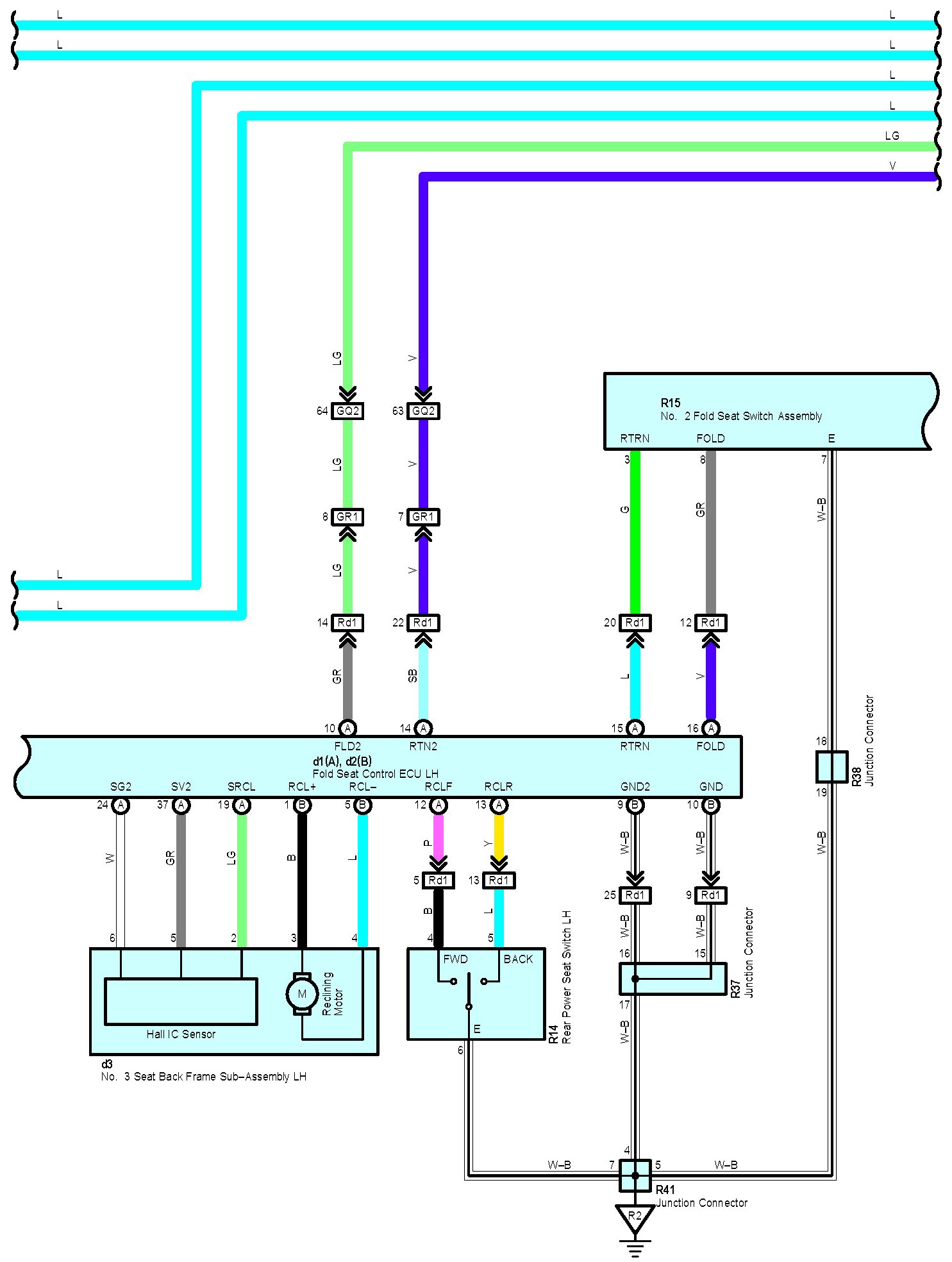

Power Rear No. 2 Seat with Stowing Function Part 2:

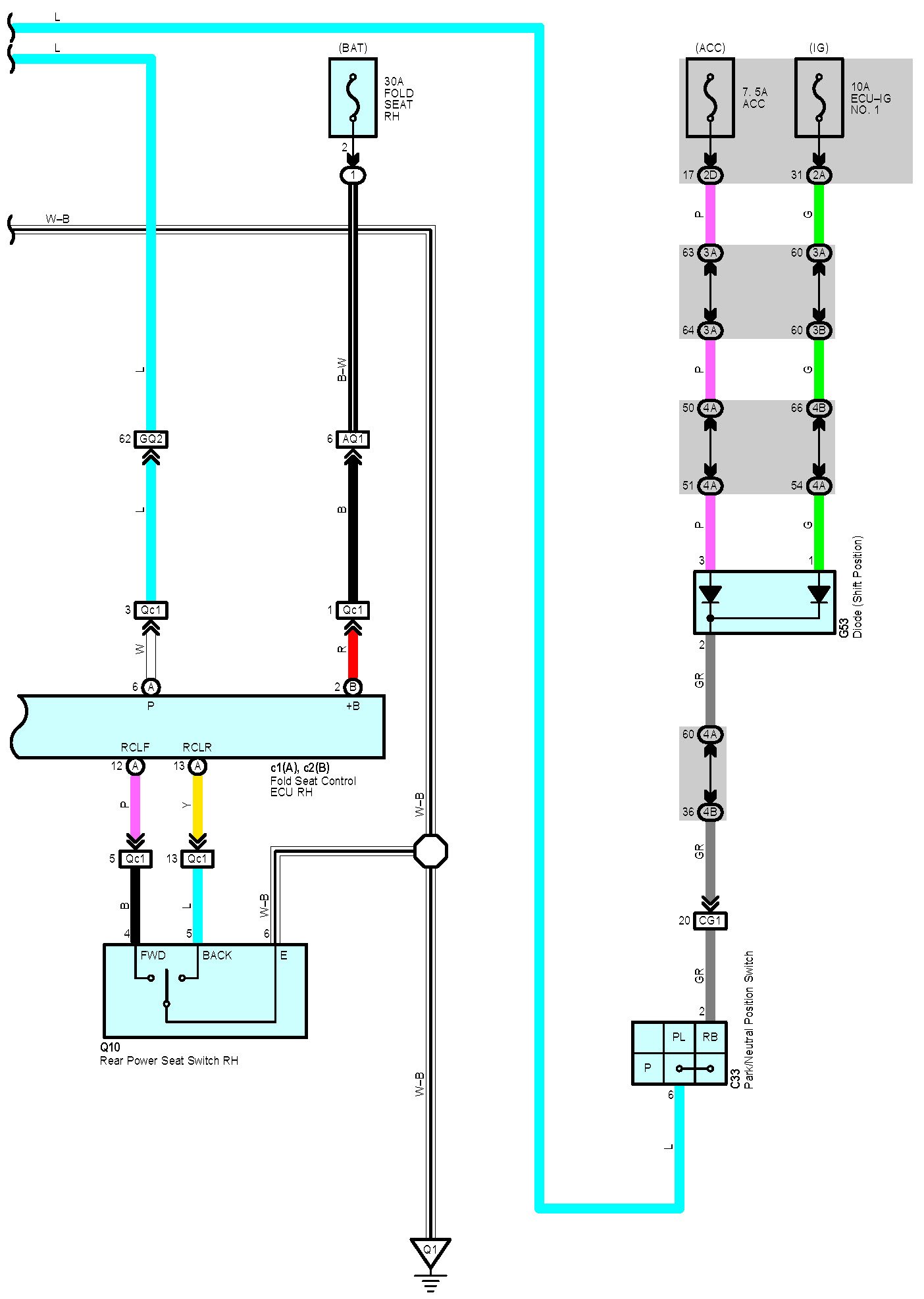

Power Rear No. 2 Seat with Stowing Function Part 3:

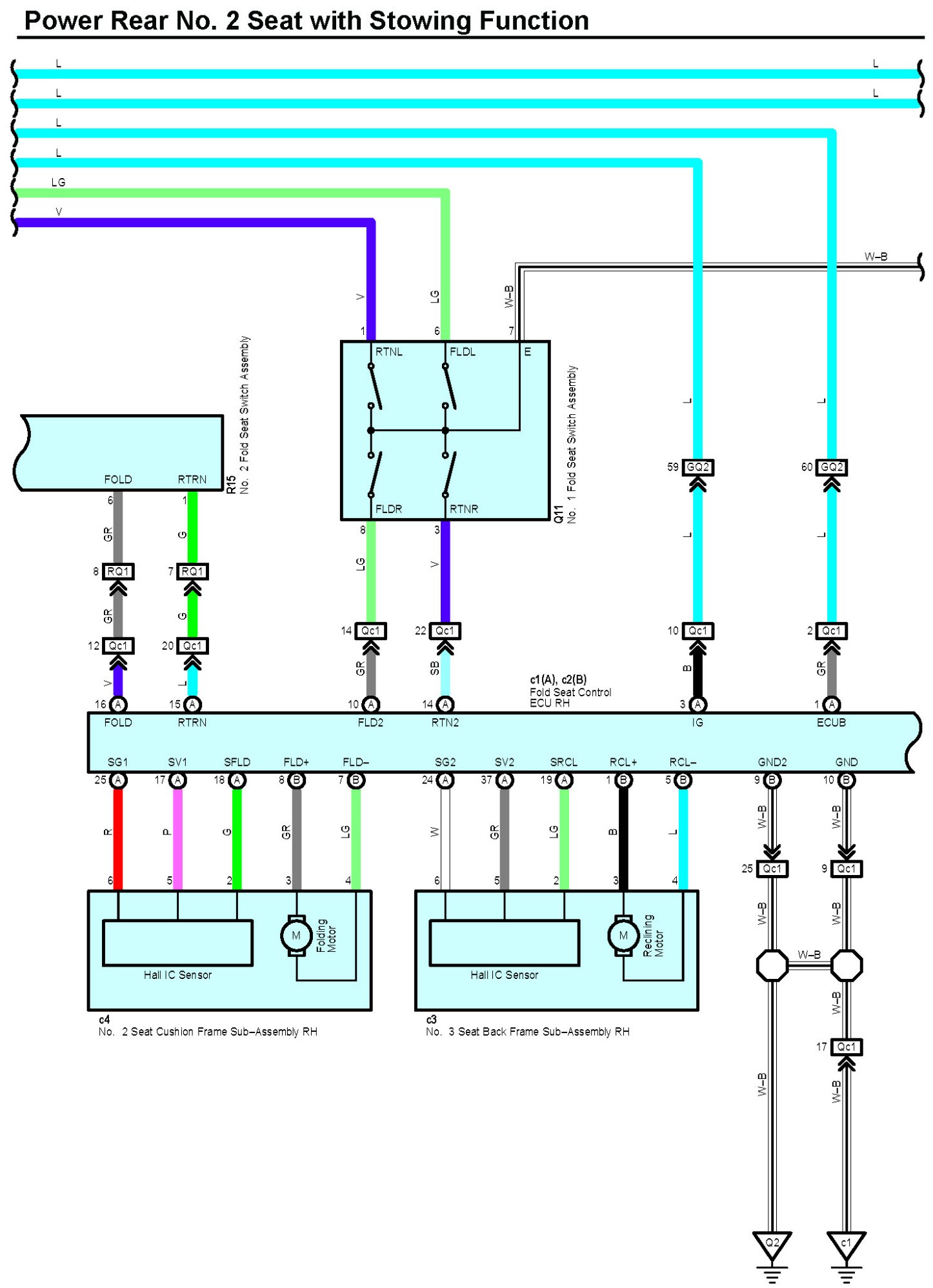

Power Rear No. 2 Seat with Stowing Function Part 4:

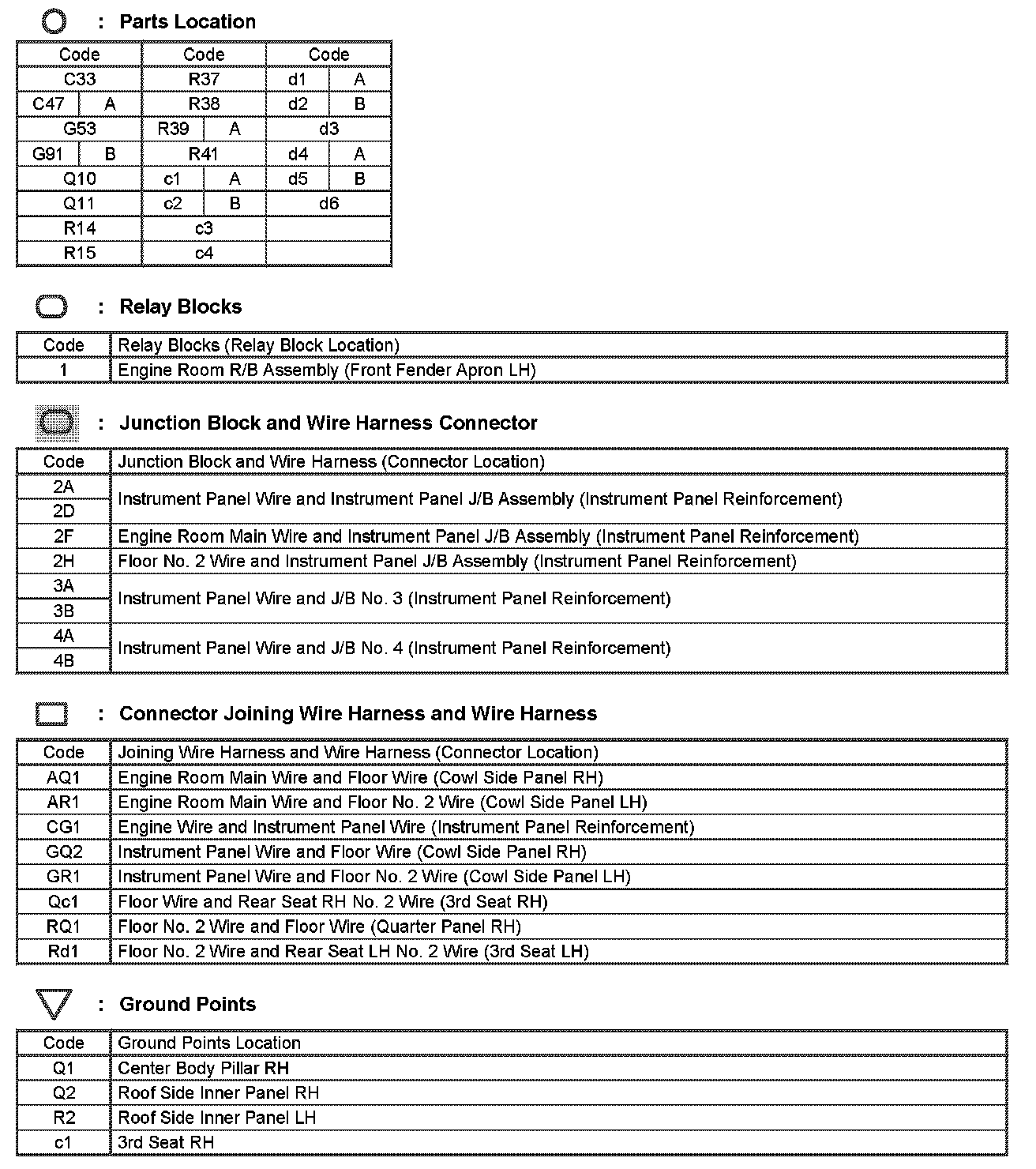

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
