Multiplex Communication System (CAN) Part 1

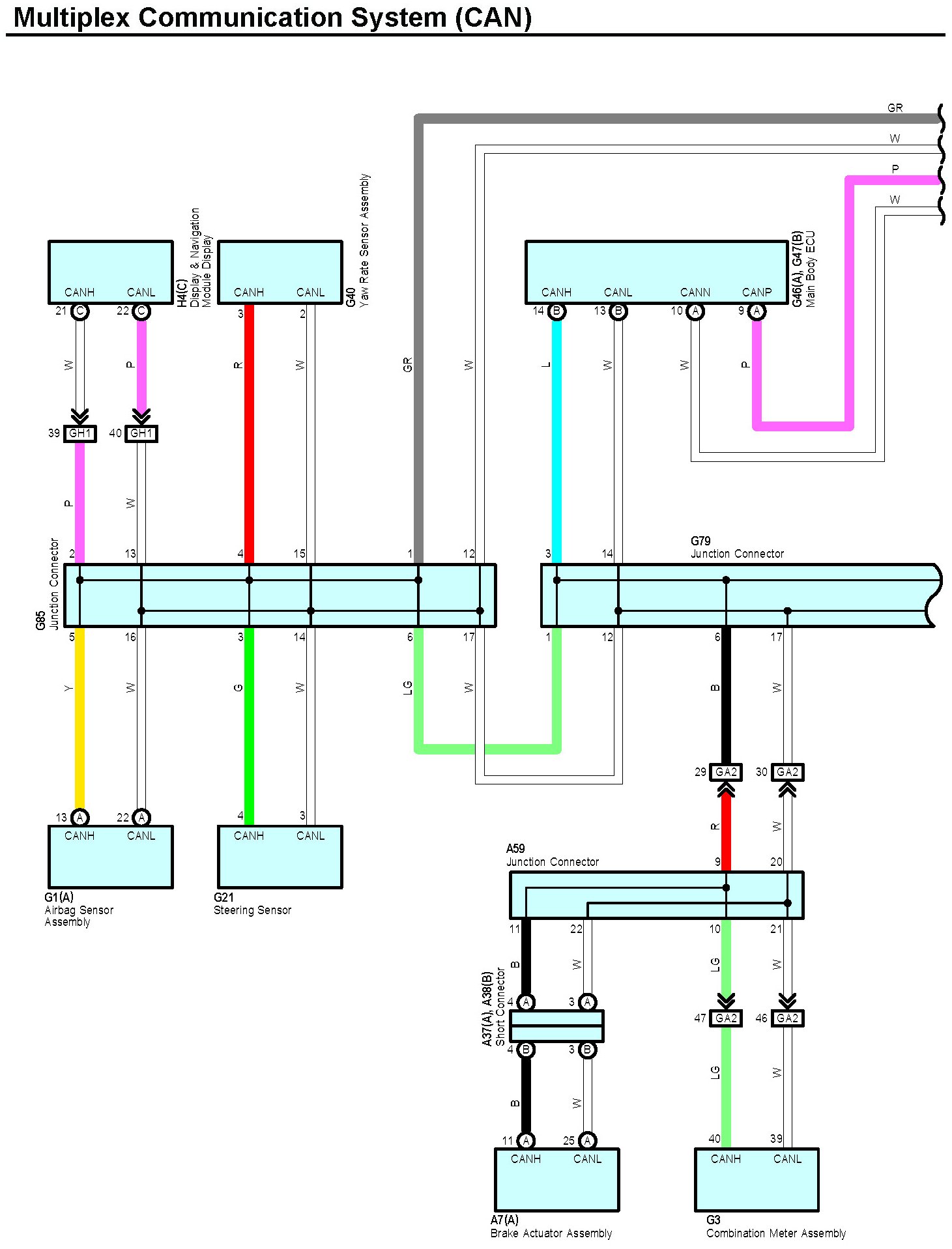

Multiplex Communication System (CAN) Part 1:









Next Diagram Multiplex Communication System (CAN) Part 2


Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
