Automatic Glare-Resistant EC Mirror With Compass

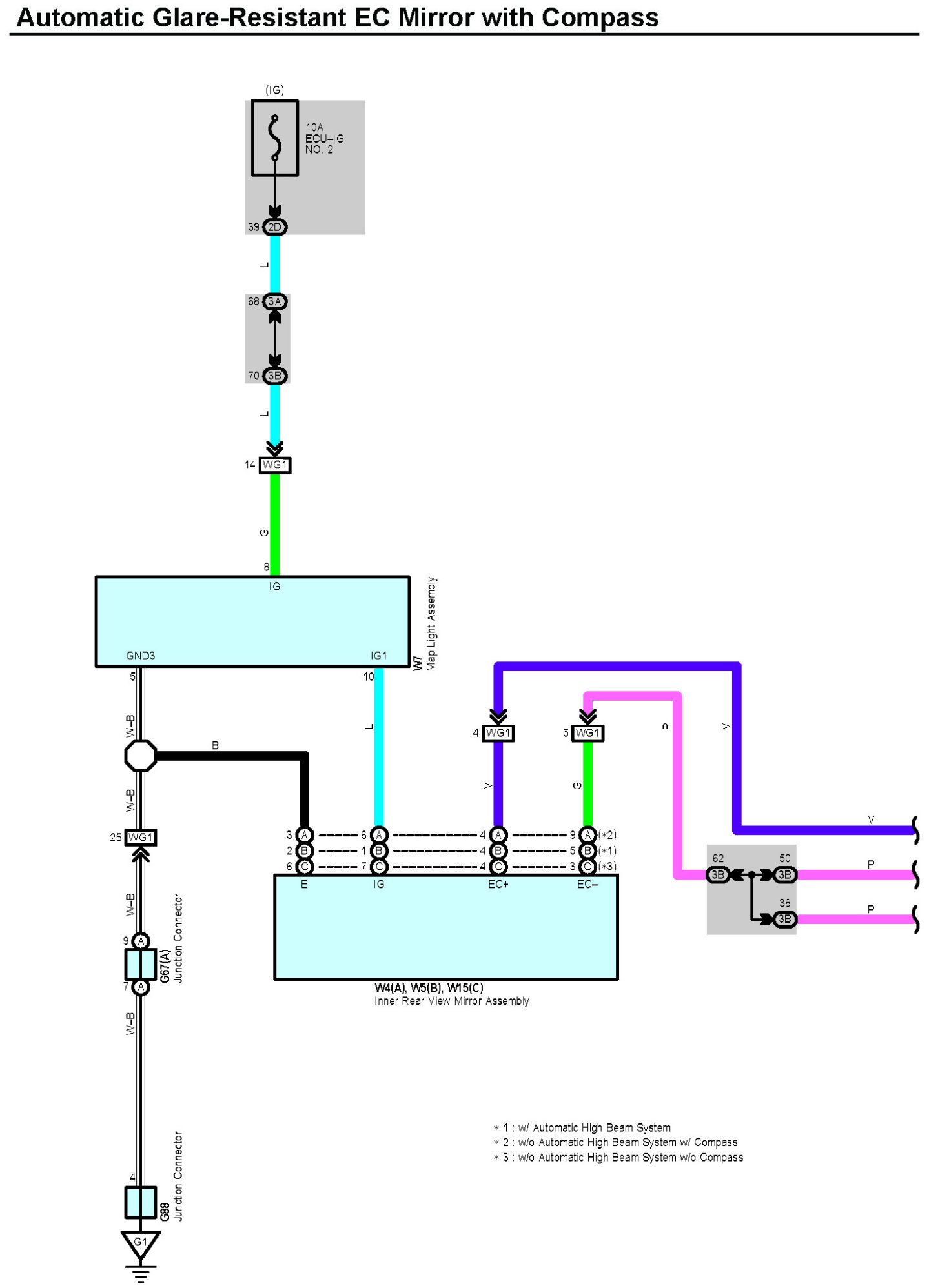

Automatic Glare-Resistant EC Mirror with Compass Part 1:

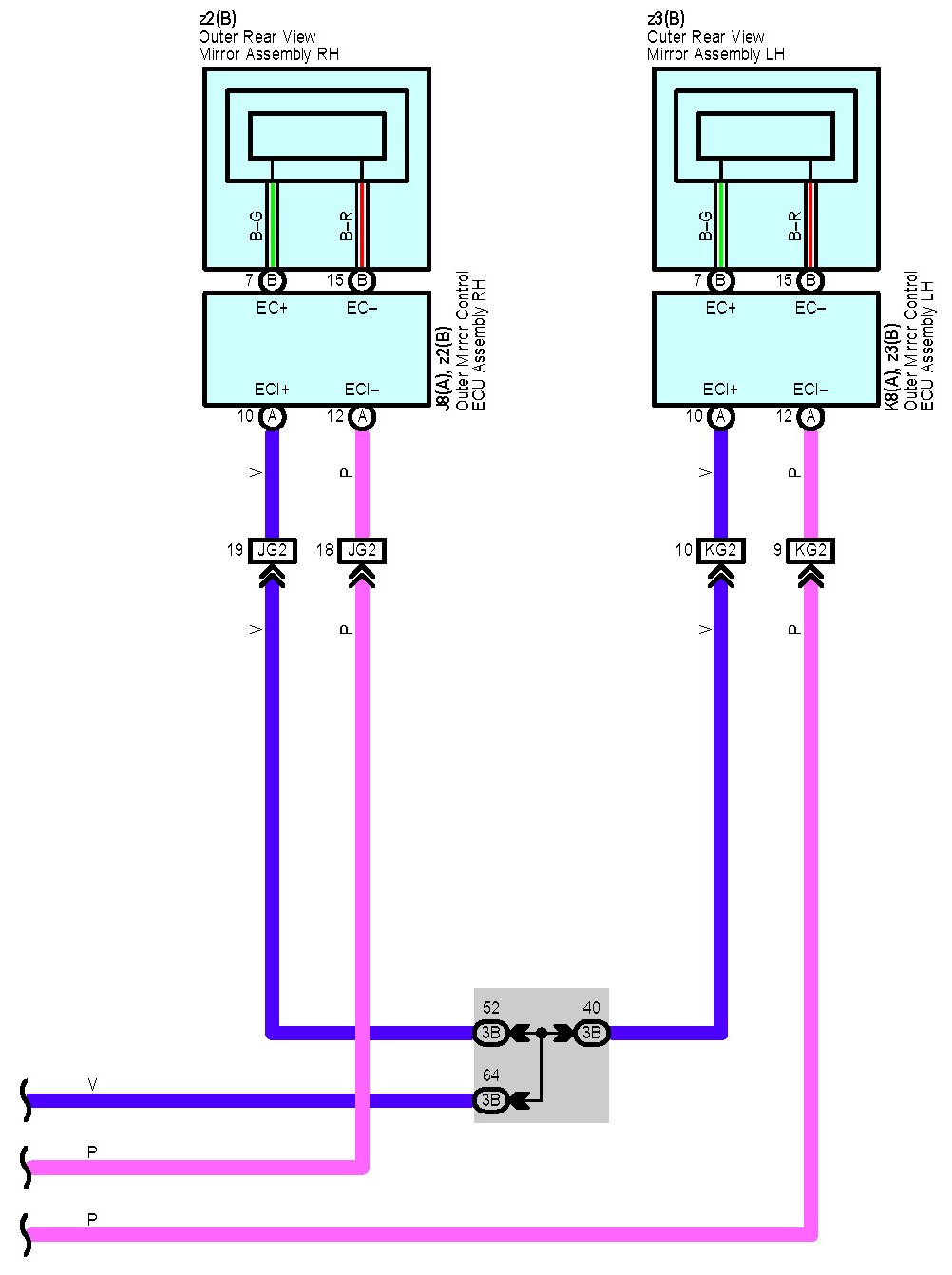

Automatic Glare-Resistant EC Mirror with Compass Part 2:

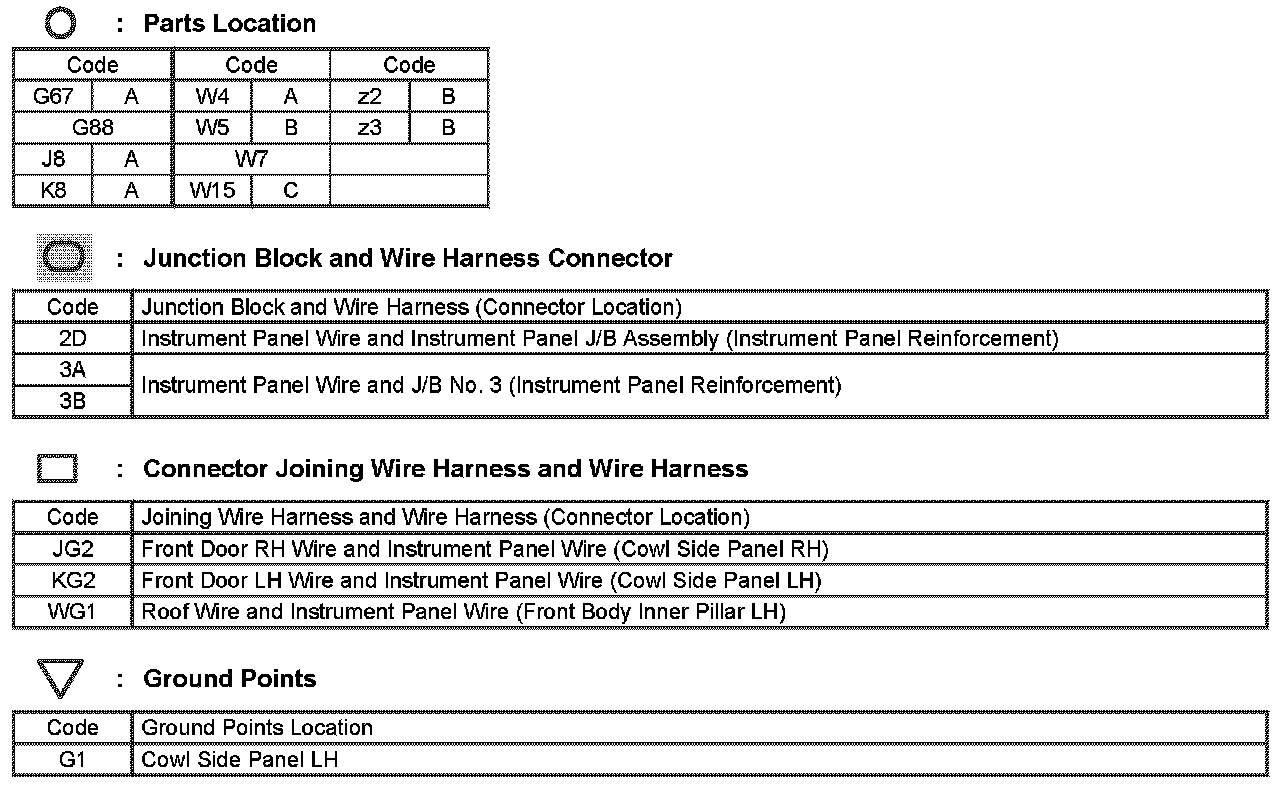

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
