Courtesy Lamp

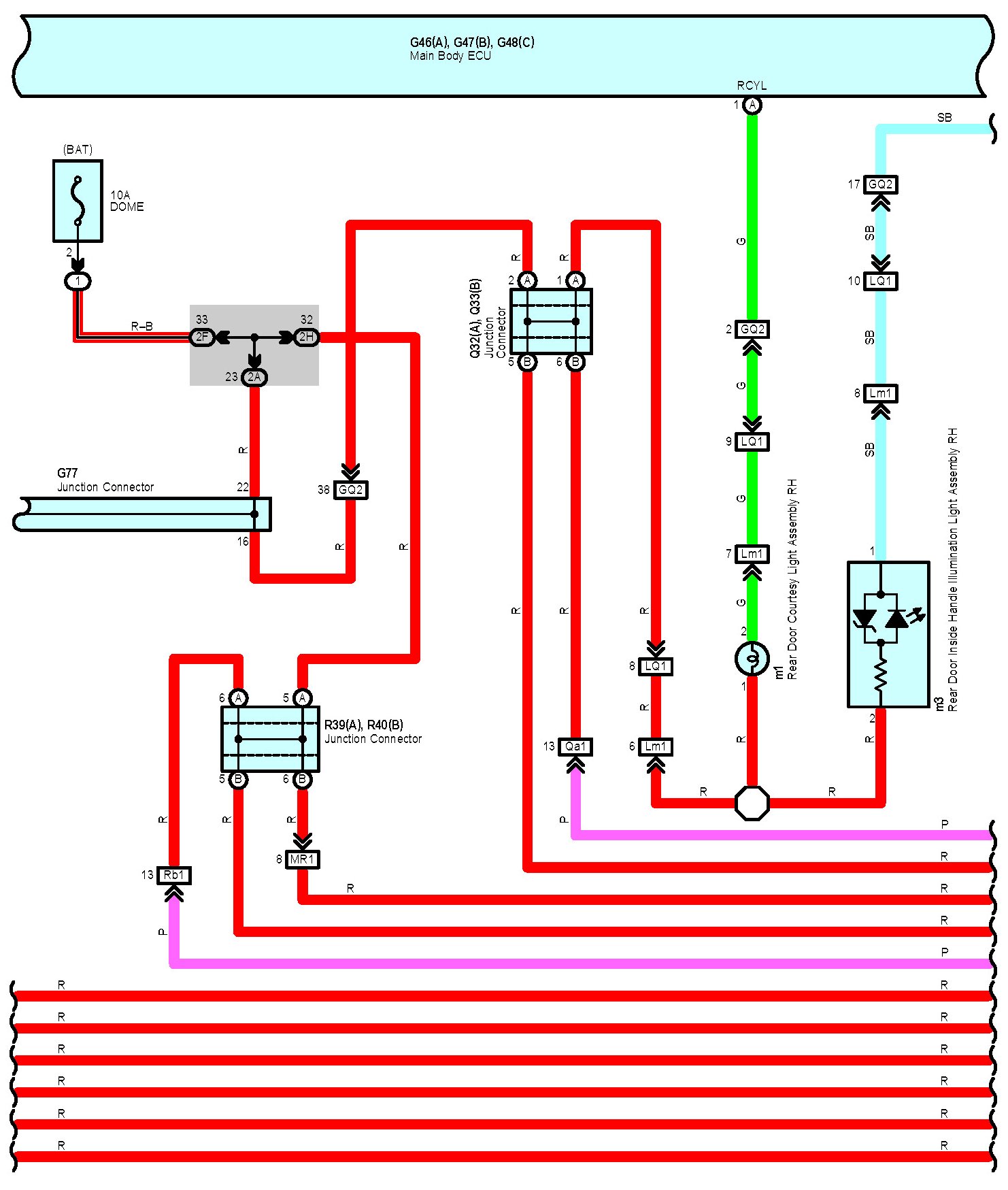

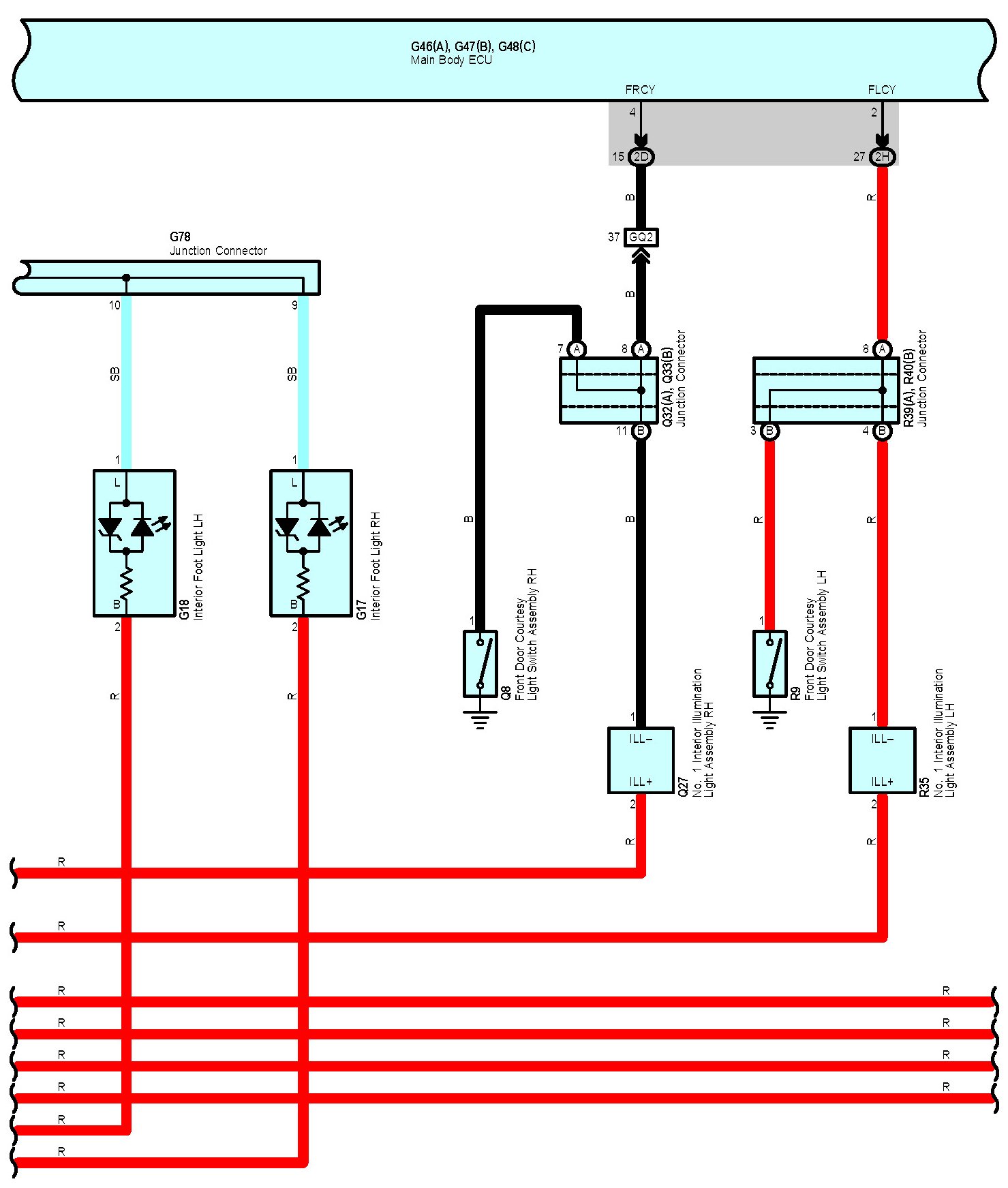

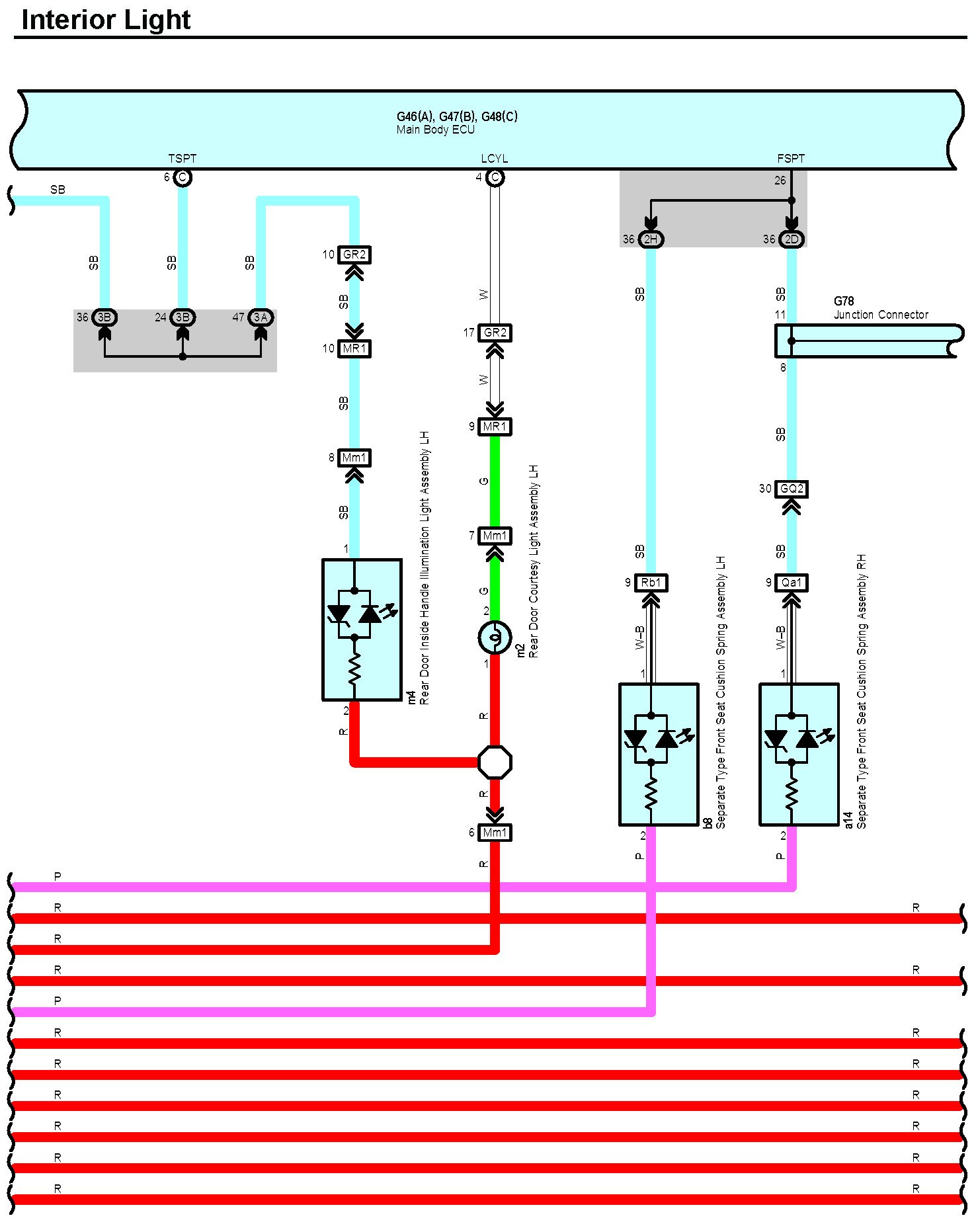

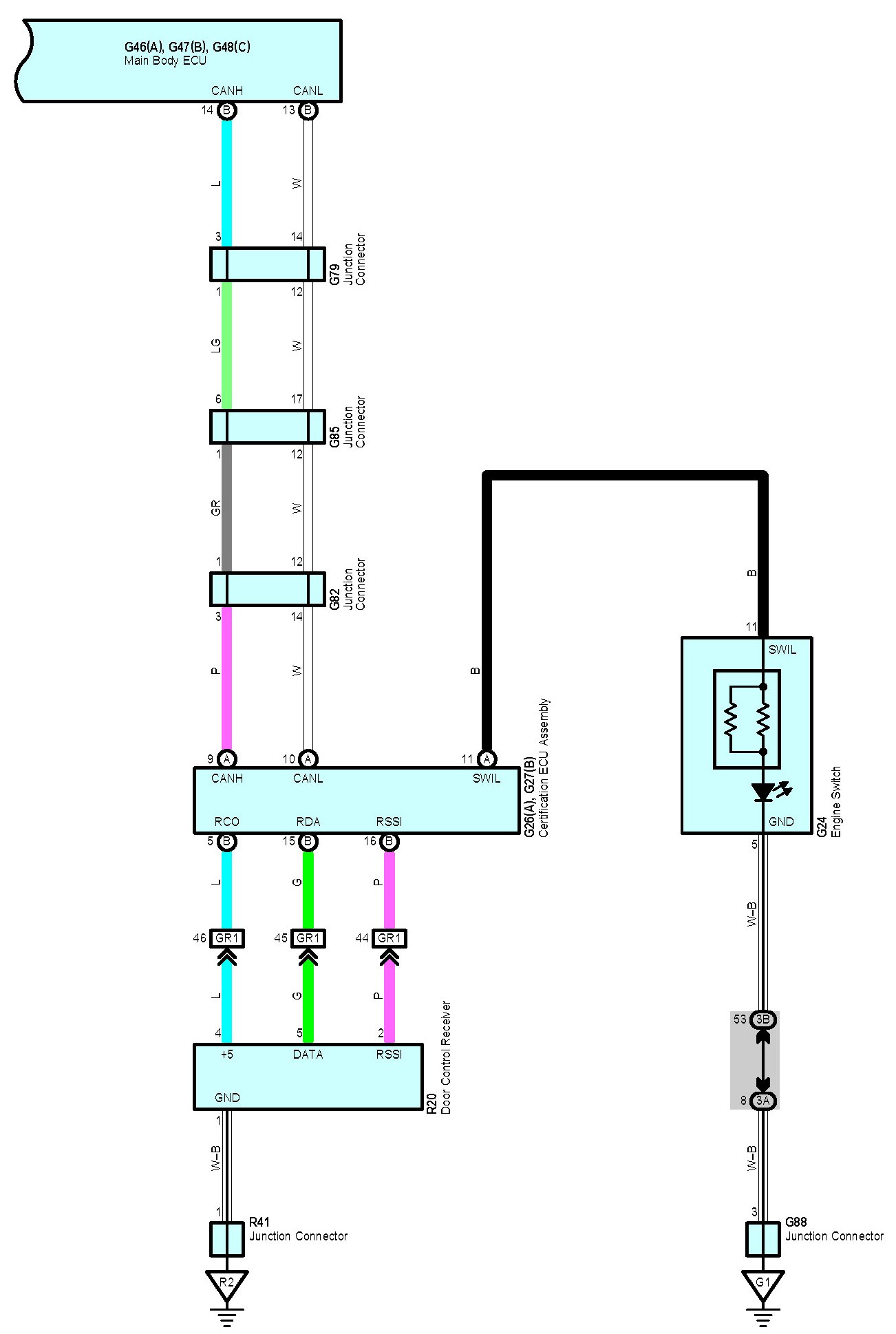

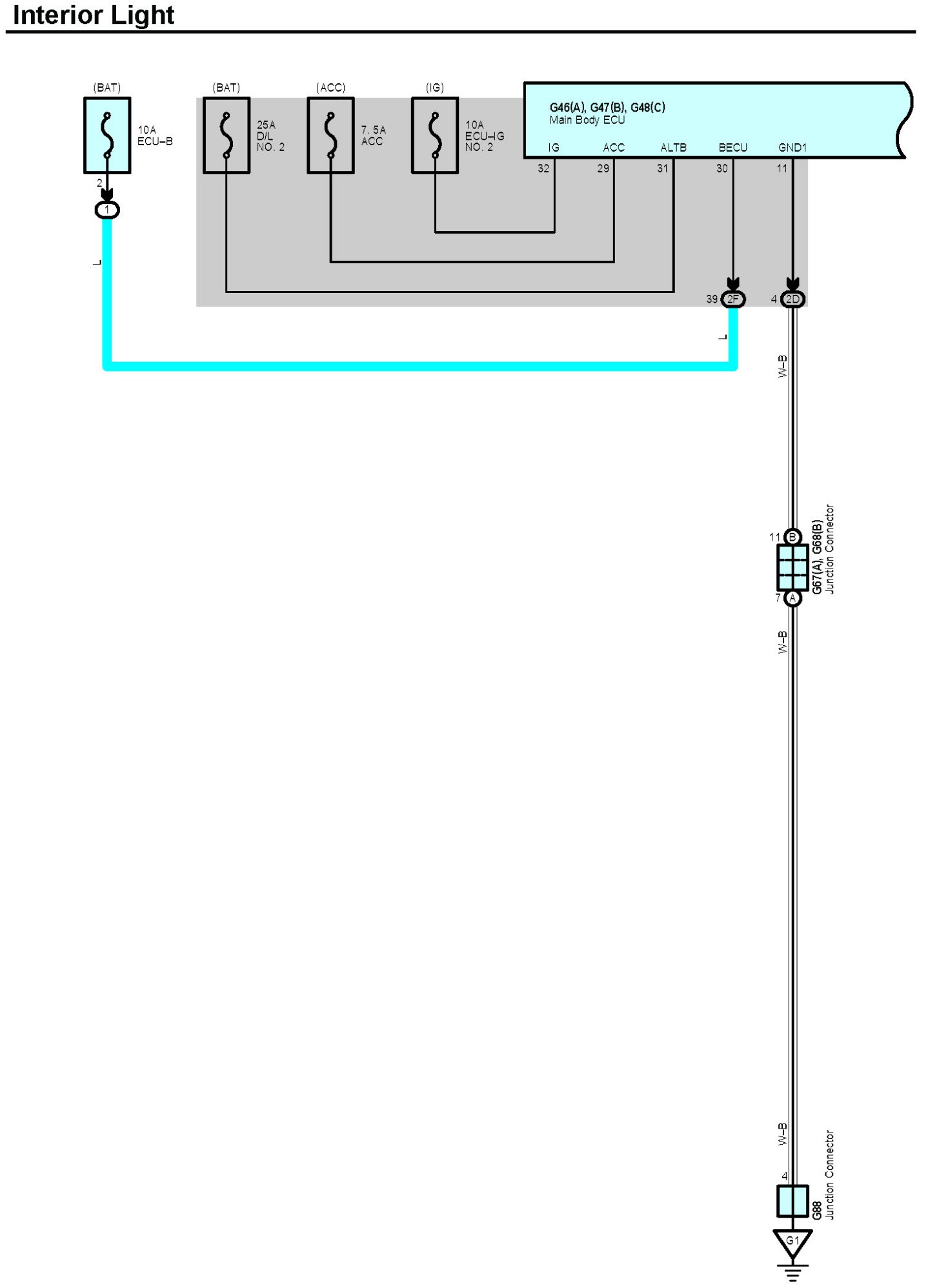

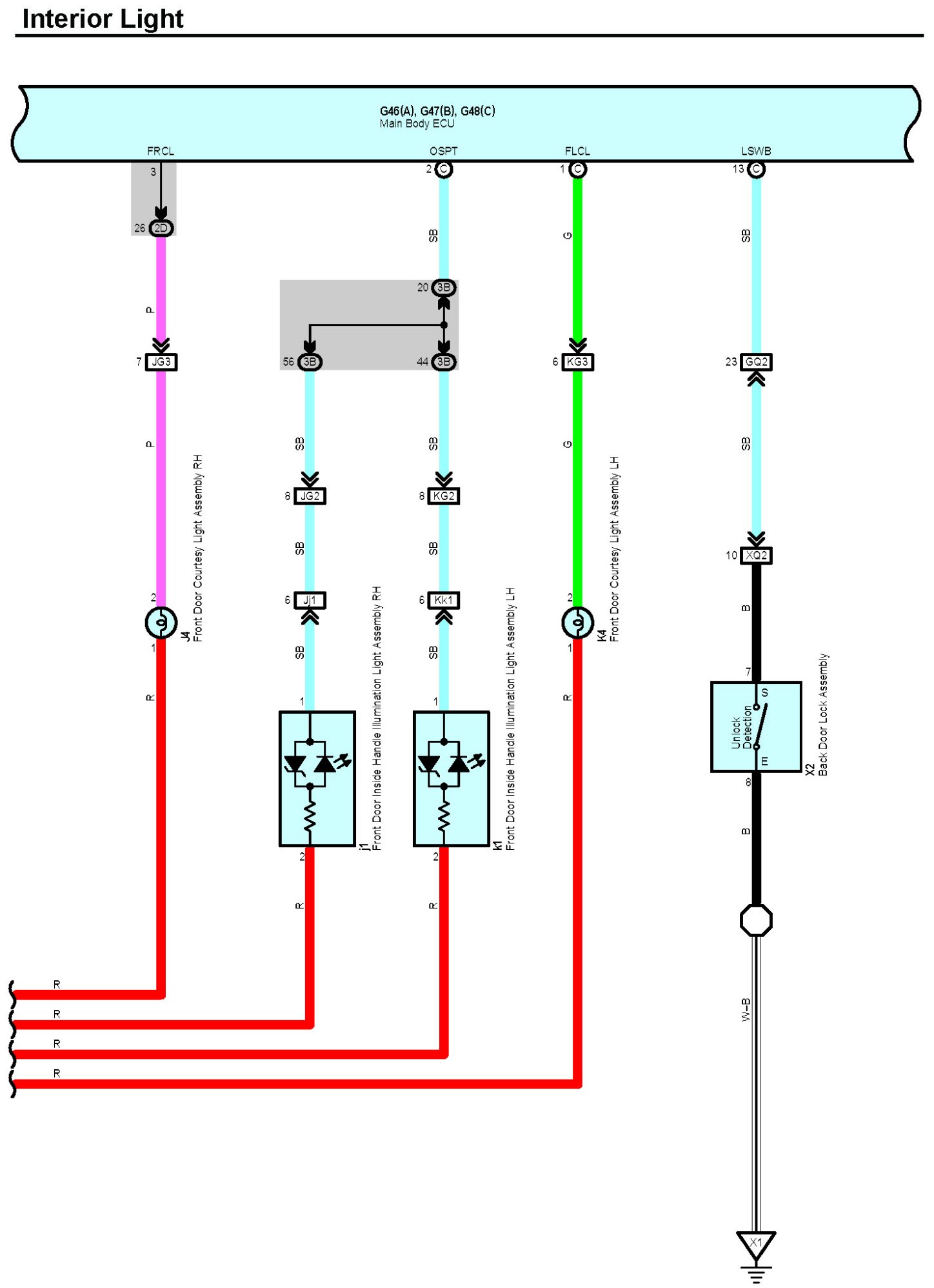

Interior Light Part 1:

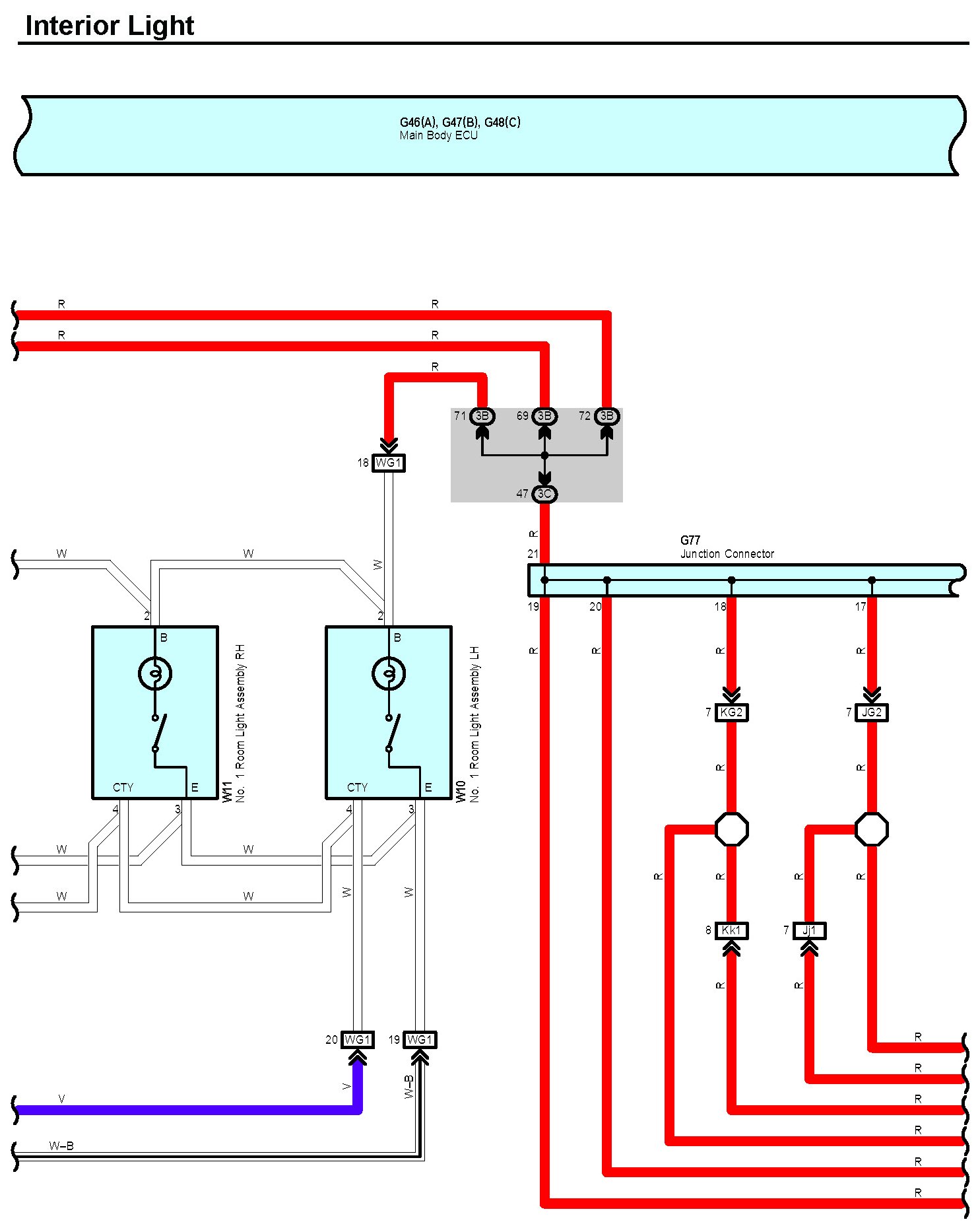

Interior Light Part 2:

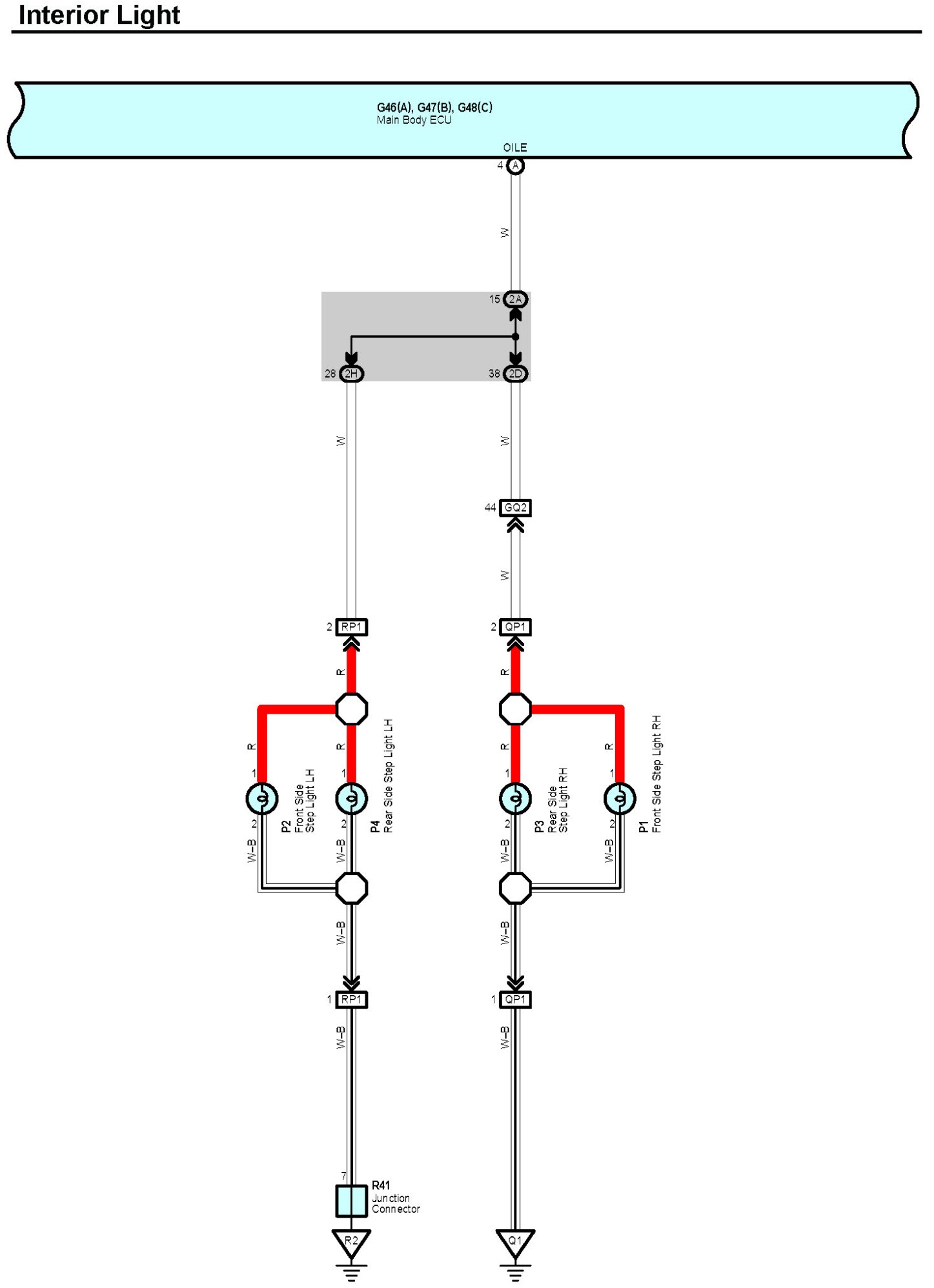

Interior Light Part 3:

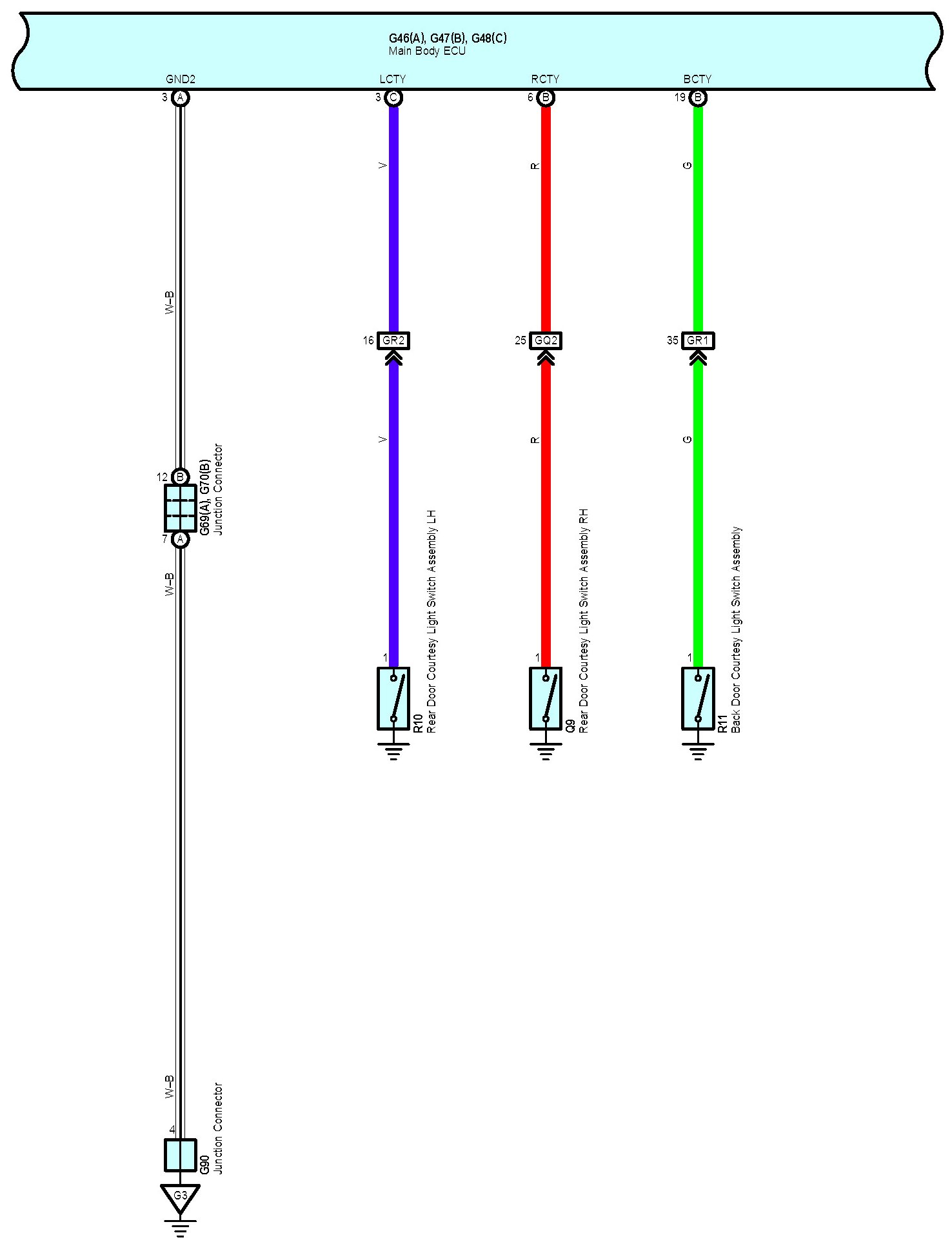

Interior Light Part 4:

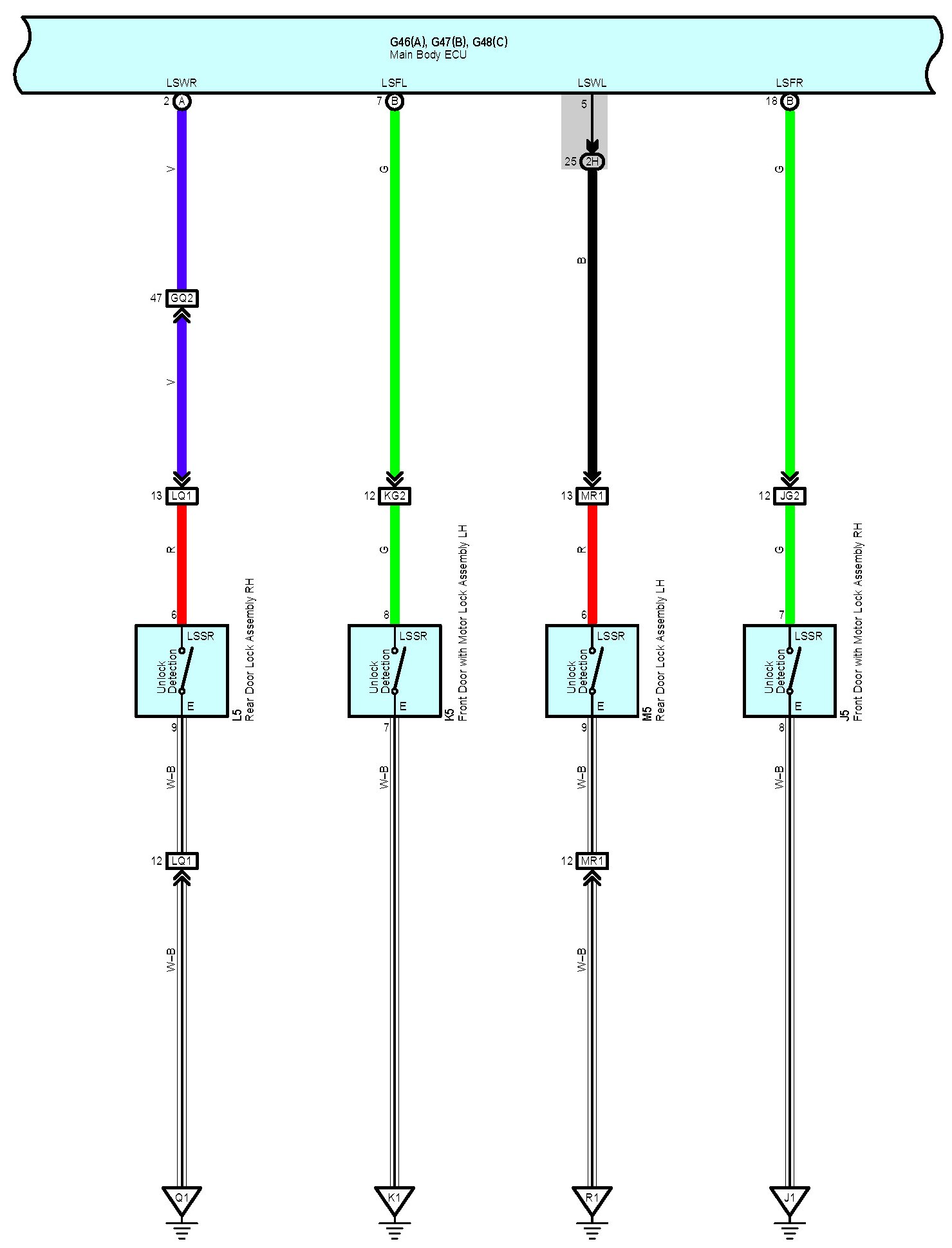

Interior Light Part 5:

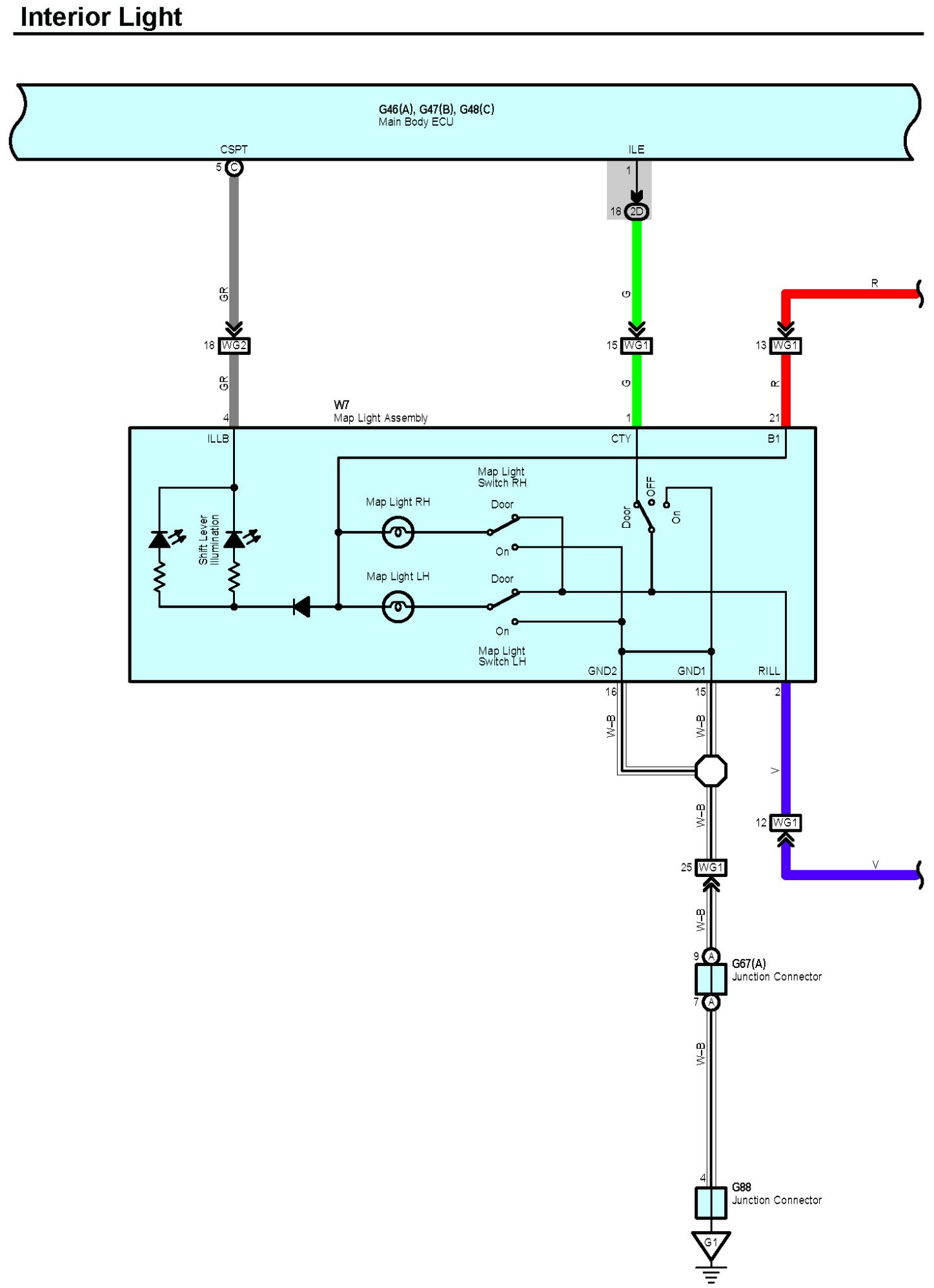

Interior Light Part 6:

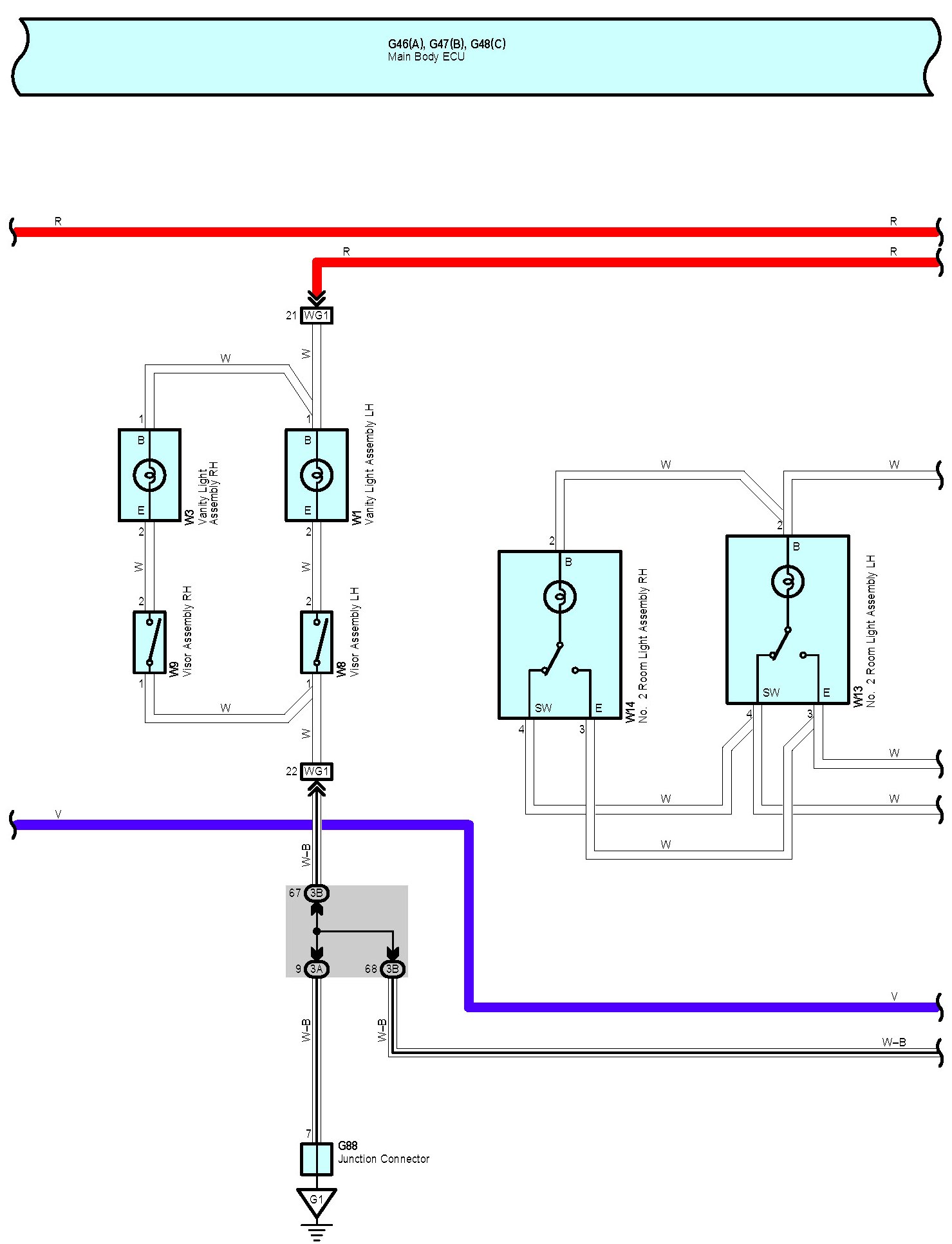

Interior Light Part 7:

Interior Light Part 8:

Interior Light Part 9:

Interior Light Part 10:

Interior Light Part 11:

Interior Light Part 12:

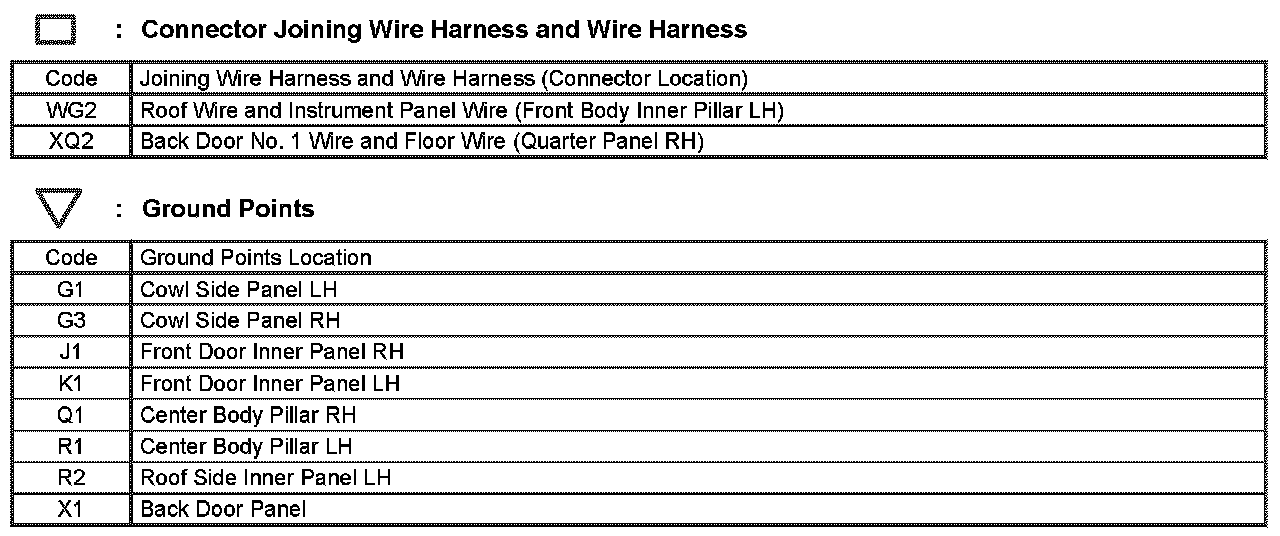

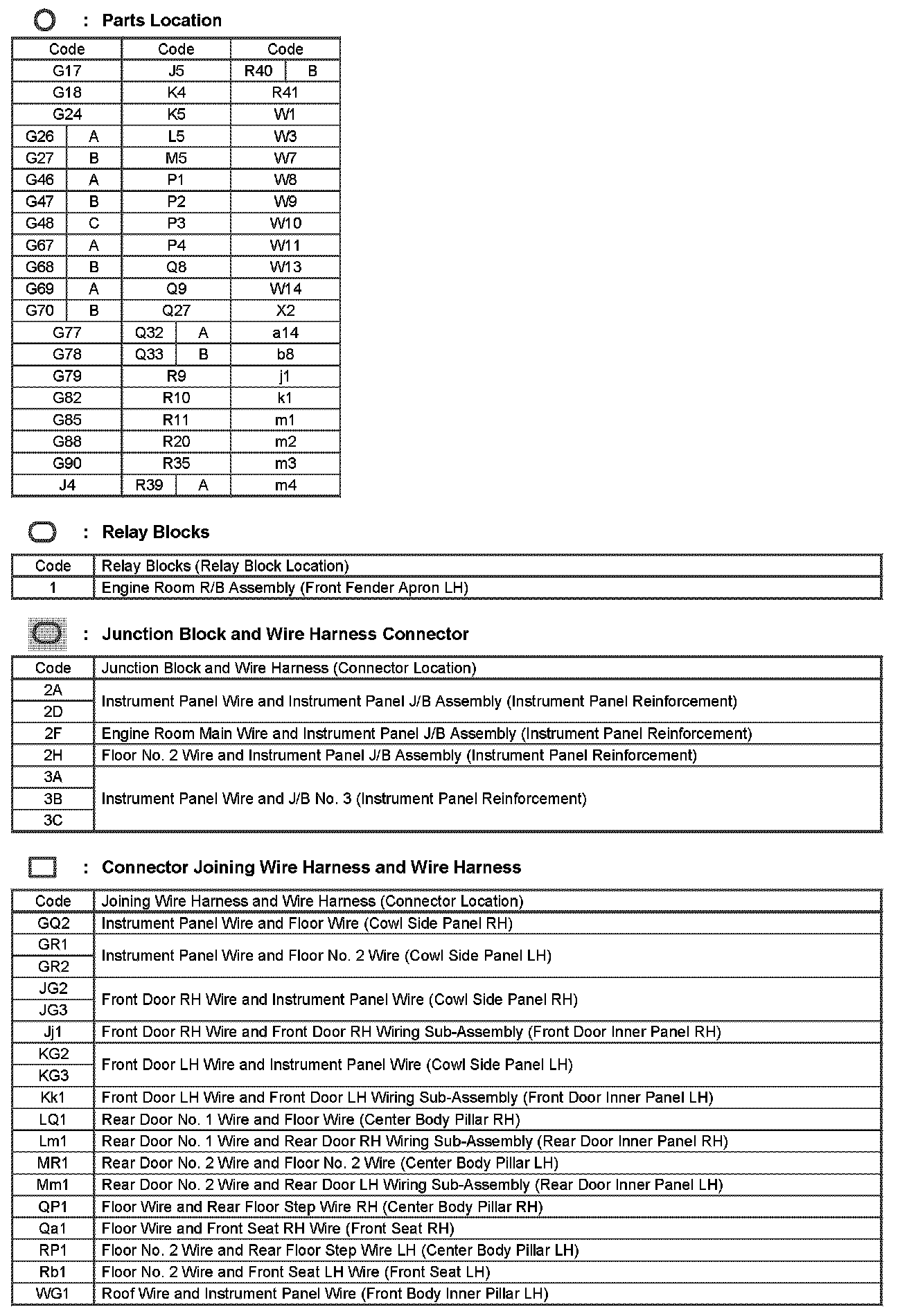

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
