Air Bag Systems

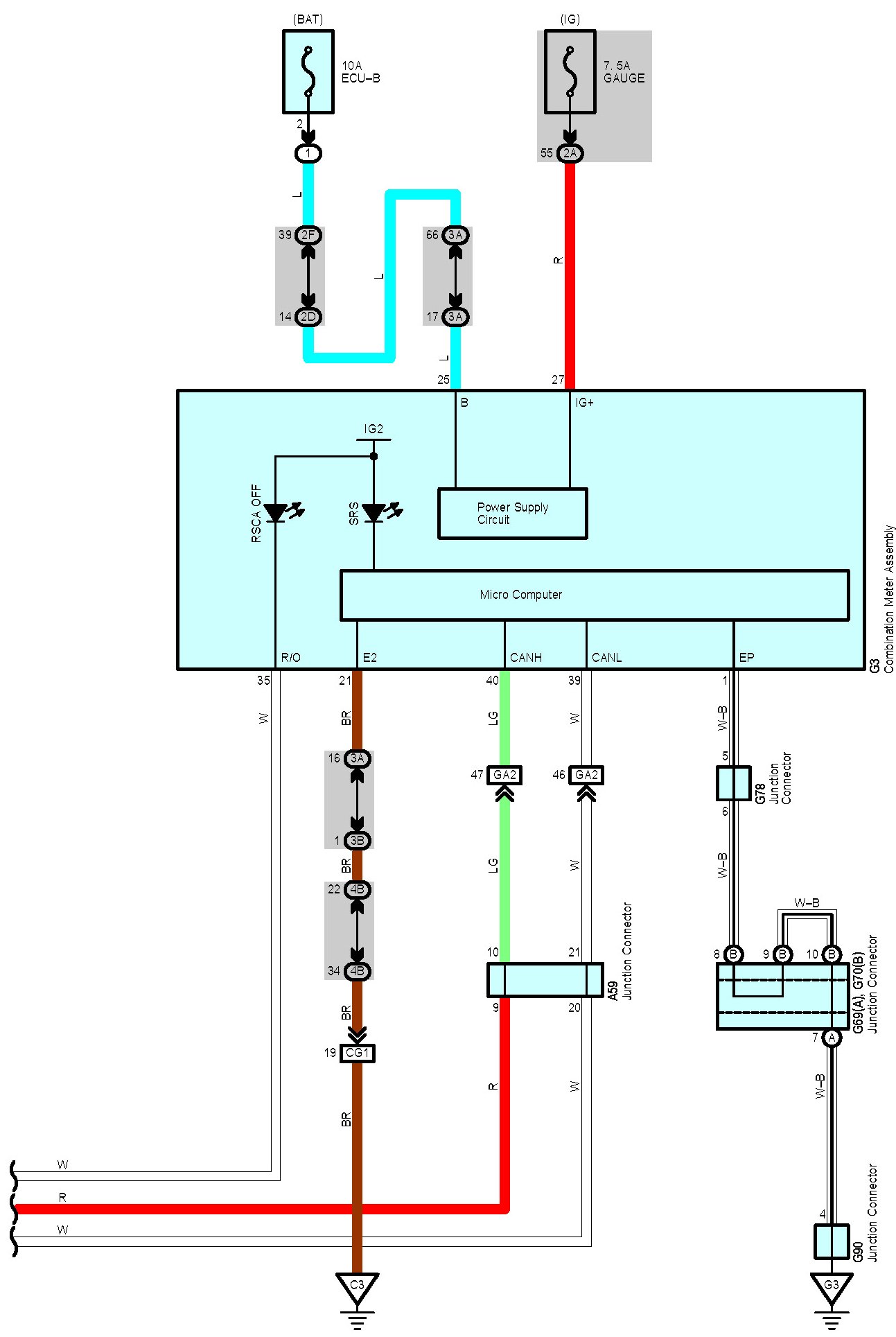

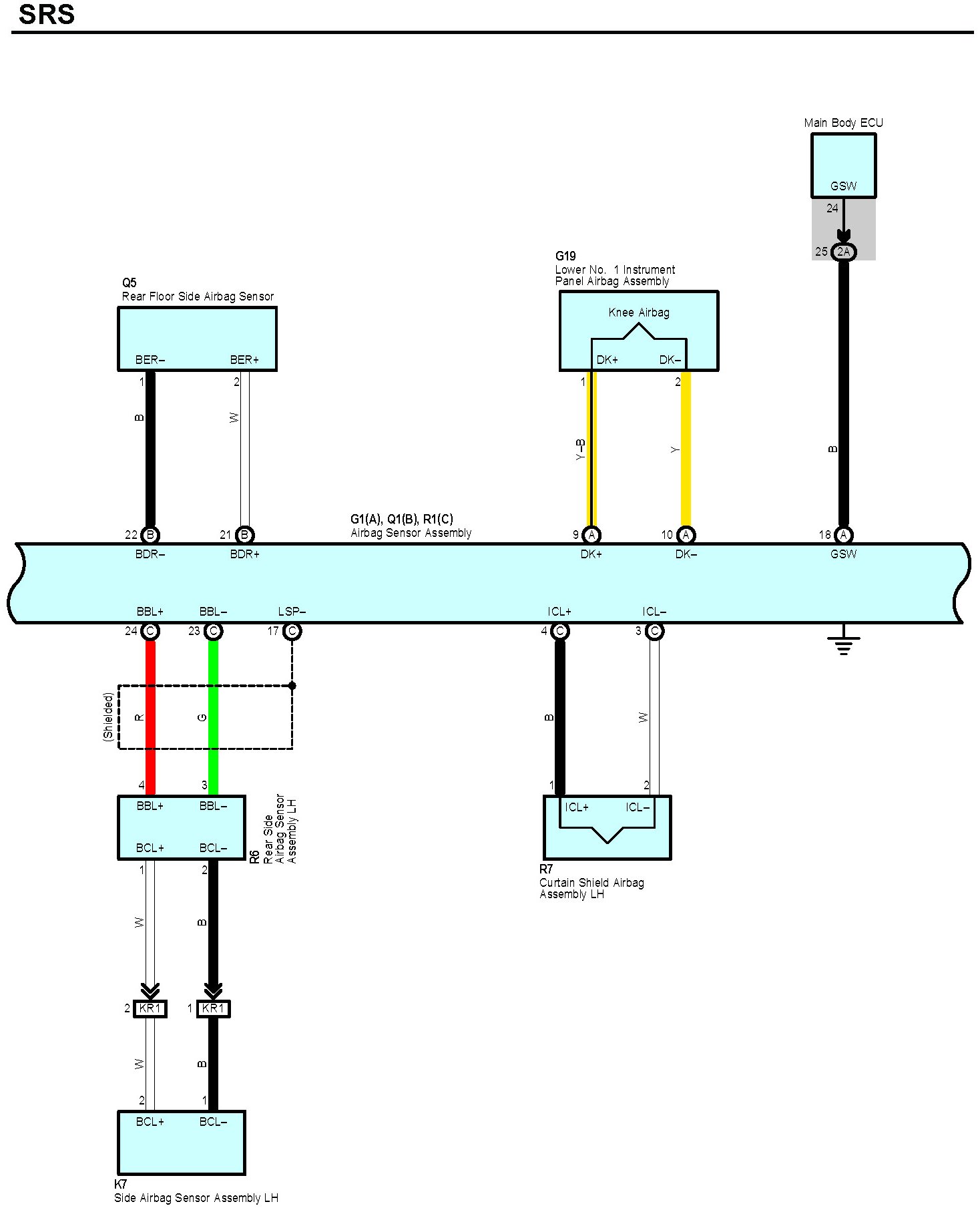

SRS Part 1:

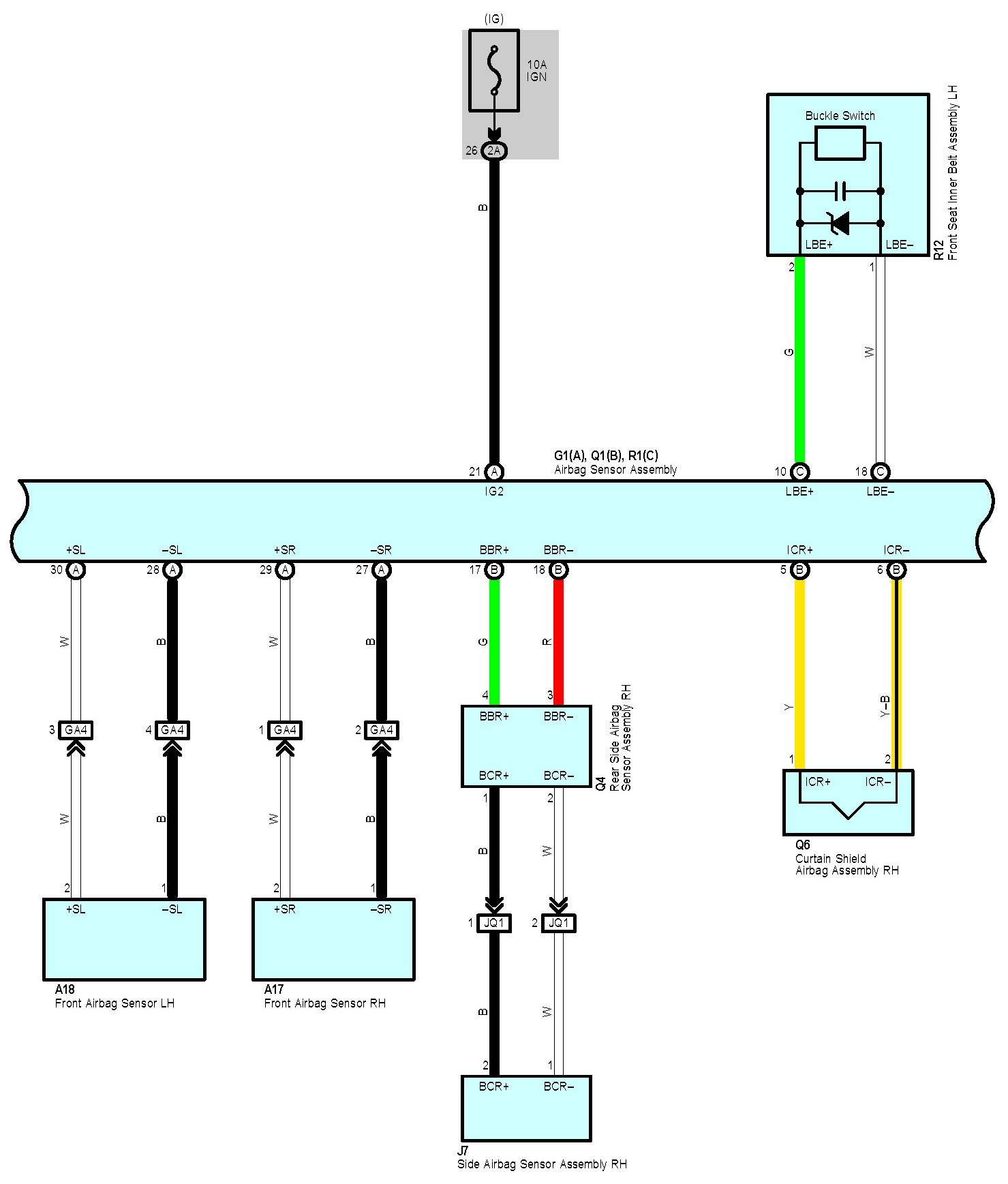

SRS Part 2:

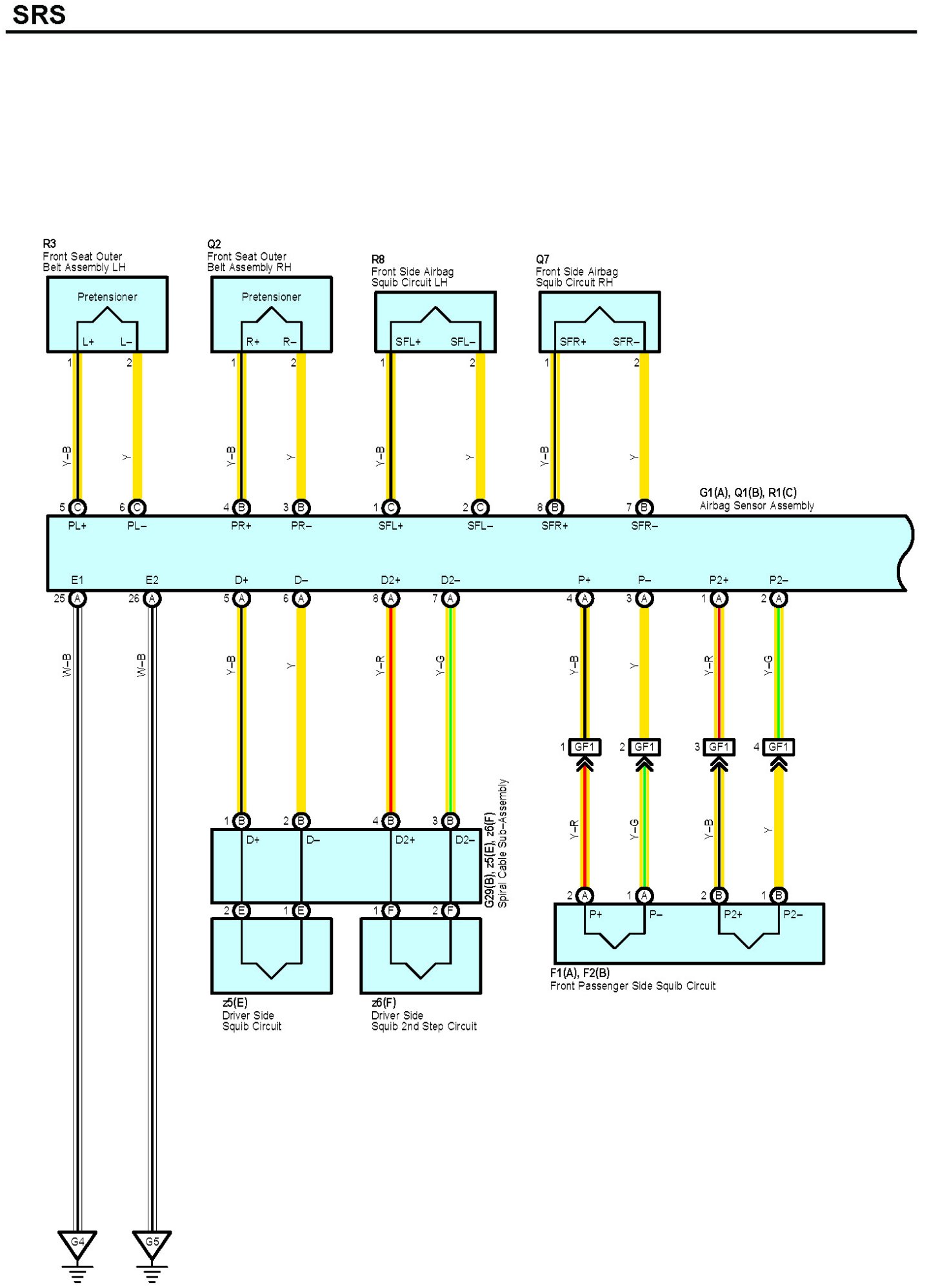

SRS Part 3:

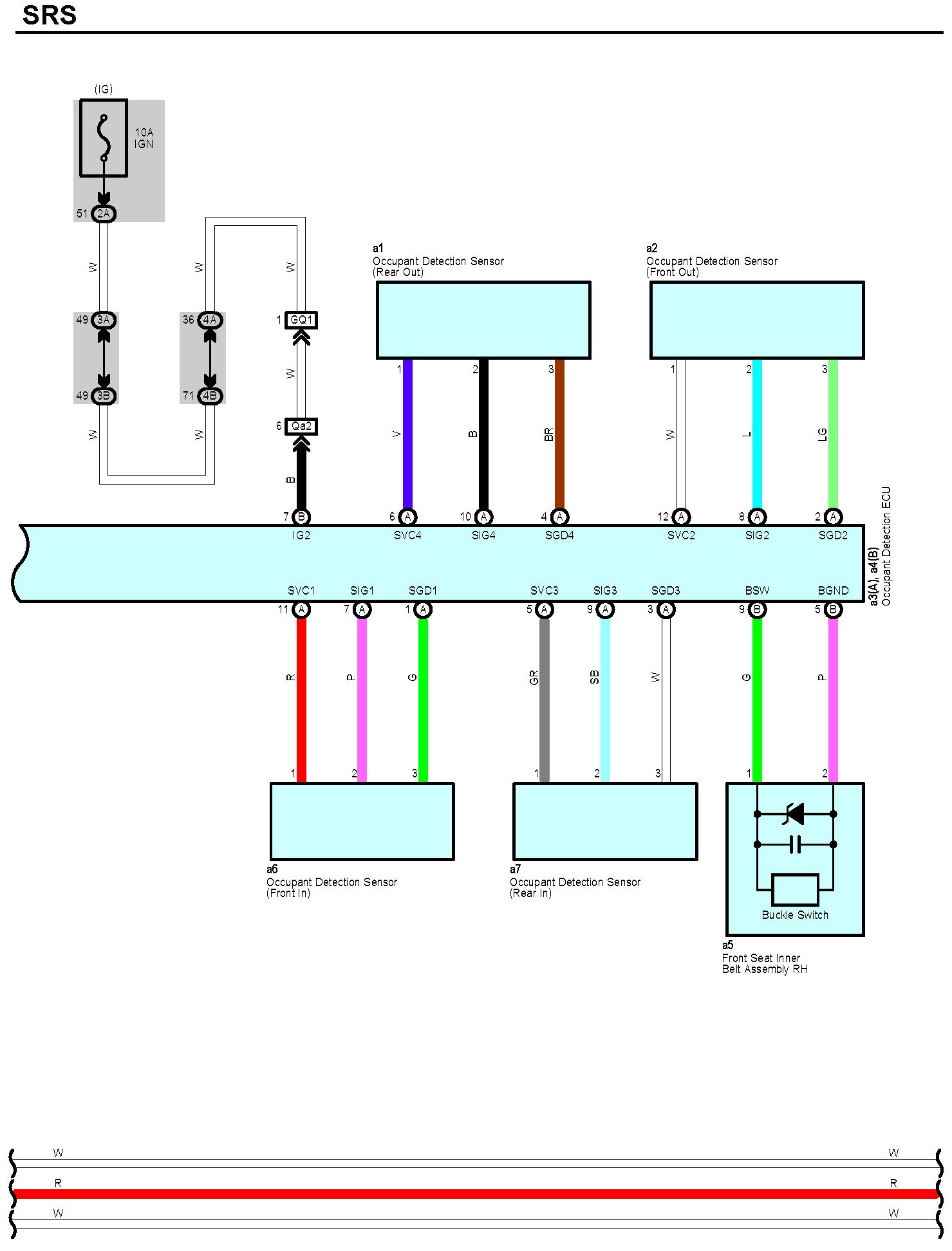

SRS Part 4:

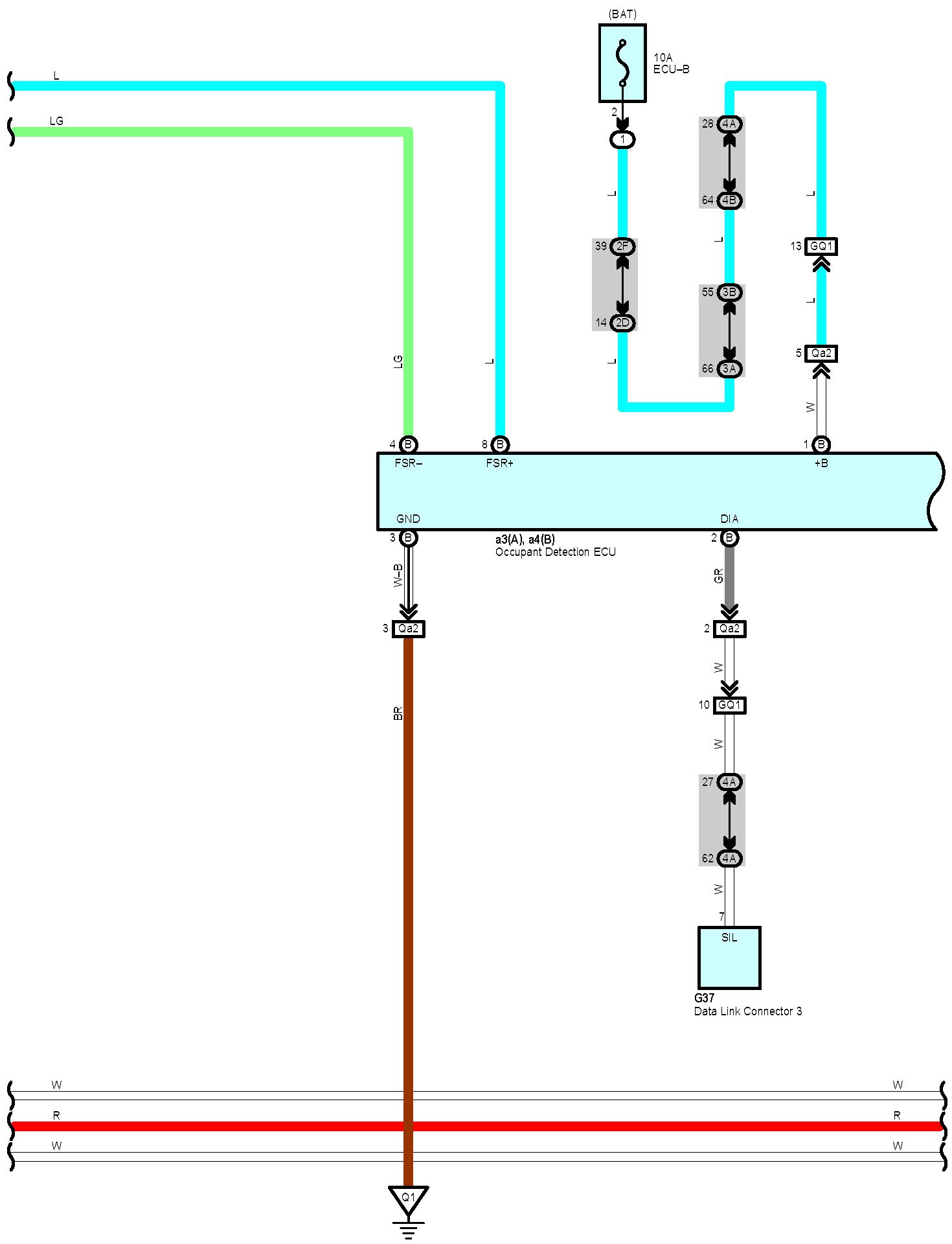

SRS Part 5:

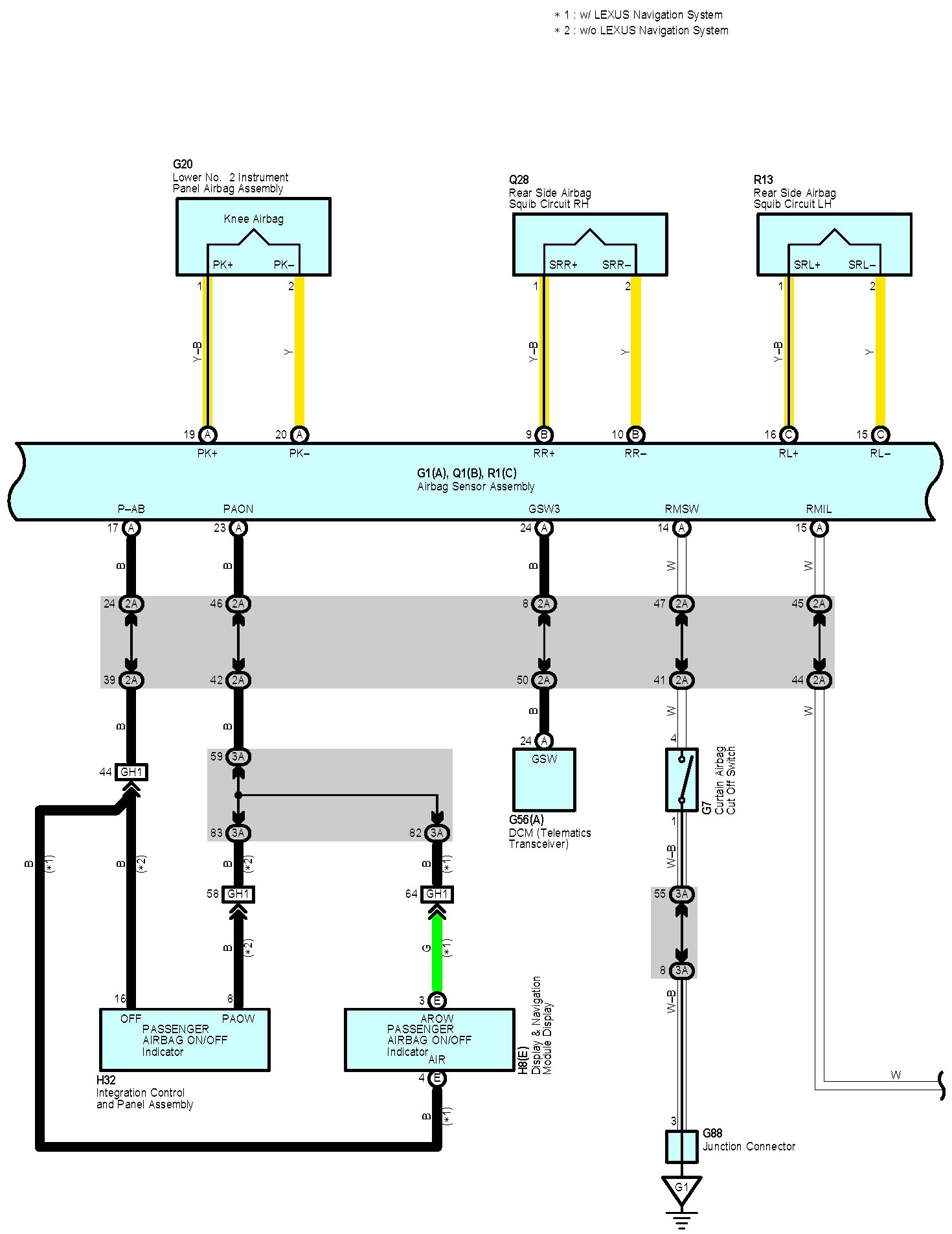

SRS Part 6:

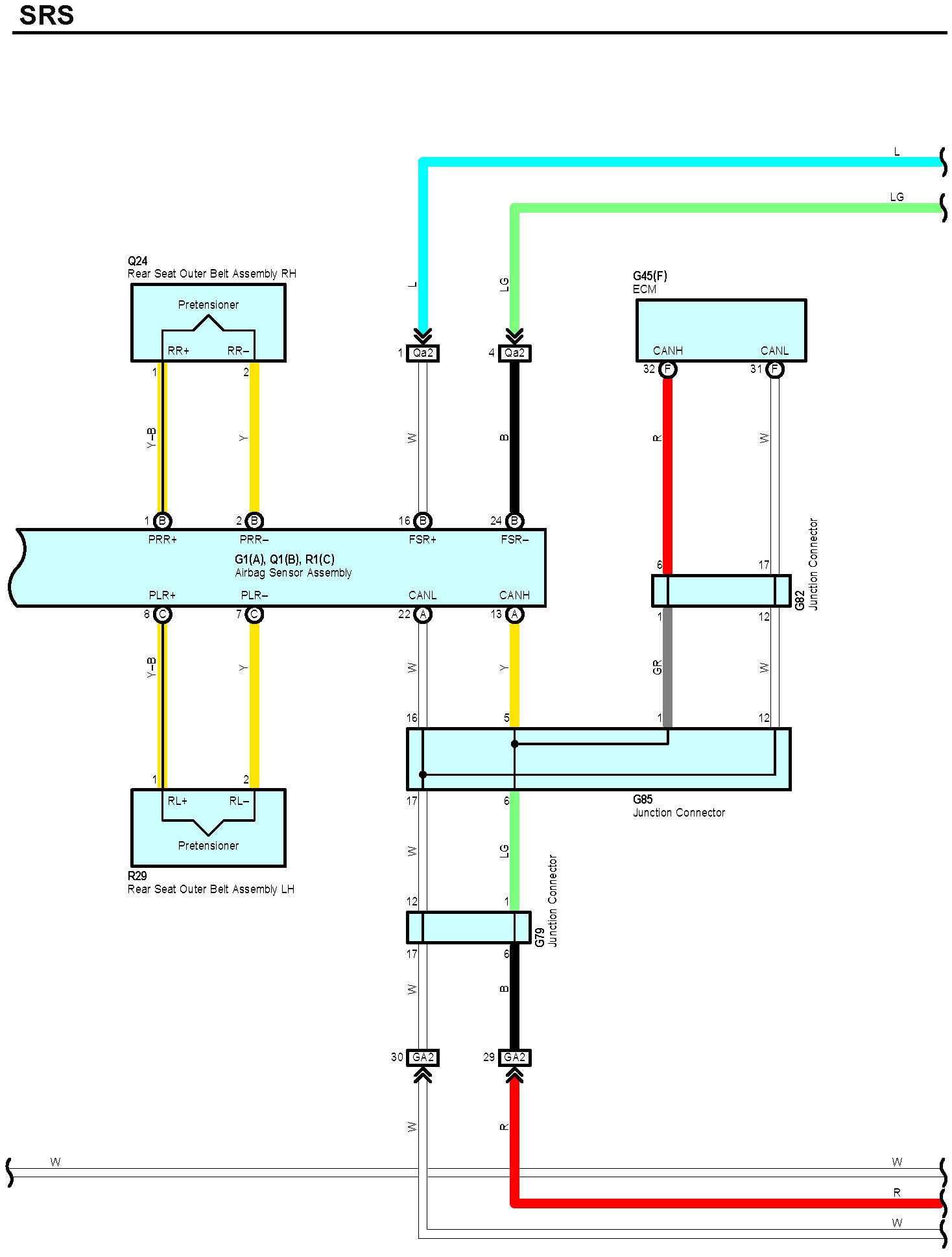

SRS Part 7:

SRS Part 8:

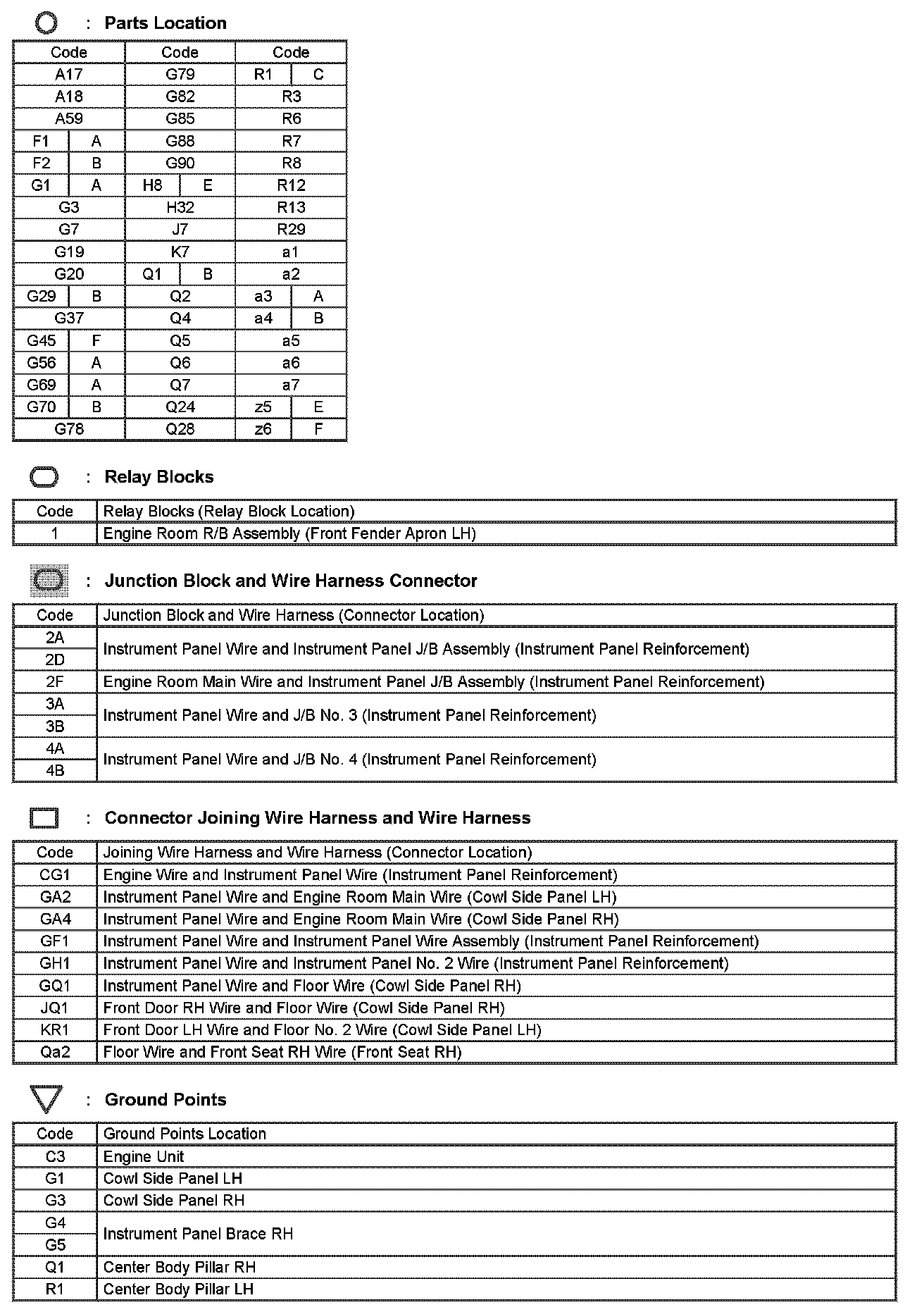

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
