Brake Fluid Pump Relay: Testing and Inspection

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: RELAY: ON-VEHICLE INSPECTION

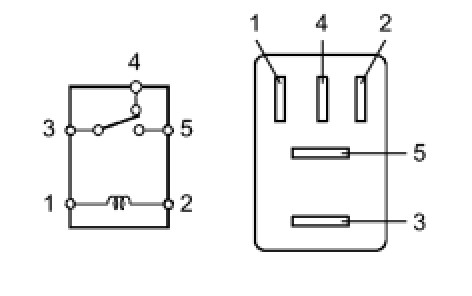

1. CHECK STOP LIGHT CONTROL RELAY (STOP LP)

(a) Remove the stop light control relay (STOP LP) from the engine room relay block.

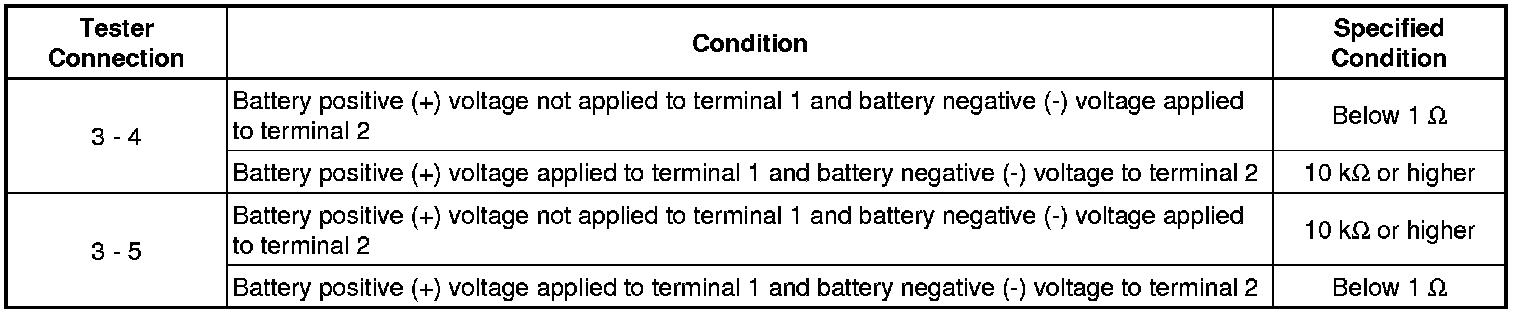

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the relay.

(c) Install the stop light control relay (STOP LP).
