Inspection

BRAKE SYSTEM (OTHER): HYDRAULIC BRAKE BOOSTER: INSPECTION

1. INSPECT BRAKE BOOSTER PUMP ASSEMBLY

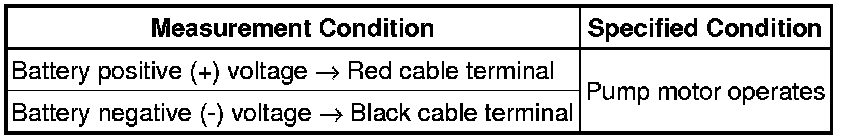

(a) Apply battery voltage to the brake booster pump cables, and check the operation of the pump motor.





OK::





Text in Illustration





If the result is not as specified, replace the brake booster pump assembly.
