Disposal

BRAKE SYSTEM (OTHER): HYDRAULIC BRAKE BOOSTER: DISPOSAL

1. DISPOSE OF BRAKE BOOSTER ACCUMULATOR ASSEMBLY

(a) Place the brake booster accumulator assembly in a vise and cover it with cloth.

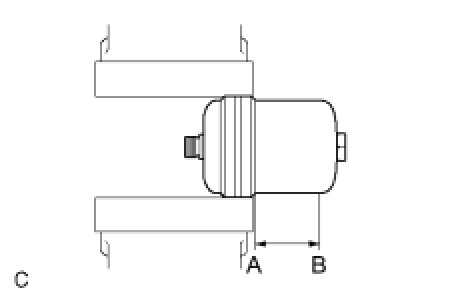

(b) Using a saw, cut the brake booster accumulator body between A and B as shown in the illustration to discharge the gas inside.

CAUTION:
* Cover the accumulator with a piece of cloth when working because gas may blow out.
* Cut the accumulator carefully, not abruptly.
* Wear protective glasses.
(c) When the outer body of the brake booster accumulator is cut, gas and liquid discharge.

HINT
The gas is colorless, odorless and non-poisonous.
