Home >> Lexus >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Power Brake Assist >> Hydraulic Brake Booster >> Service and Repair >> Removal and Replacement >> Components

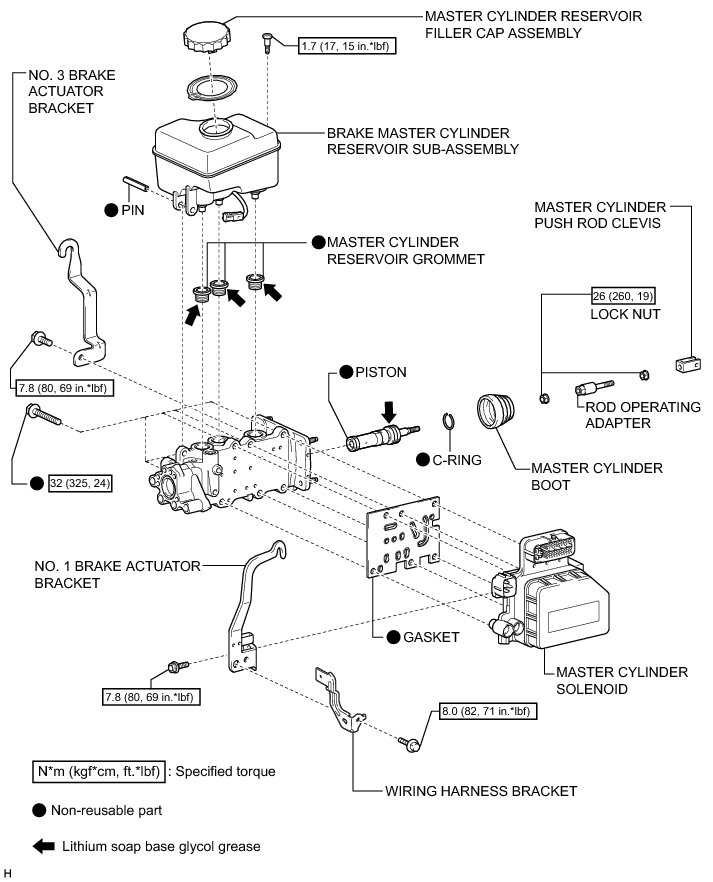

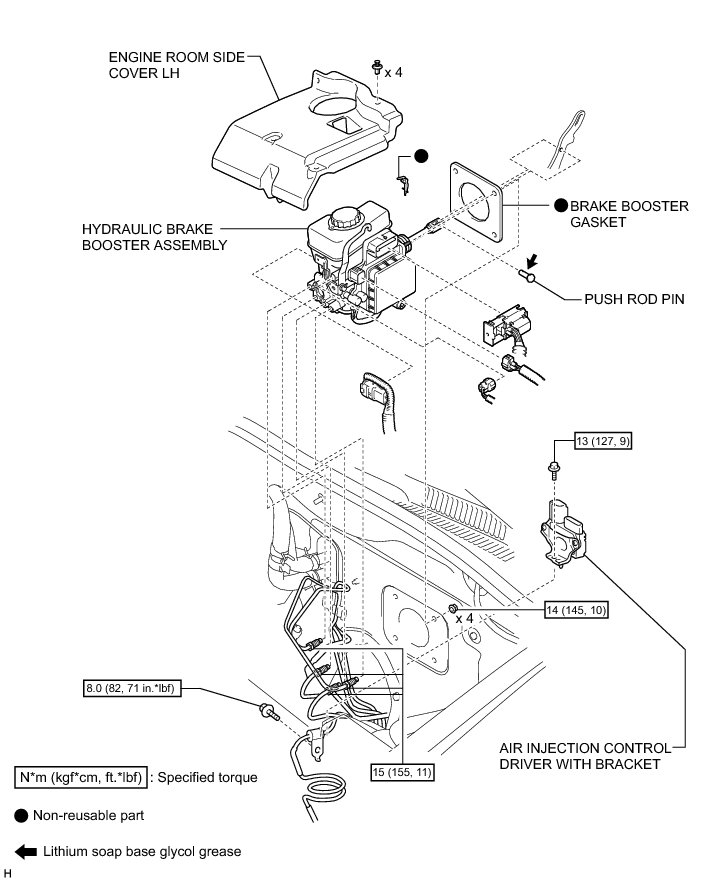

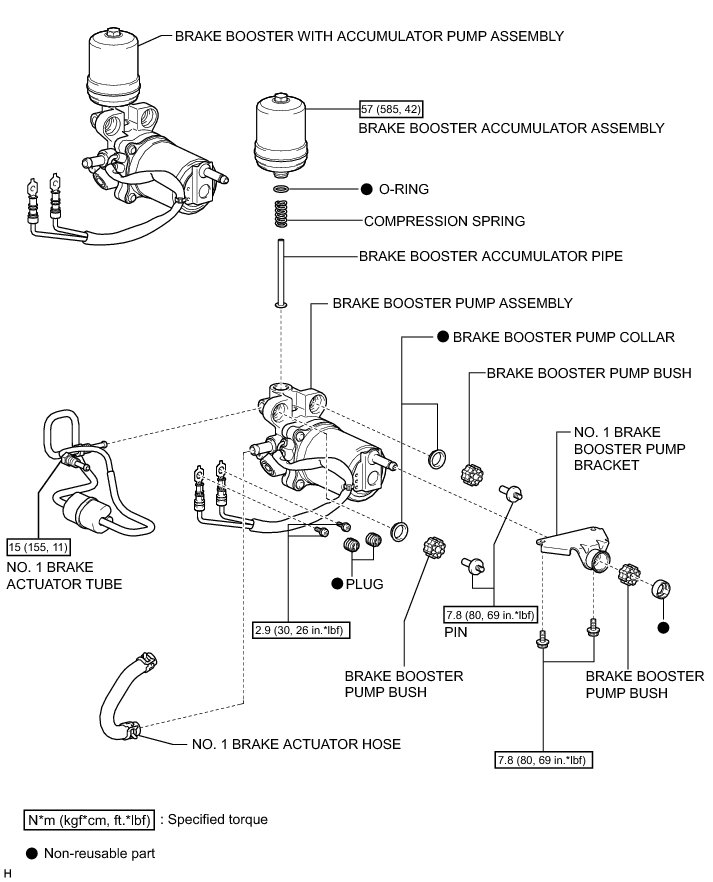

Components





BRAKE SYSTEM (OTHER): HYDRAULIC BRAKE BOOSTER: COMPONENTS
