Brake Hose/Line: Description and Operation

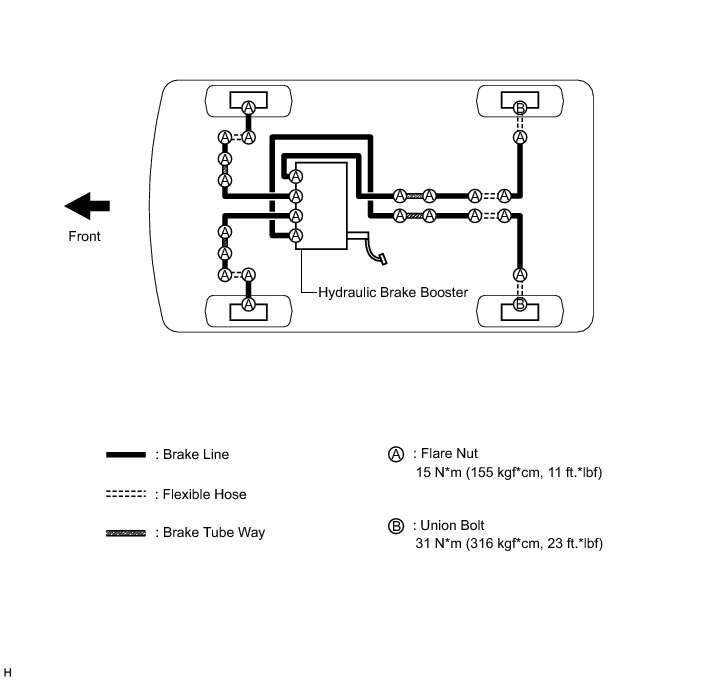

BRAKE SYSTEM (OTHER): BRAKE LINE: SYSTEM DIAGRAM

HINT
Refer to the diagram below to confirm the locations and tightening torque of the flexible hoses and brake tubes.
