Climate Control Seat System

SEAT: CLIMATE CONTROL SEAT SYSTEM: TERMINALS OF ECU

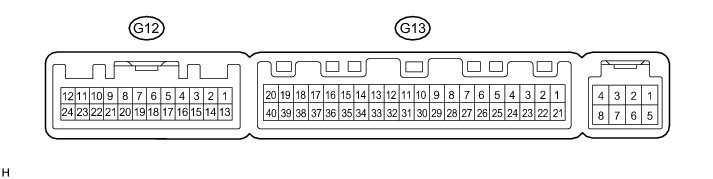

1. AIR CONDITIONING AMPLIFIER

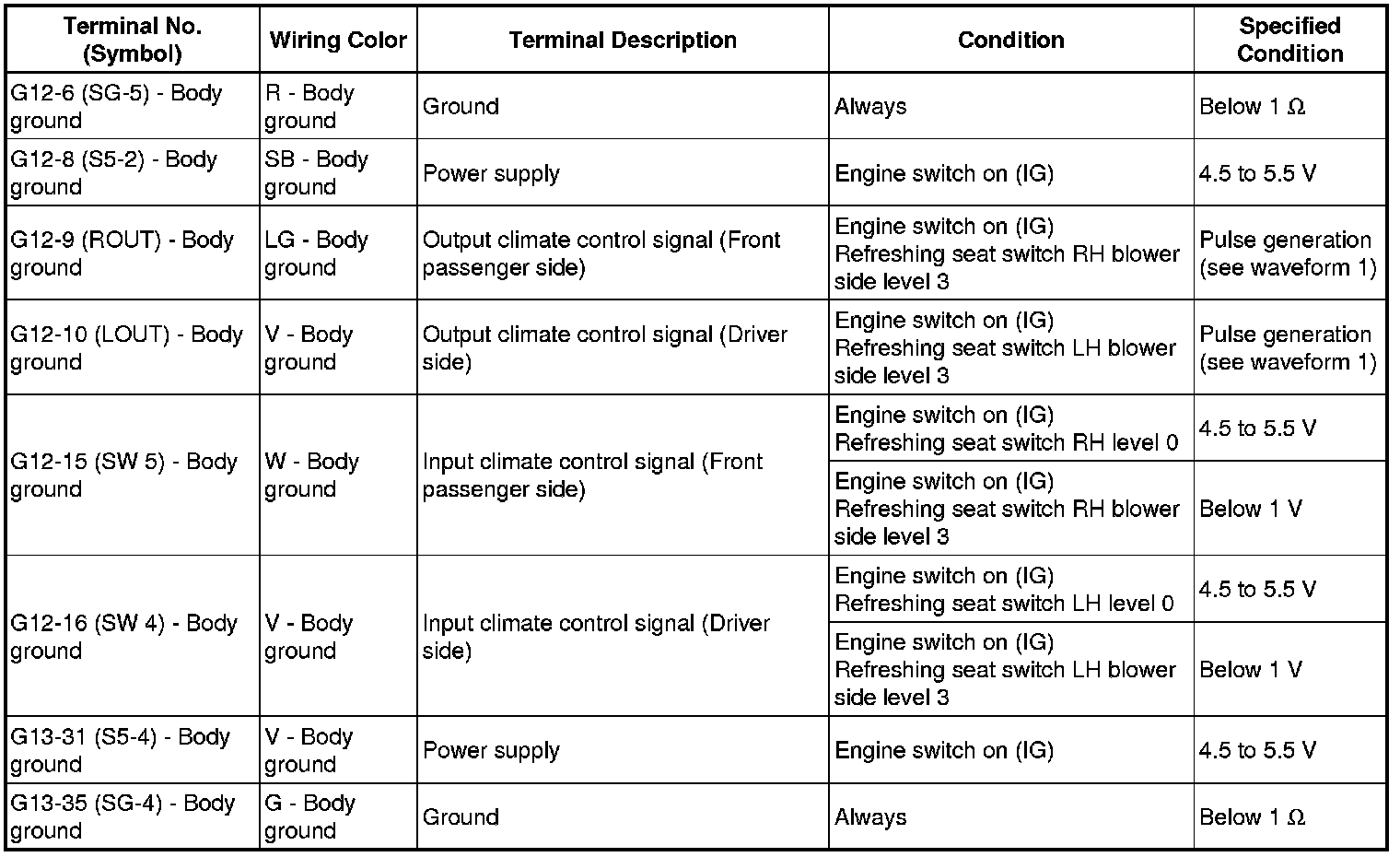

(a) Measure the voltage and resistance according to the value(s) in the table below.









If the result is not as specified, the air conditioning amplifier may have a malfunction.

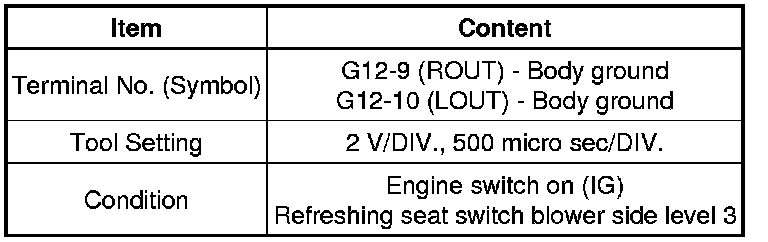

(1) Using an oscilloscope, check waveform 1.





Waveform 1 (Reference)
