SEAT: SEAT HEATER SWITCH (for Rear): ON-VEHICLE INSPECTION

1. REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

(a) Disconnect the No. 2 air conditioning control assembly connector.

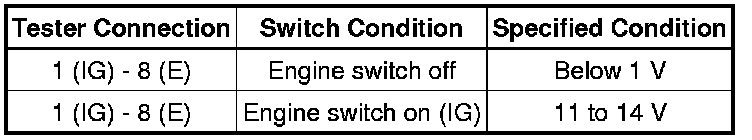

Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





If the result is not as specified, repair or replace the wire harness or connector.

(c) Connect the No. 2 air conditioning control assembly connector.

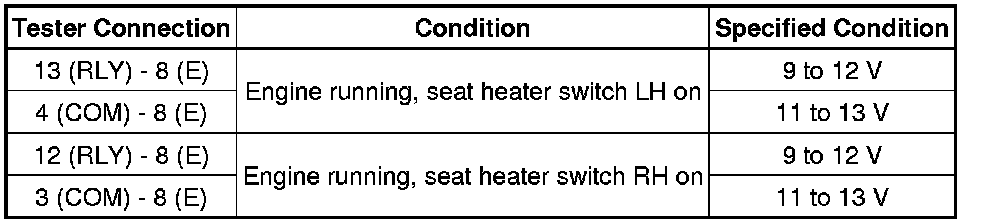

Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





If the result is not as specified, replace the No. 2 air conditioning control assembly.
