Front Seat Cushion Heater

SEAT: FRONT SEAT CUSHION HEATER: INSPECTION

1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH





(a) Check the seat cushion heater.

(1) Measure the resistance according to the value(s) in the table below.

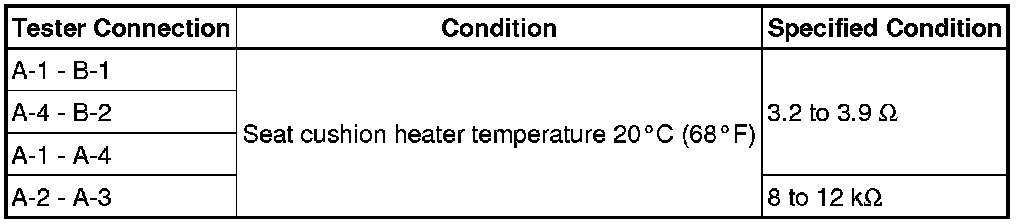

Standard Resistance:





If the result is not as specified, replace the seat cushion heater assembly.

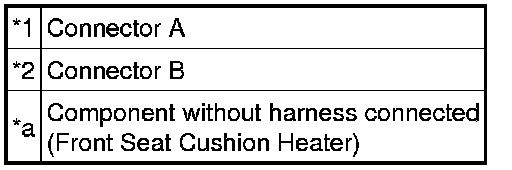

Text in Illustration





2. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH





(a) Check the seat cushion heater.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the seat cushion heater assembly.

Text in Illustration
