Lumbar Switch

SEAT: LUMBAR SWITCH: INSPECTION

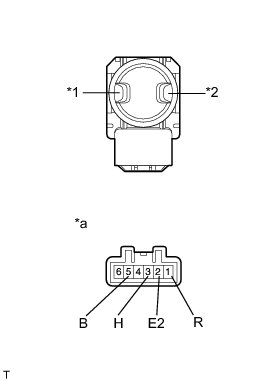

1. INSPECT LUMBAR SWITCH ASSEMBLY (for Driver Side)

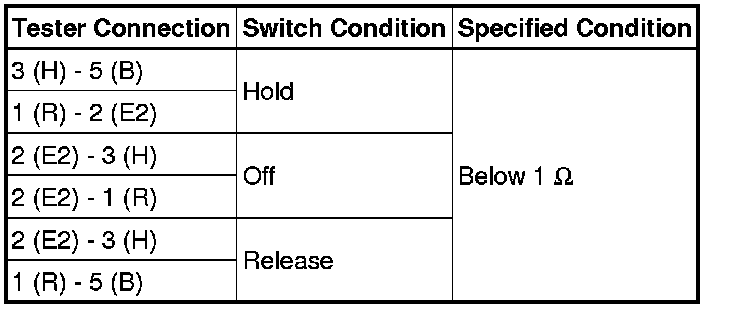

Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the lumbar switch.

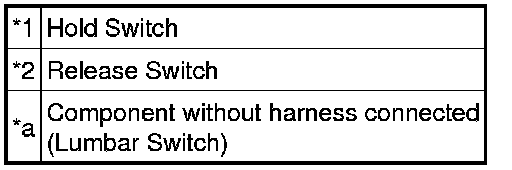

Text in Illustration

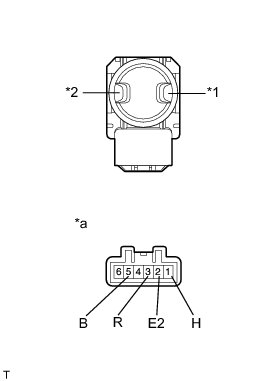

2. INSPECT LUMBAR SWITCH ASSEMBLY (for Front Passenger Side)

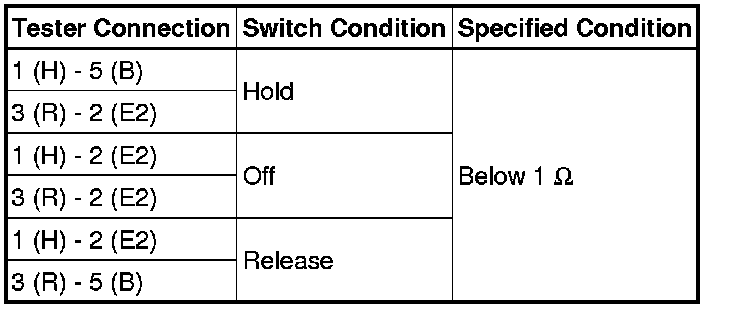

Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the lumbar switch.

Text in Illustration
