Rear Power Seat Control System

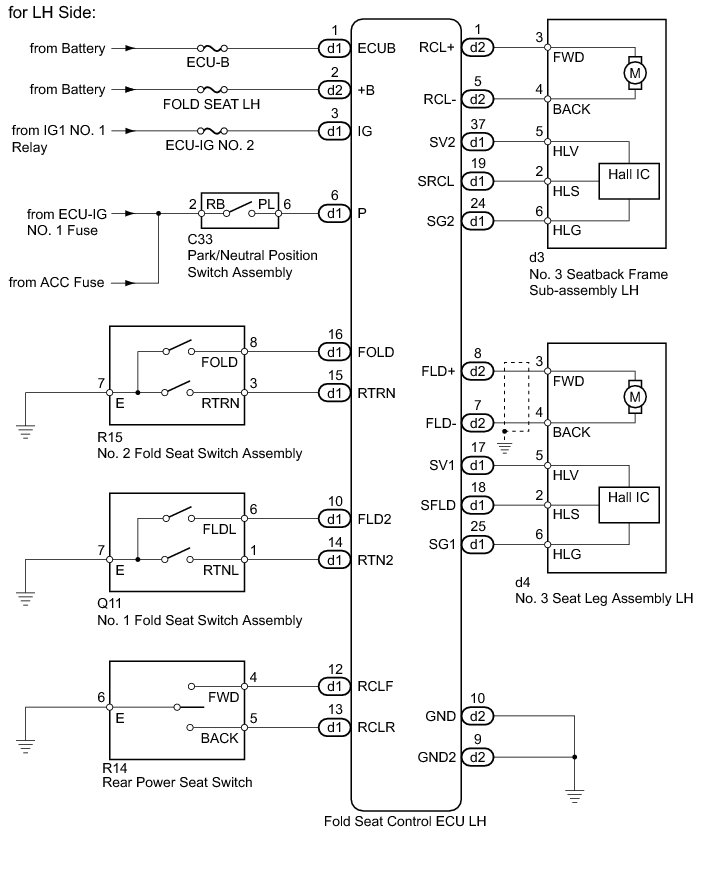

SEAT: REAR POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM













SYSTEM DESCRIPTION

1. REAR POWER SEAT CONTROL SYSTEM DESCRIPTION

The third-row seats are equipped with a power folding system.

This system has the following functions: reclining, luggage room expansion, folding and return, and jam protection.

Both the left and right seats are equipped with this system. Each system operates independently.

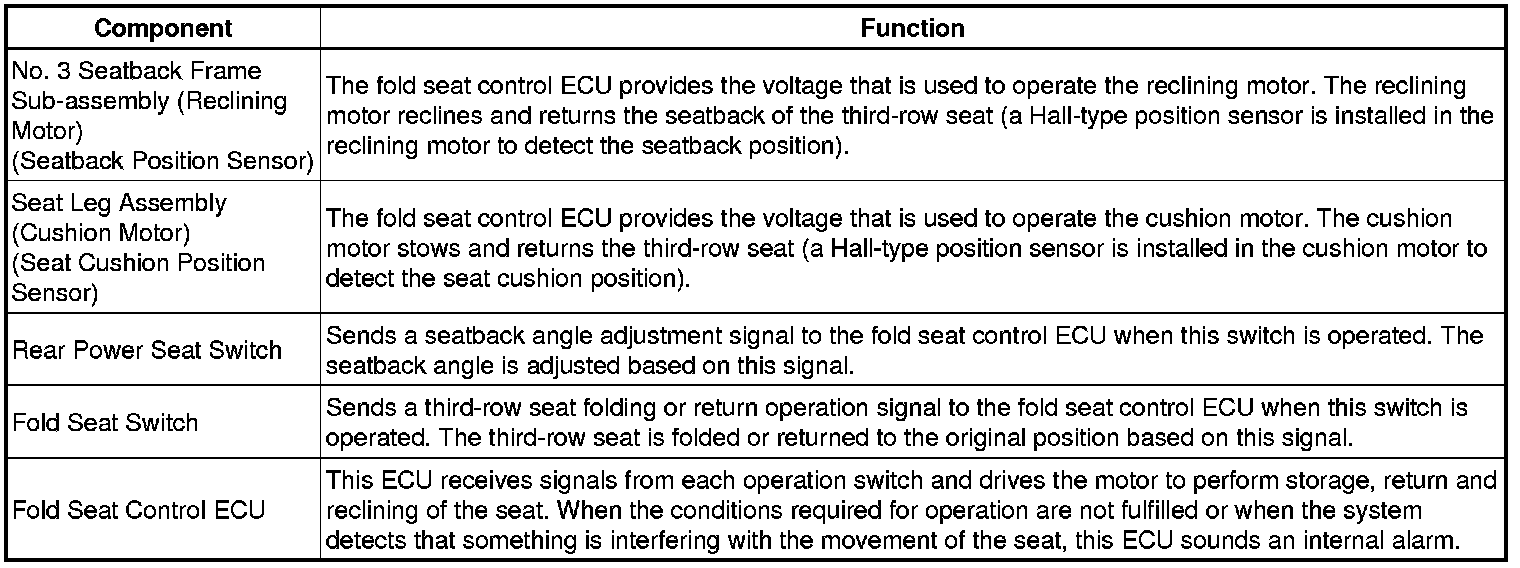

2. FUNCTIONS OF MAIN COMPONENTS
