Sunroof / Moonroof: Description and Operation

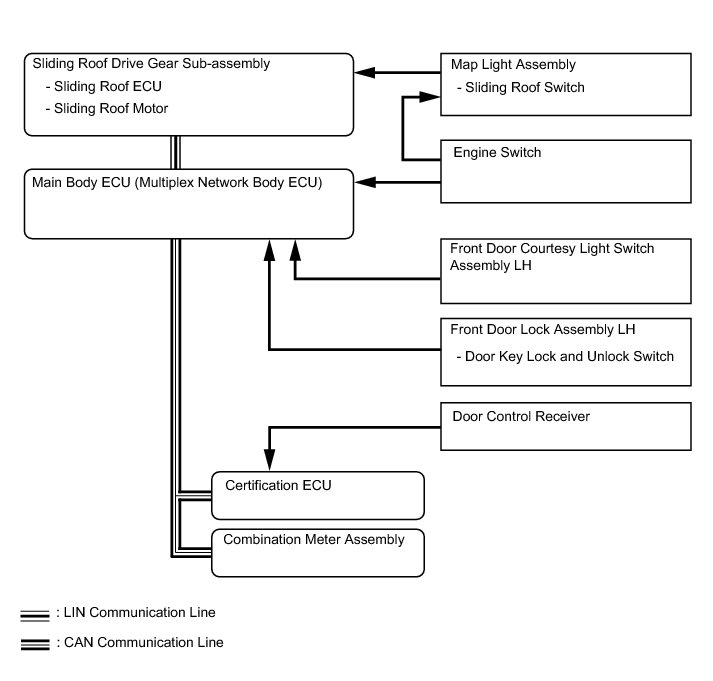

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: SYSTEM DIAGRAM

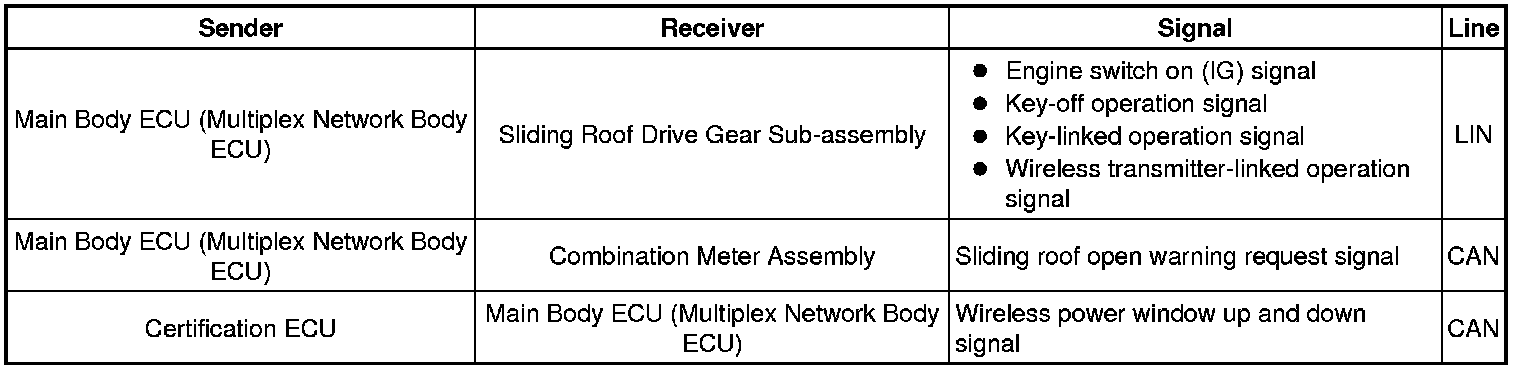

Communication Table










SYSTEM DESCRIPTION

1. GENERAL

This system has the following functions: manual slide open and close, auto slide open and close, manual tilt up and down, auto tilt up and down, jam protection, key off operation, key-linked operation and wireless transmitter-linked operation.

HINT
If the driver side door is opened with the engine switch off and the sliding roof open, the buzzer sounds.

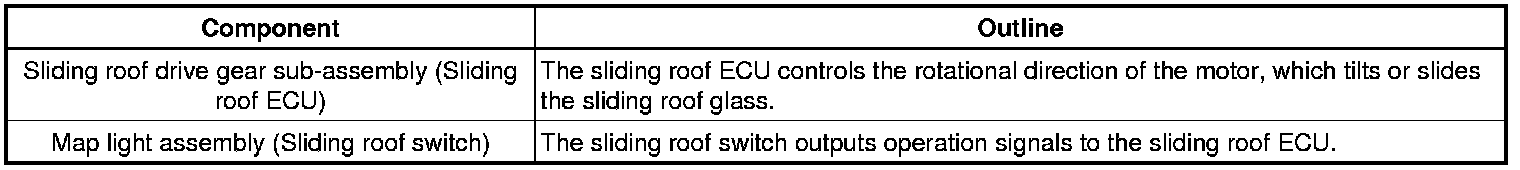

2. FUNCTION OF MAIN COMPONENT

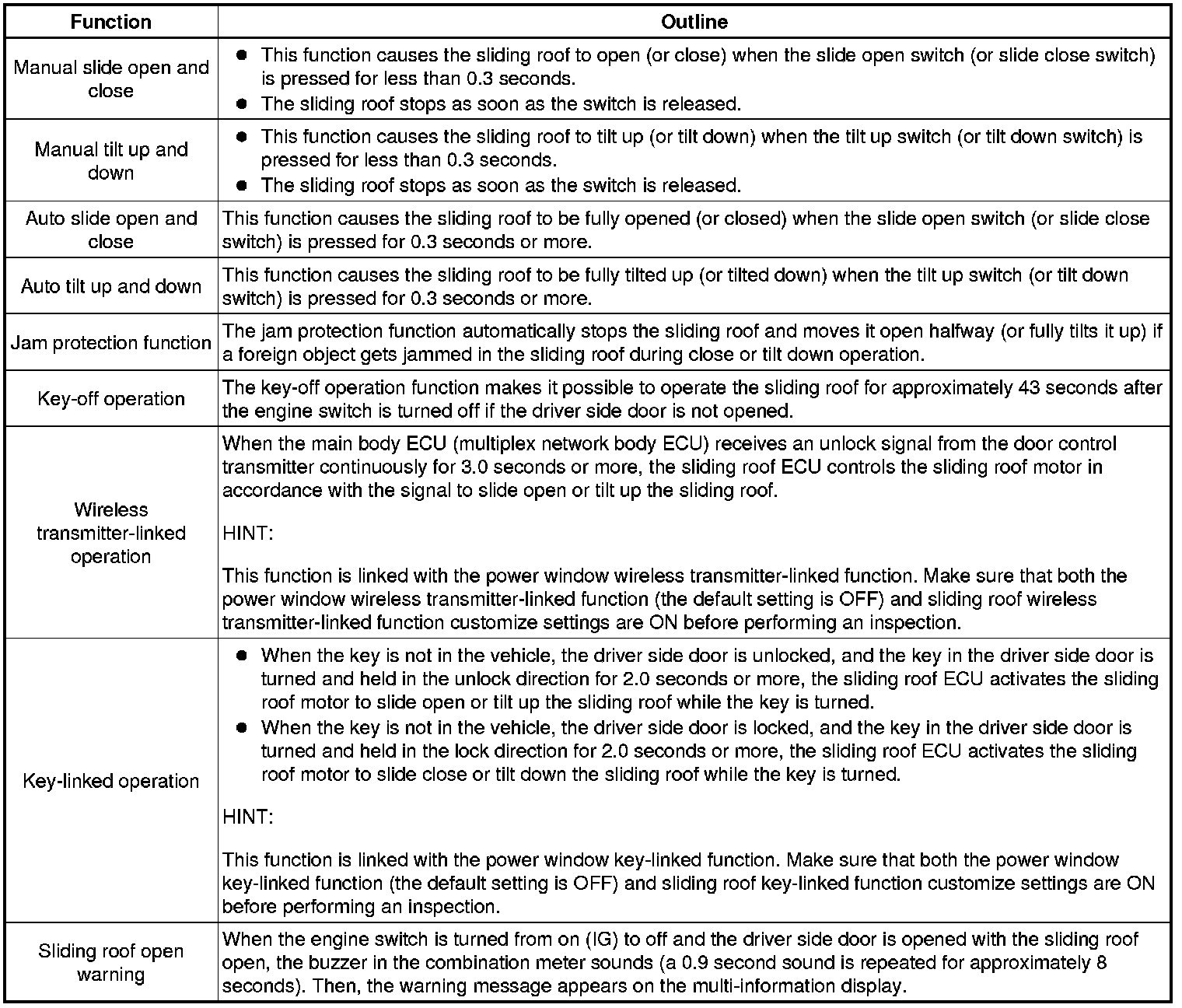

3. SYSTEM OPERATION

The sliding roof has the following features.
