Removal

MIRROR (EXT): OUTER REAR VIEW MIRROR: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH Disassembly

2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH Disassembly

3. REMOVE FRONT ARMREST ASSEMBLY LH Disassembly

4. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL Disassembly

5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side) Removal

6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

7. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP LH Disassembly

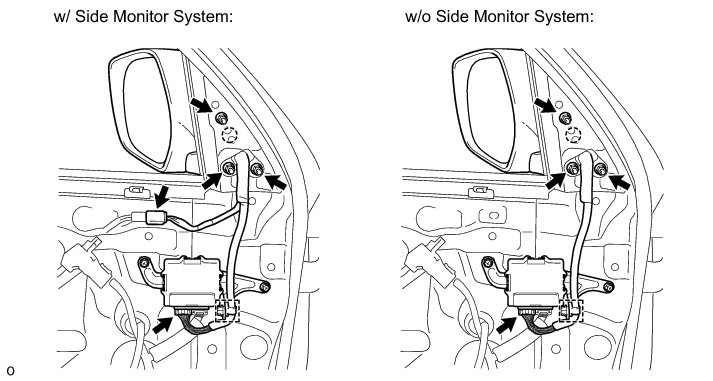

8. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH





(a) w/ Side Monitor System:

Disconnect the 2 connectors and detach the clamp.

(b) w/o Side Monitor System:

Disconnect the connector and detach the clamp.

(c) Remove the 3 nuts.

(d) Detach the claw and remove the outer rear view mirror.
