Removal

DOOR LOCK: REAR DOOR LOCK: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

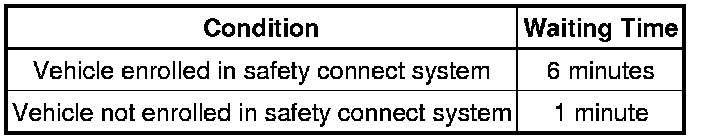

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH Disassembly

3. REMOVE REAR ARMREST ASSEMBLY LH Disassembly

4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR BASE PANEL Disassembly

5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

6. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH Disassembly

7. REMOVE REAR DOOR SERVICE HOLE COVER LH Disassembly

8. REMOVE REAR DOOR GLASS RUN LH Disassembly

9. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH Disassembly

10. REMOVE REAR DOOR QUARTER WINDOW GLASS LH Disassembly

11. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH Disassembly

12. REMOVE REAR DOOR LOCK ASSEMBLY LH

(a) Using a T30 "TORX" wrench, remove the 3 screws.





Text in Illustration





(b) Move the rear door lock assembly downward, pull the release plate out of the rear door outside handle frame, and remove the rear door lock assembly and cables as a unit.

(c) Remove the door lock wiring harness seal from the rear door lock assembly.

13. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH Disassembly

14. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY LH Disassembly
