Disassembly

INTERIOR PANELS / TRIM: ROOF HEADLINING: DISASSEMBLY

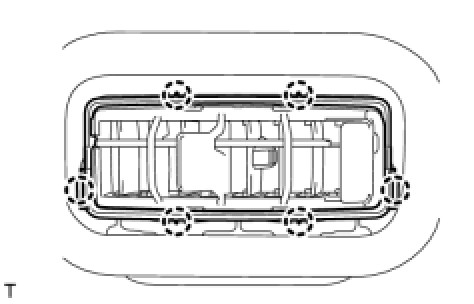

1. REMOVE ROOF SIDE AIR OUTLET REGISTER (w/ Rear Air Conditioning System)





HINT
Use the same procedure for all roof side air outlet registers.

(a) Detach the 6 claws and remove the roof side air outlet register.

2. REMOVE NO. 3 ROOF SILENCER PAD





(a) Remove the No. 3 roof silencer pad.

3. REMOVE VANITY LIGHT ASSEMBLY





HINT
Use the same procedure for the other vanity light.

(a) Detach the 2 claws labeled A and separate the bulb holder from the vanity light as shown in the illustration.

(b) Detach the claw labeled B and remove the vanity light.

Text in Illustration

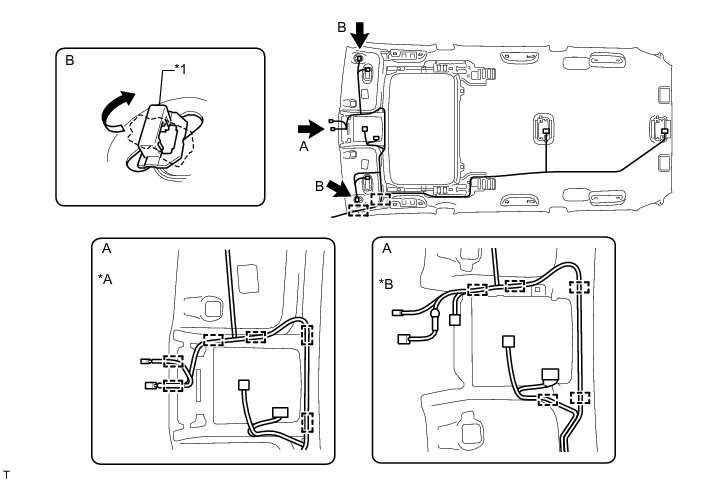

4. REMOVE NO. 1 ROOF WIRE

(a) Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.

(b) Detach each clamp and remove the No. 1 roof wire.

(c) Remove any butyl tape remaining on the roof headlining.





Text in Illustration





5. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY Removal
