Home >> Lexus >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Diagrams

Interior Moulding / Trim: Diagrams

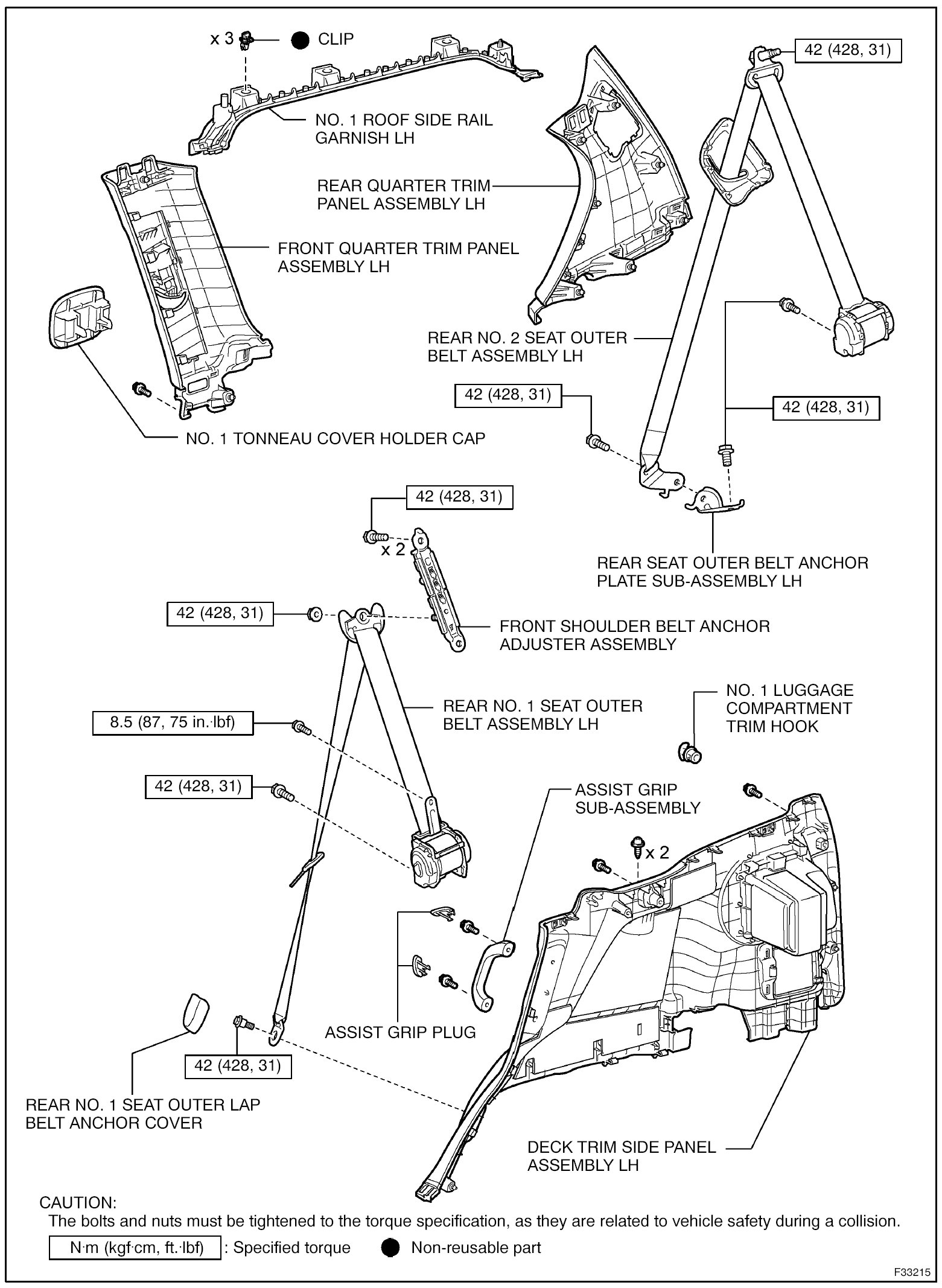

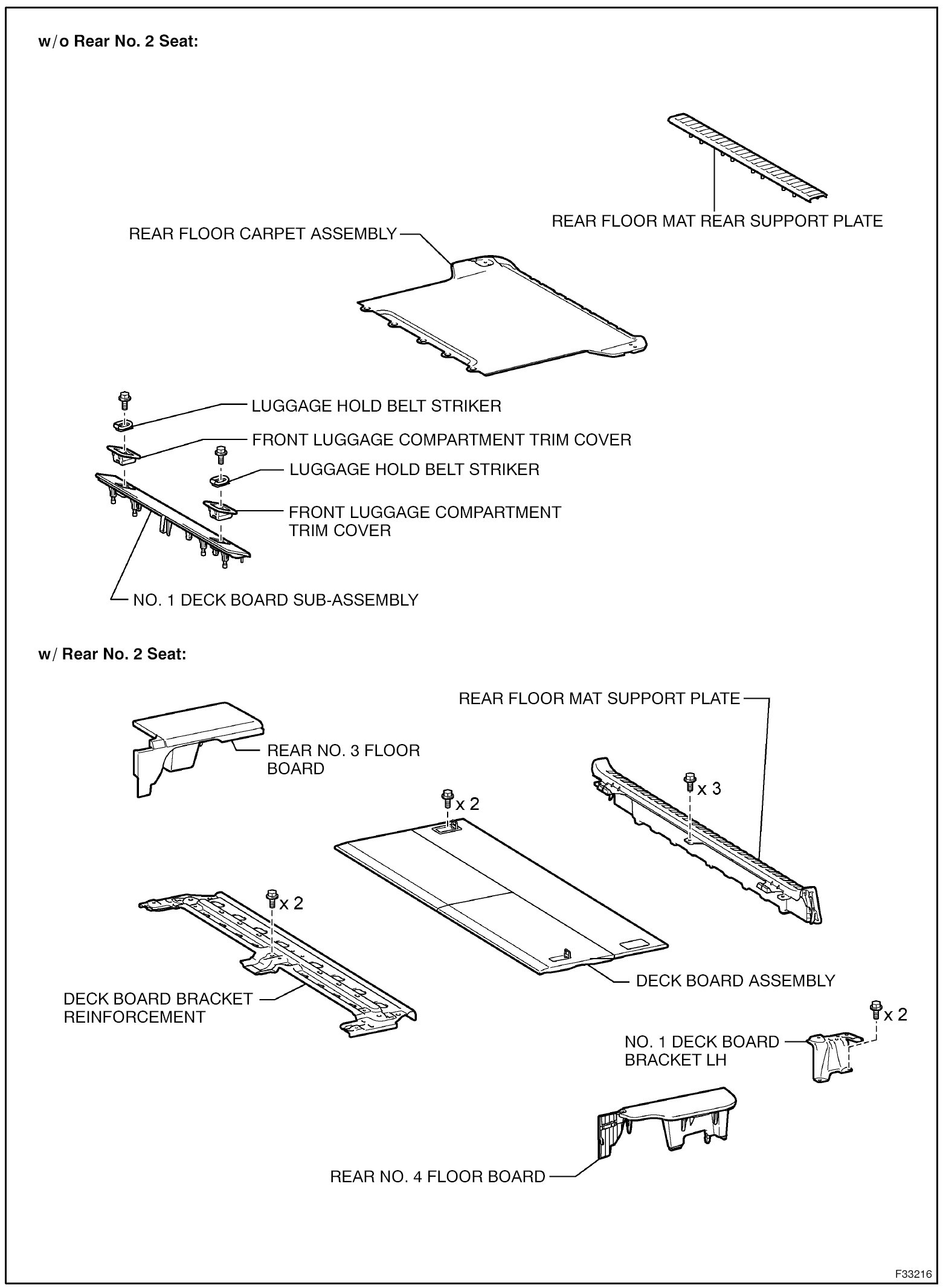

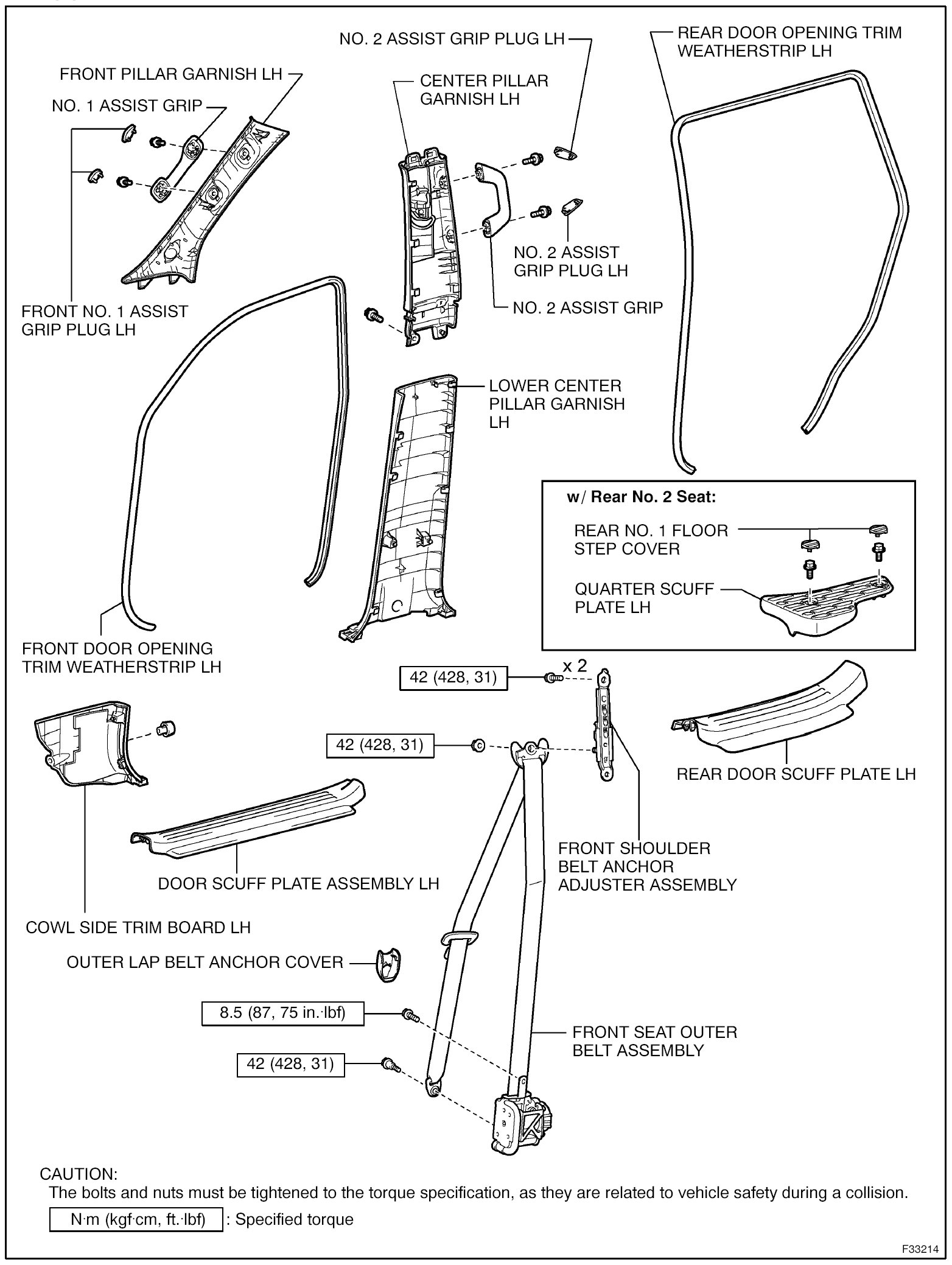

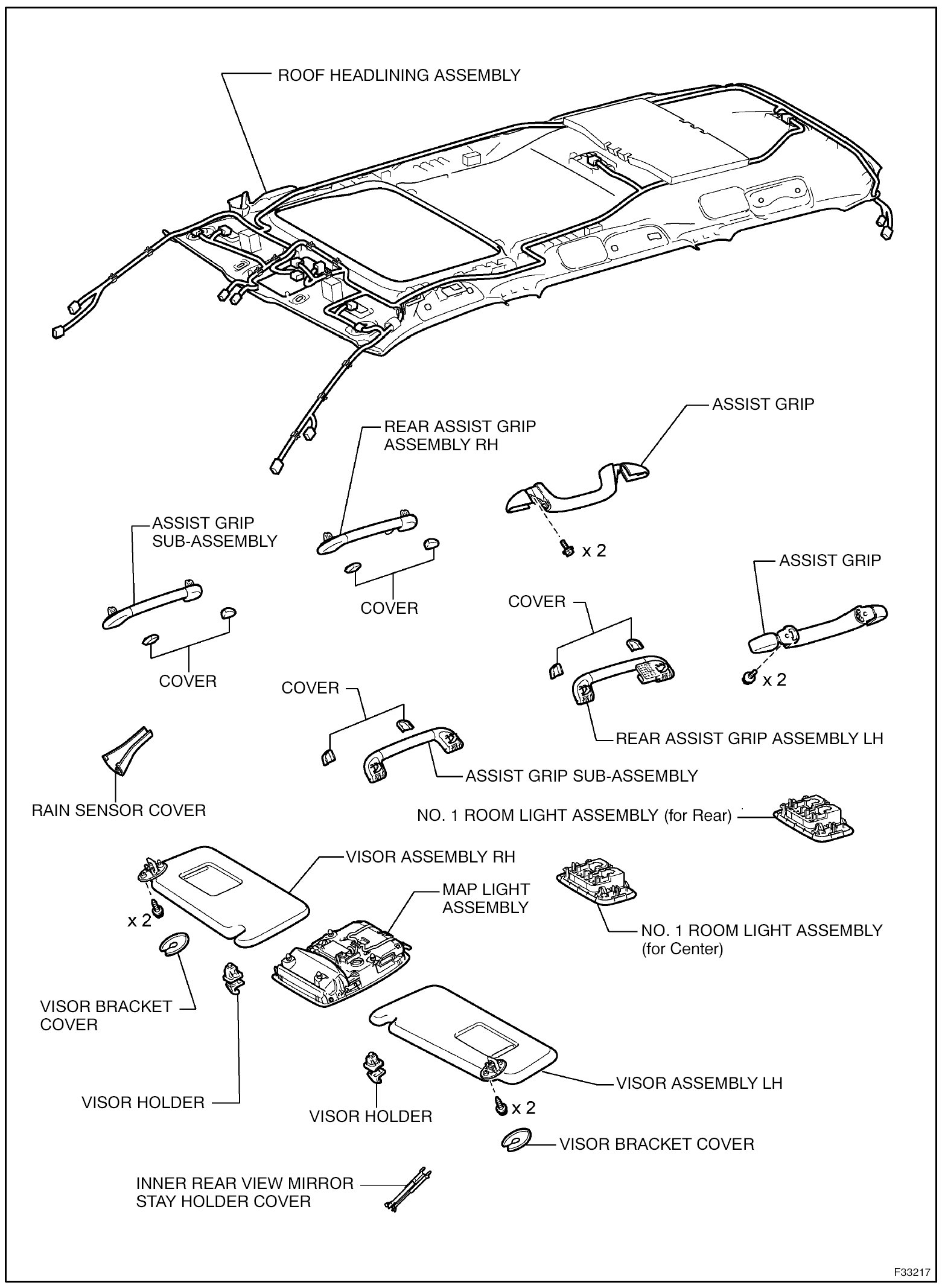

INTERIOR TRIM
