Trunk / Liftgate Switch: Testing and Inspection

WINDOW / GLASS: GLASS HATCH OPENER SWITCH: INSPECTION

1. INSPECT GLASS HATCH OPENER SWITCH ASSEMBLY

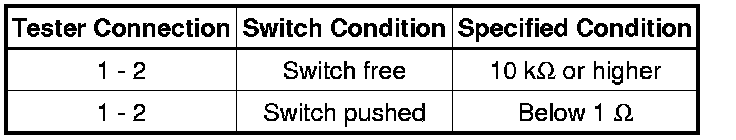

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the glass hatch opener switch assembly.

Text in Illustration
