Procedures

WINDOW / GLASS: BACK WINDOW STAY: DISPOSAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. DISPOSE OF BACK WINDOW STAY ASSEMBLY LH

(a) Horizontally secure the back window stay in a vise with the piston-rod pulled out.





(b) Wear safety glasses. Gradually cut an area between A and B shown in the illustration using a metal saw and gradually release the gas.

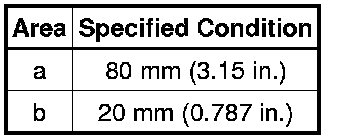

Standard:





CAUTION:
As metal debris may be blown outward by the gas, you must:

* Wear protective glasses.
* Cover the area being cut.
NOTICE:
The gas inside the back window stay is colorless, odorless and harmless. As there is a possibility that metal debris could scatter, cover the back window stay with a piece of cloth or other material.
