Back Window Lock

WINDOW / GLASS: BACK WINDOW LOCK: INSPECTION

1. INSPECT BACK WINDOW LOCK ASSEMBLY

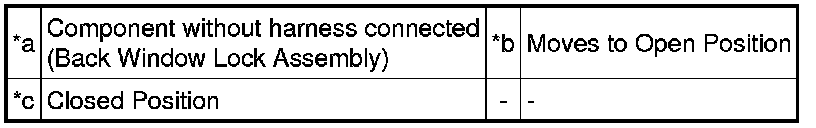

Text in Illustration

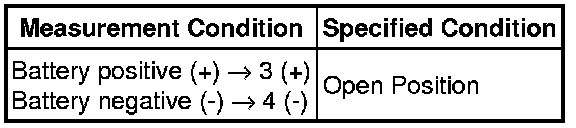

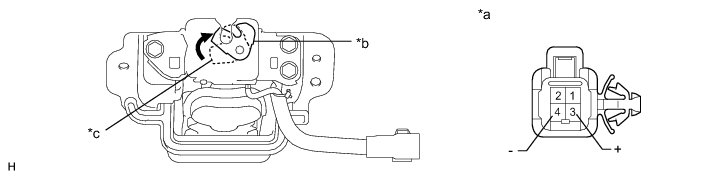

(a) Apply battery voltage to the back window lock motor and check the operation of the back window lock assembly.

OK:





If the result is not as specified, replace the back window lock assembly.

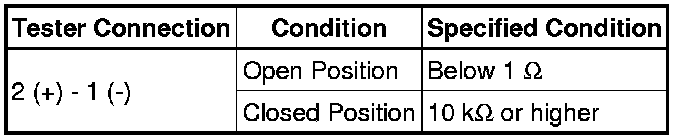

(b) Measure the resistance of the back window lock.

Standard Resistance:





If the result is not as specified, replace the back window lock assembly.
