Electrical Diagrams

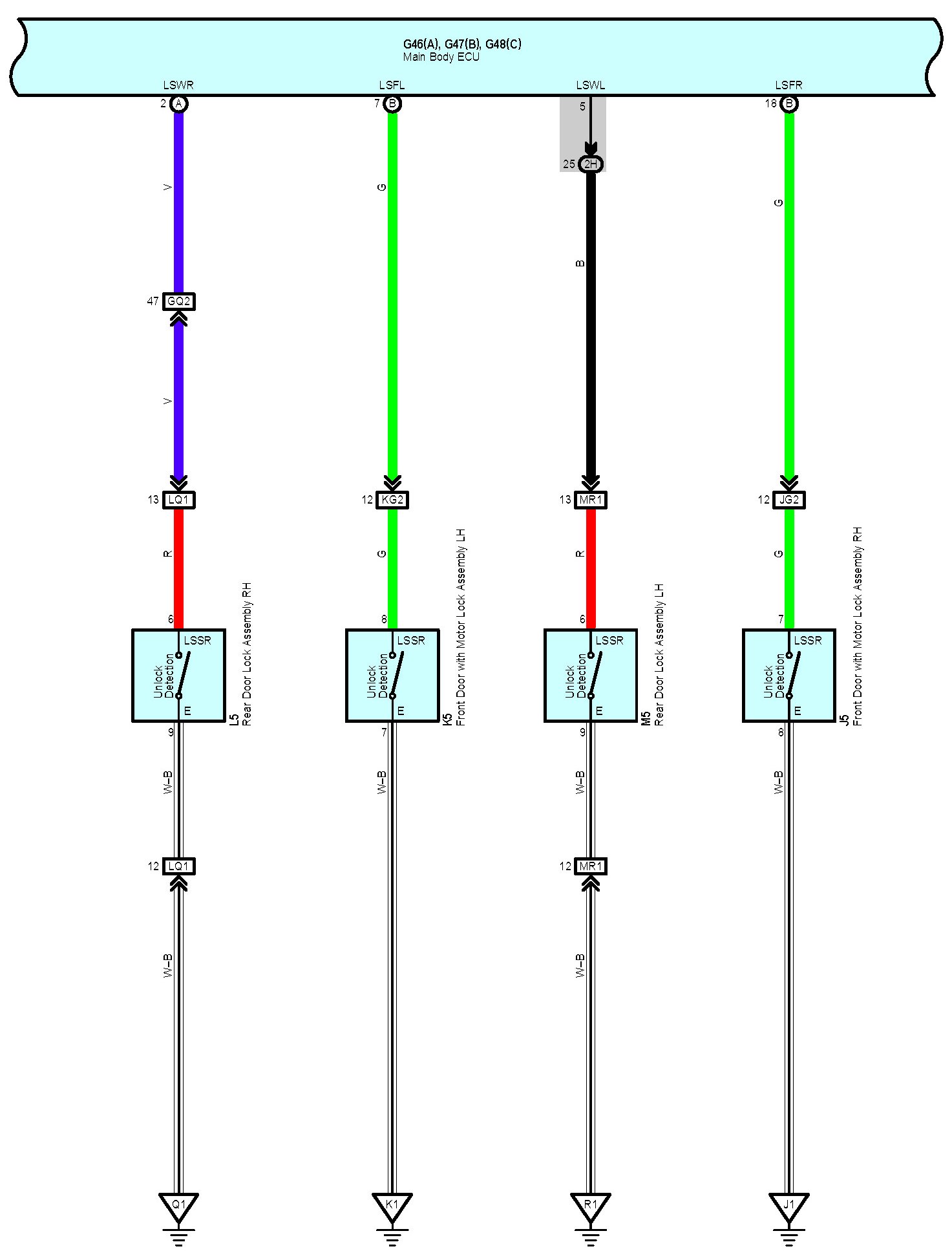

Glass Hatch Opener Part 1:

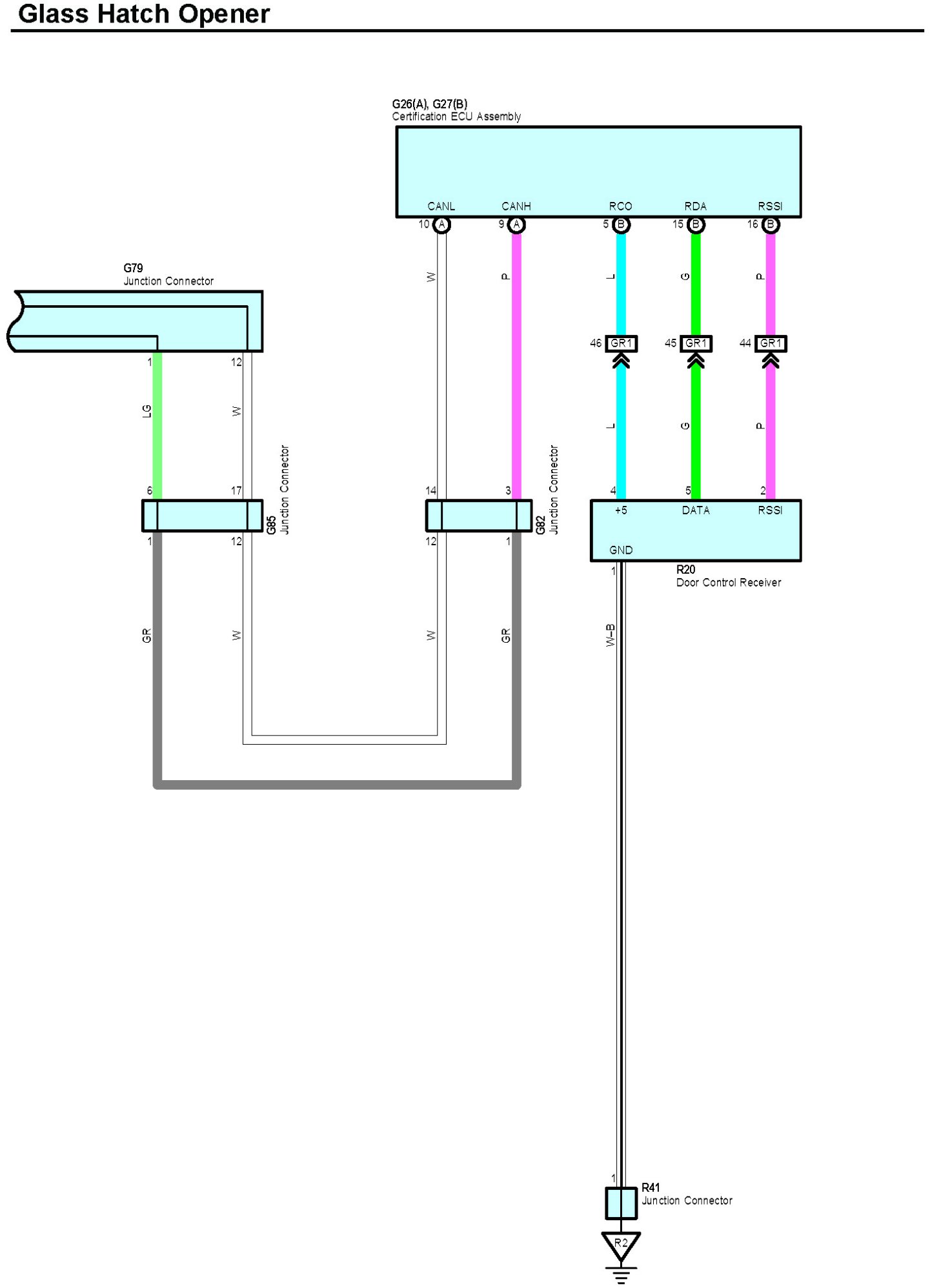

Glass Hatch Opener Part 2:

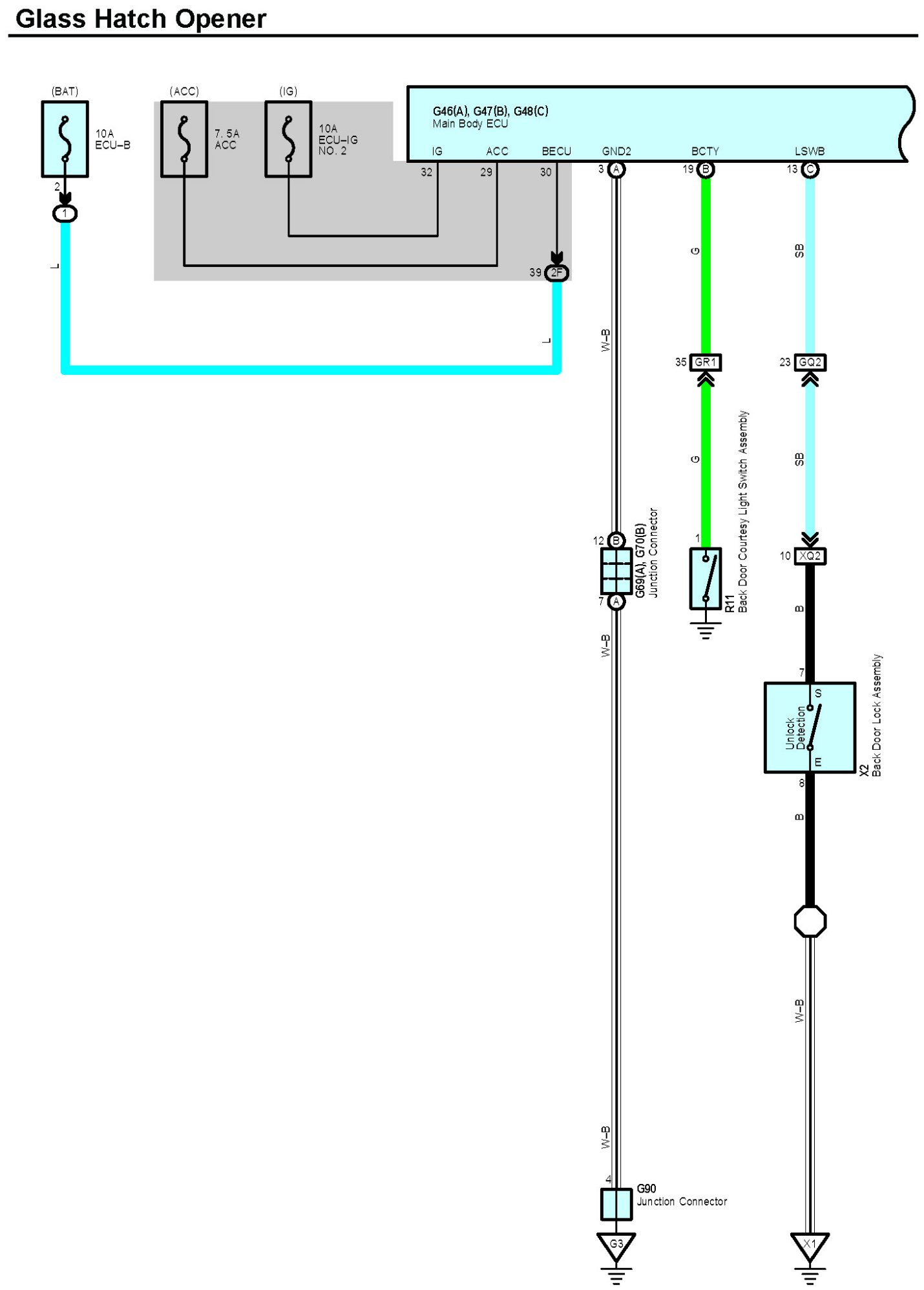

Glass Hatch Opener Part 3:

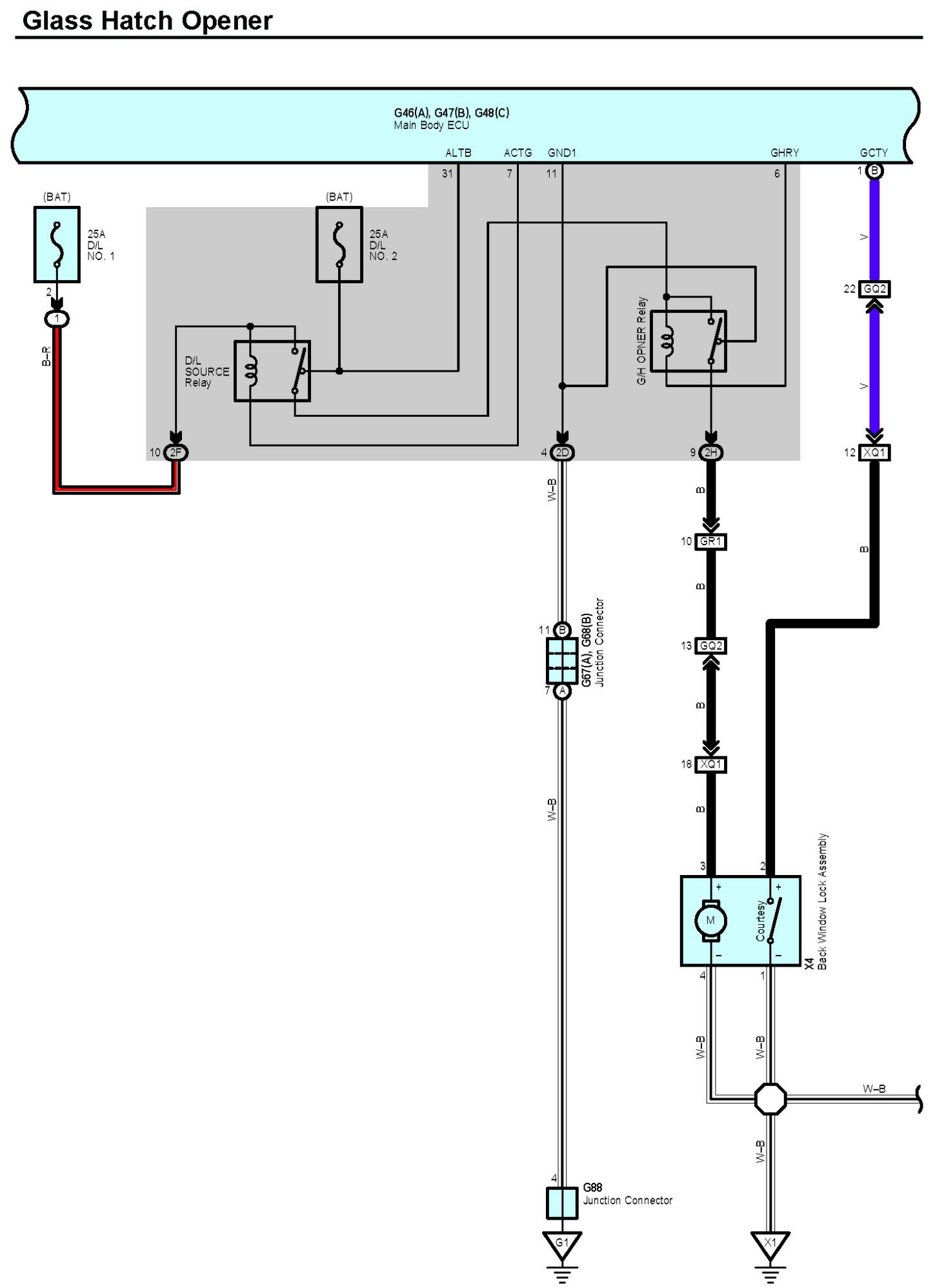

Glass Hatch Opener Part 4:

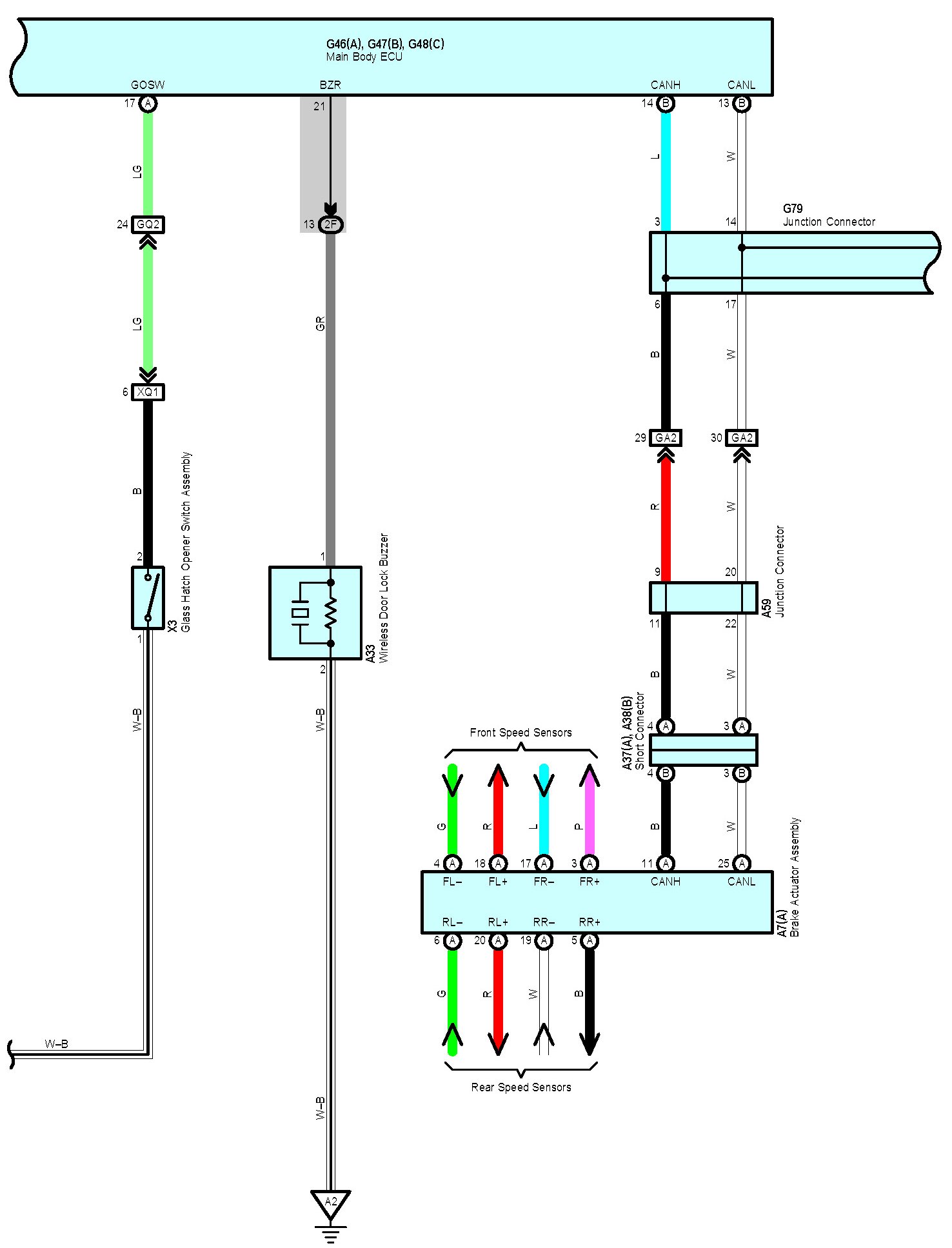

Glass Hatch Opener Part 5:

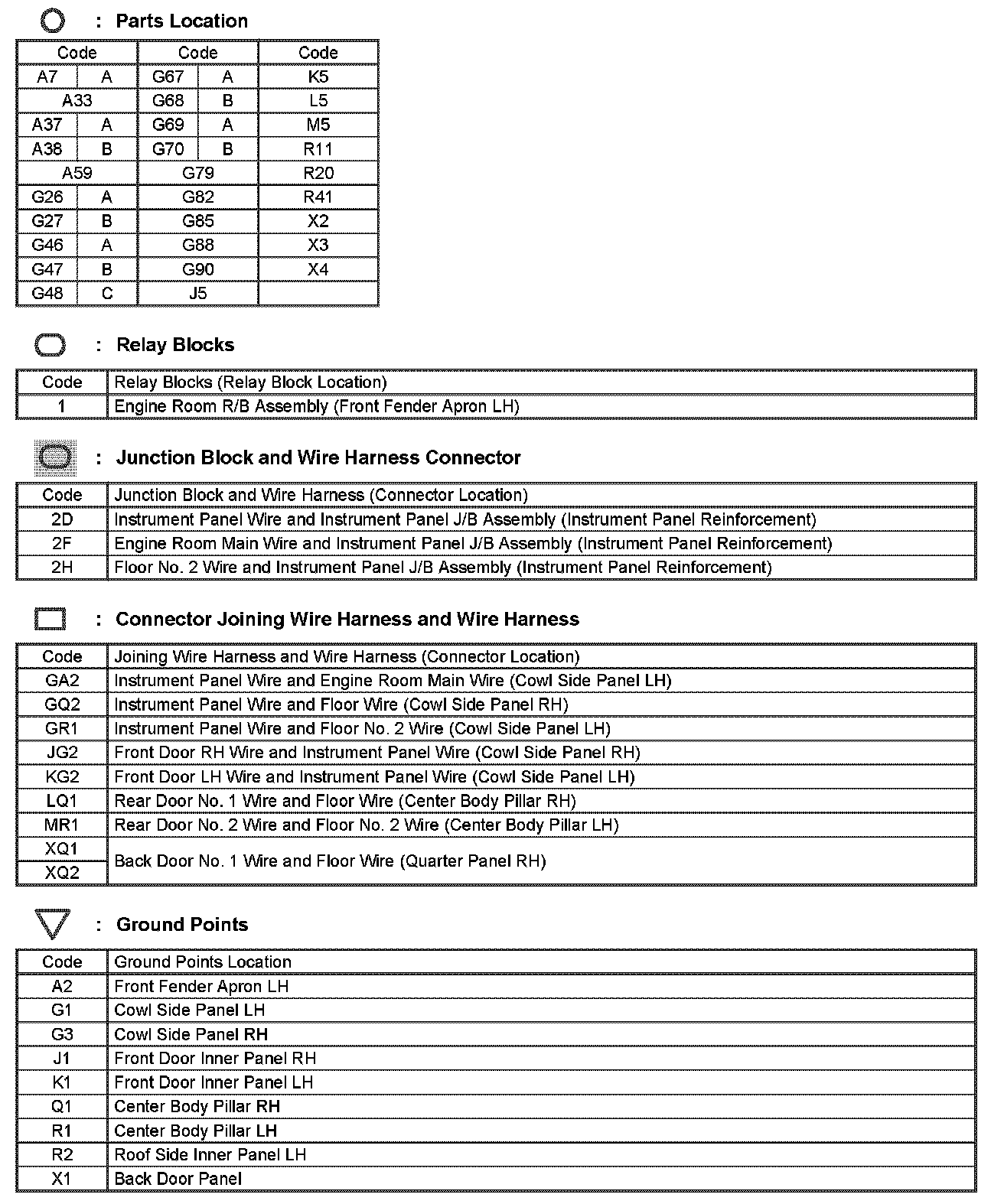

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
