Trunk / Liftgate: Description and Operation

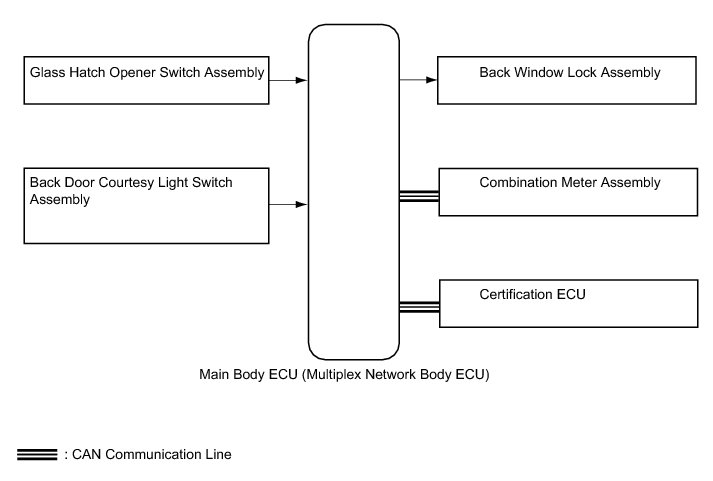

WINDOW / GLASS: GLASS HATCH OPENER SYSTEM: SYSTEM DIAGRAM

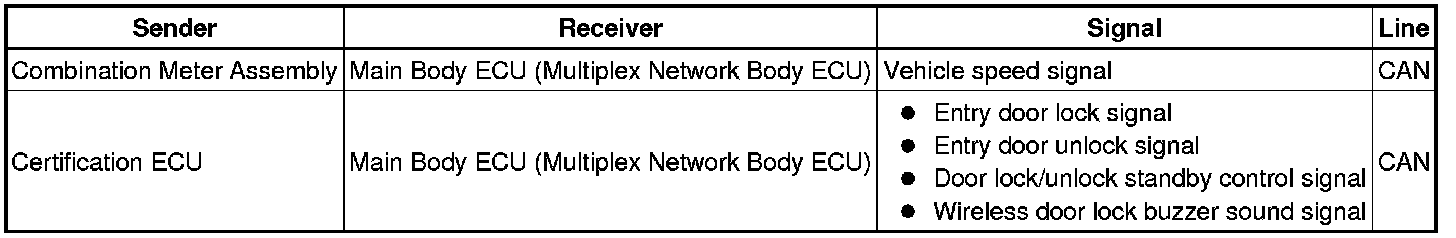

Communication Table










SYSTEM DESCRIPTION

1. GLASS HATCH OPENER SYSTEM DESCRIPTION

(a) An unlock request signal from the glass hatch opener switch is sent to the main body ECU (multiplex network body ECU). The main body ECU (multiplex network body ECU) receives the signal and unlocks the back window lock.

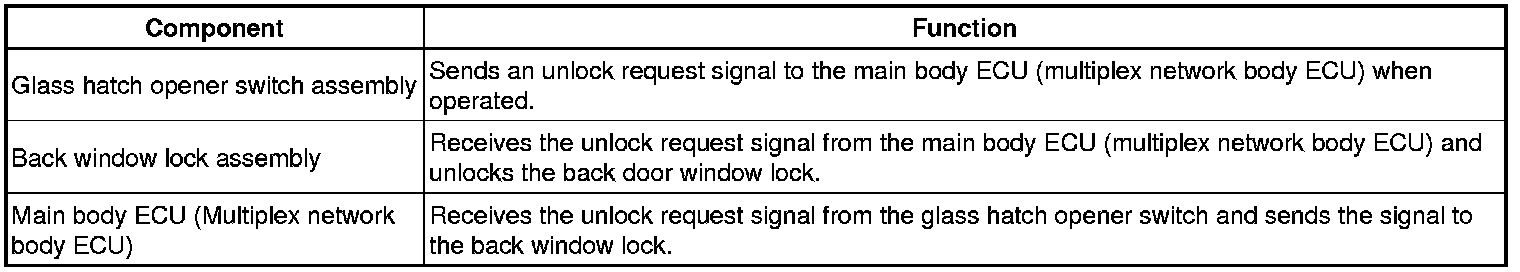

2. FUNCTION OF MAIN COMPONENTS
