Mechanical Specifications





SPECIFICATIONS: DOOR / HATCH: TORQUE SPECIFICATIONS

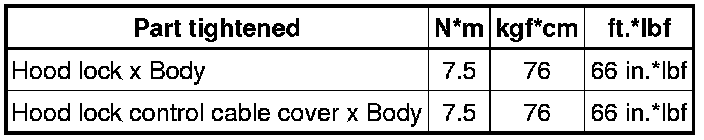

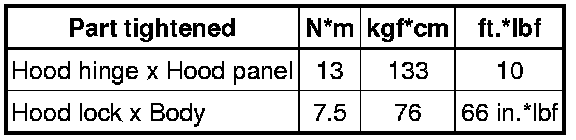

Hood





Hood Support





Hood Lock Control Cable Assembly

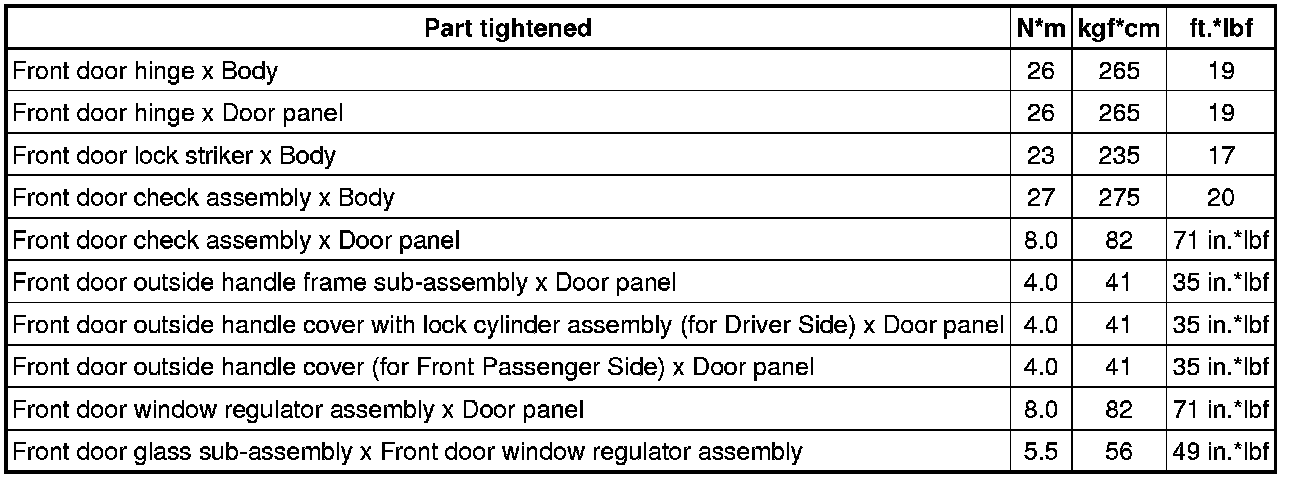

Front Door

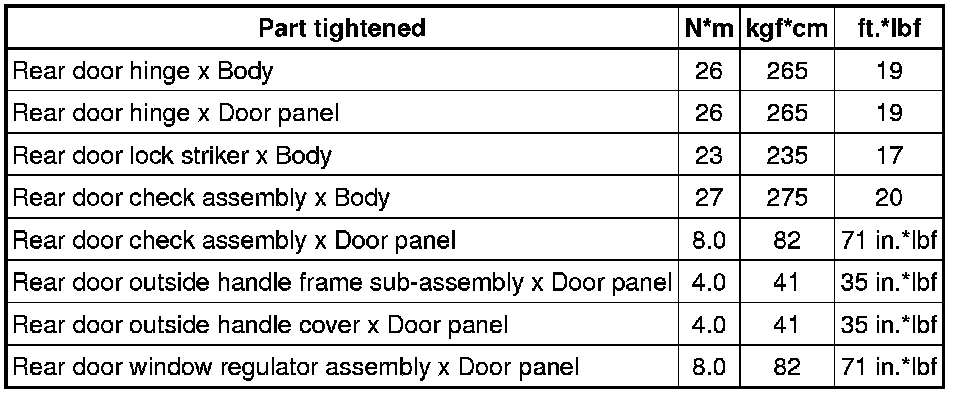

Rear Door

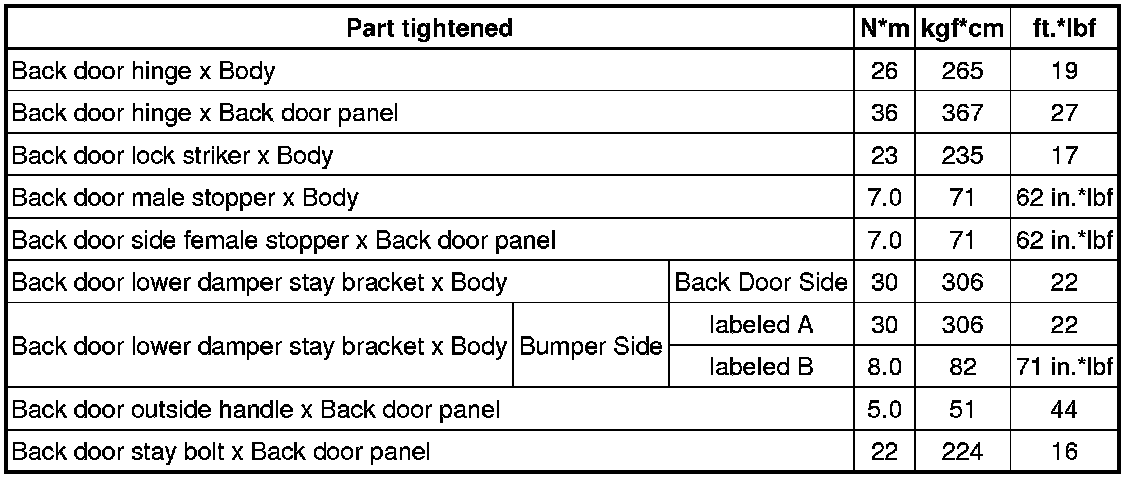

Back Door





Fuel Lid Opener Motor Assembly
