Hood Sensor/Switch (For Alarm): Testing and Inspection

THEFT DETERRENT / KEYLESS ENTRY: ENGINE HOOD COURTESY SWITCH: INSPECTION

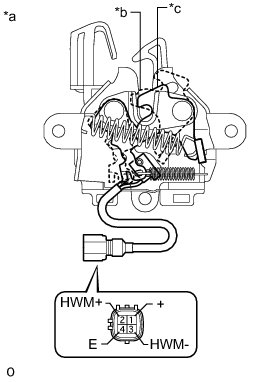

1. INSPECT HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH)

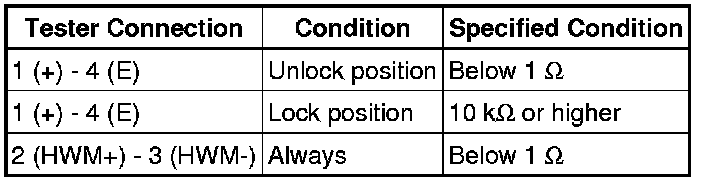

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the hood lock assembly.

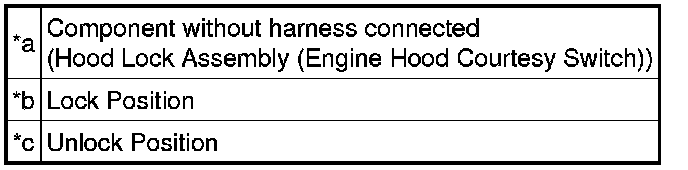

Text in Illustration
