Mute Signal Circuit Between Radio Receiver and Stereo Component Amplifier

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Multi-display): Mute Signal Circuit between Radio Receiver and Stereo Component Amplifier
- Mute Signal Circuit between Radio Receiver and Stereo Component Amplifier

DESCRIPTION

This circuit sends a signal to the stereo component amplifier assembly to mute noise. Because of that, the noise produced by changing the sound source ceases.

If there is an open in the circuit, noise can be heard from the speakers when changing the sound source.

If there is a short in the circuit, even though the stereo component amplifier assembly is normal, no sound, or only an extremely small sound, can be produced.

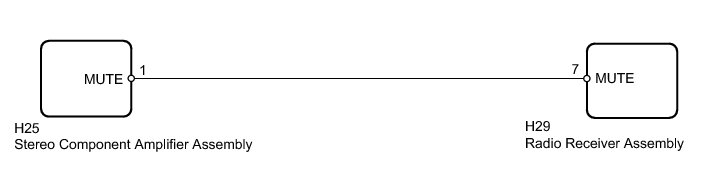

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK STEREO COMPONENT AMPLIFIER ASSEMBLY

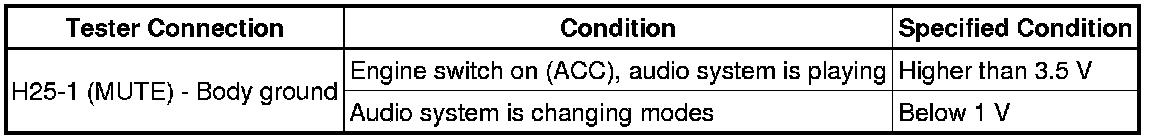

(a) Measure the voltage according to the value(s) in the table below.





Standard Voltage:





Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

2. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)

(a) Disconnect the H29 radio receiver assembly connector.

(b) Disconnect the H25 stereo component amplifier assembly connector.

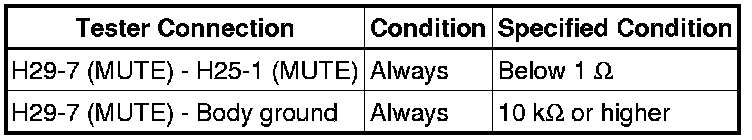

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE RADIO RECEIVER ASSEMBLY Removal
