Cellular Phone Voice Circuit Between Radio Receiver and Stereo Component Amplifier

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Multi-display): Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier
- Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier

SYSTEM DESCRIPTION

This circuit is used when the cellular phone voice in the "Bluetooth" hands-free system is on.

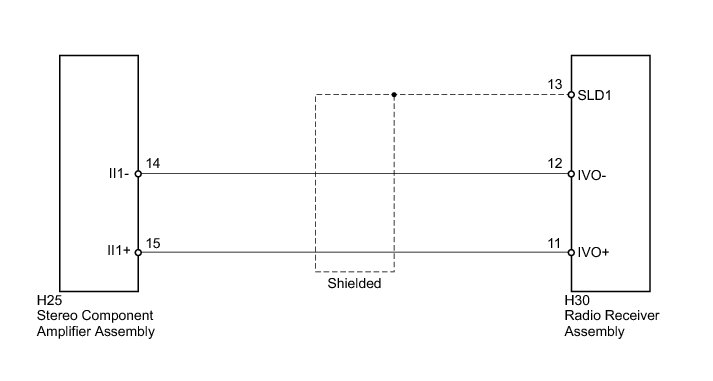

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)

(a) Disconnect the H30 radio receiver assembly connector.

(b) Disconnect the H25 stereo component amplifier assembly connector.

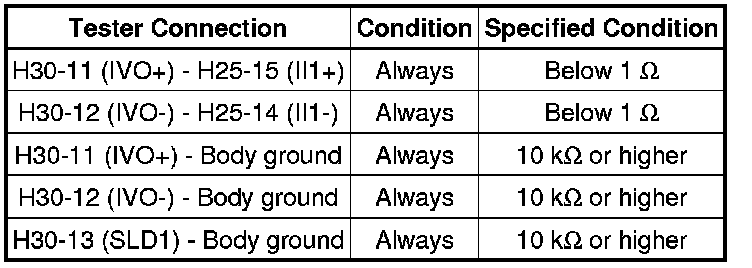

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
