Removal

AUDIO / VIDEO: REAR DOOR SPEAKER: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

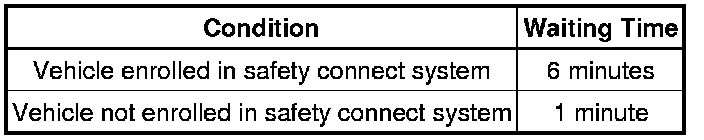

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH Disassembly

3. REMOVE REAR ARMREST ASSEMBLY LH Disassembly

4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

5. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH Disassembly

6. REMOVE REAR SPEAKER ASSEMBLY

(a) Disconnect the connector.





(b) Remove the 3 screws.

(c) Detach the 2 claws and remove the rear speaker.

NOTICE:
Do not touch the cone of the speaker.

7. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 14 Speakers)

(a) Remove the 2 screws and No. 2 speaker.





NOTICE:
Do not touch the cone of the speaker.
