AUDIO / VIDEO: INSTRUMENT PANEL SPEAKER: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

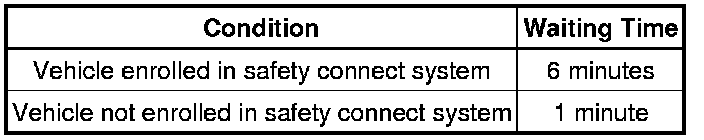

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE FRONT NO. 1 ASSIST GRIP PLUG LH Removal

3. REMOVE NO. 1 ASSIST GRIP Removal

4. REMOVE FRONT PILLAR GARNISH LH Removal

5. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY Removal

6. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

(a) Remove the 2 screws.





(b) Remove the front No. 2 speaker and disconnect the speaker connector.

NOTICE:
Do not touch the cone of the speaker.

7. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL Removal

8. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY

(a) Remove the 2 screws.





(b) Remove the front No. 4 speaker and disconnect the speaker connector.

NOTICE:
Do not touch the cone of the speaker.
