Removal

AUDIO / VIDEO: RADIO RECEIVER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

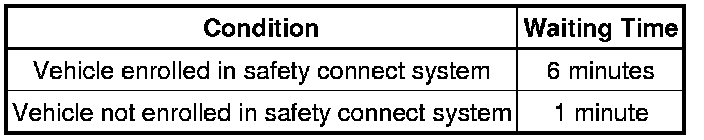

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

6. REMOVE FRONT UPPER CONSOLE PANEL GARNISH Removal

7. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

(a) w/o Navigation System:

(1) Remove the 4 bolts.





(2) Pull the radio receiver to detach the 6 clips and rib on the backside of the radio receiver.





(3) Disconnect the connectors and remove the radio receiver.

(b) w/ Navigation System:

(1) Remove the 4 bolts.





(2) Pull the radio receiver to detach the 6 clips and 3 ribs on the backside of the radio receiver.





(3) Disconnect the connectors and remove the radio receiver.

8. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ Navigation System)

(a) Remove the 4 screws.





(b) Detach the 2 claws and remove the lower center instrument cluster finish panel.

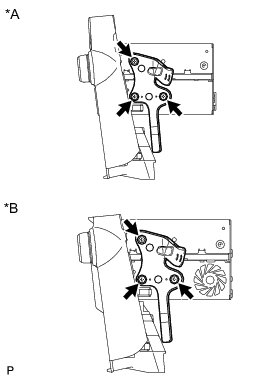

9. REMOVE NO. 1 RADIO BRACKET

(a) Remove the 3 screws and bracket.





Text in Illustration

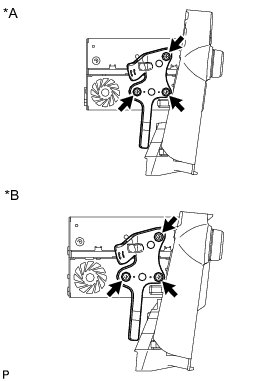

10. REMOVE NO. 2 RADIO BRACKET

(a) Remove the 3 screws and bracket.





Text in Illustration
