Cannot Call in a Certain Place





NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: Cannot Call in a Certain Place
- Cannot Call in a Certain Place

INSPECTION PROCEDURE

PROCEDURE

1. CHECK SURROUNDING CONDITIONS

(a) Check if the cellular phone can make calls in the place where the problem occurred.

OK:

The cellular phone can make calls.

NG -- END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS)
OK -- Continue to next step.

2. CHECK RECEPTION

(a) Press the "INFO" switch and then select "Phone".





(b) Check the "Bluetooth" connection indicator ("BT" indicator).

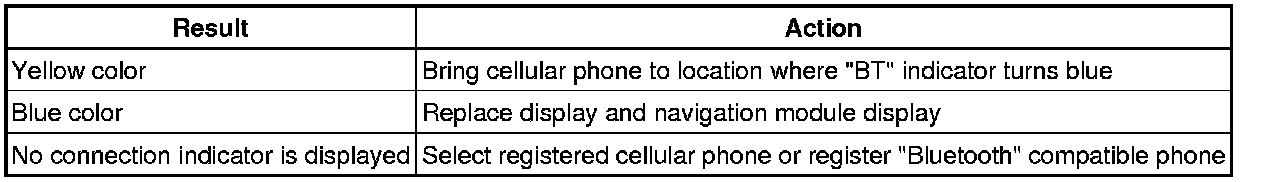

Result





NEXT -- END
