Intuitive Parking Assist System

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: TERMINALS OF ECU

1. CHECK CLEARANCE WARNING ECU (w/o Side Monitor System)

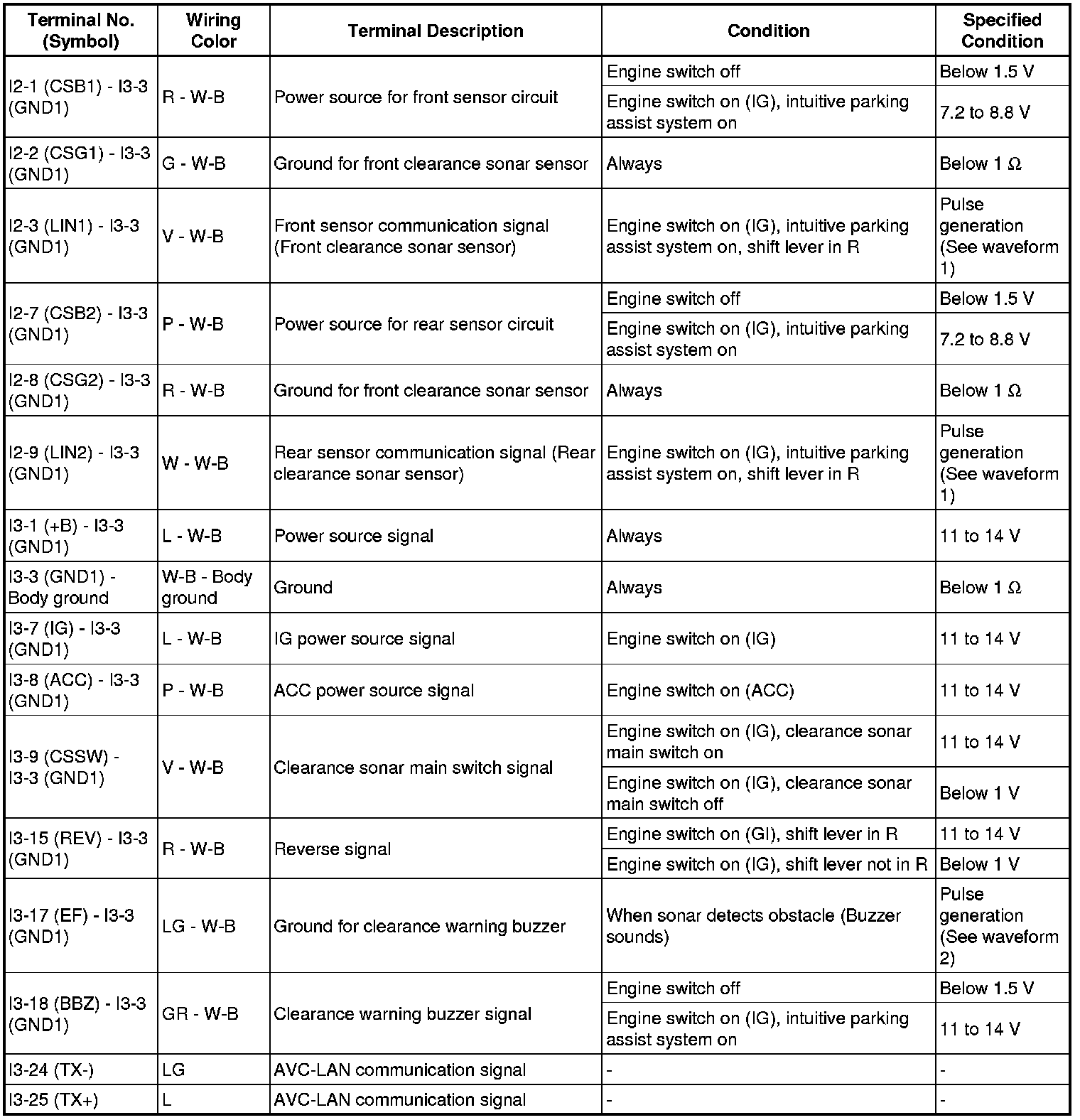

(a) Measure the voltage and resistance and check for pulse signals according to the value(s) in the table below.

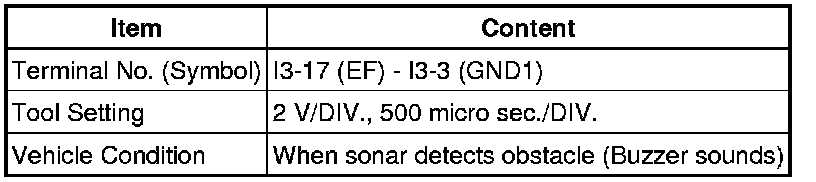

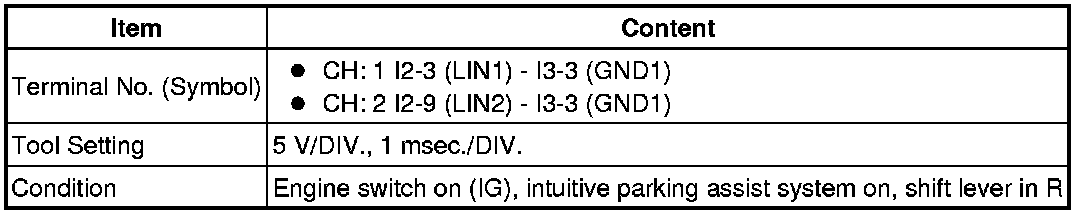

(b) Using an oscilloscope, check waveform 1.

Measurement Condition

2. CHECK PARKING ASSIST ECU (w/ Side Monitor System)

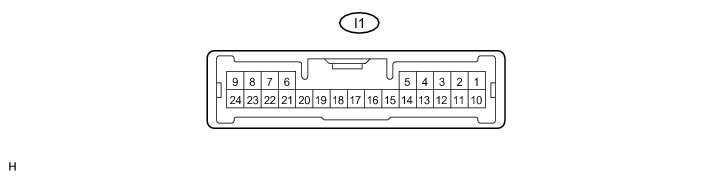

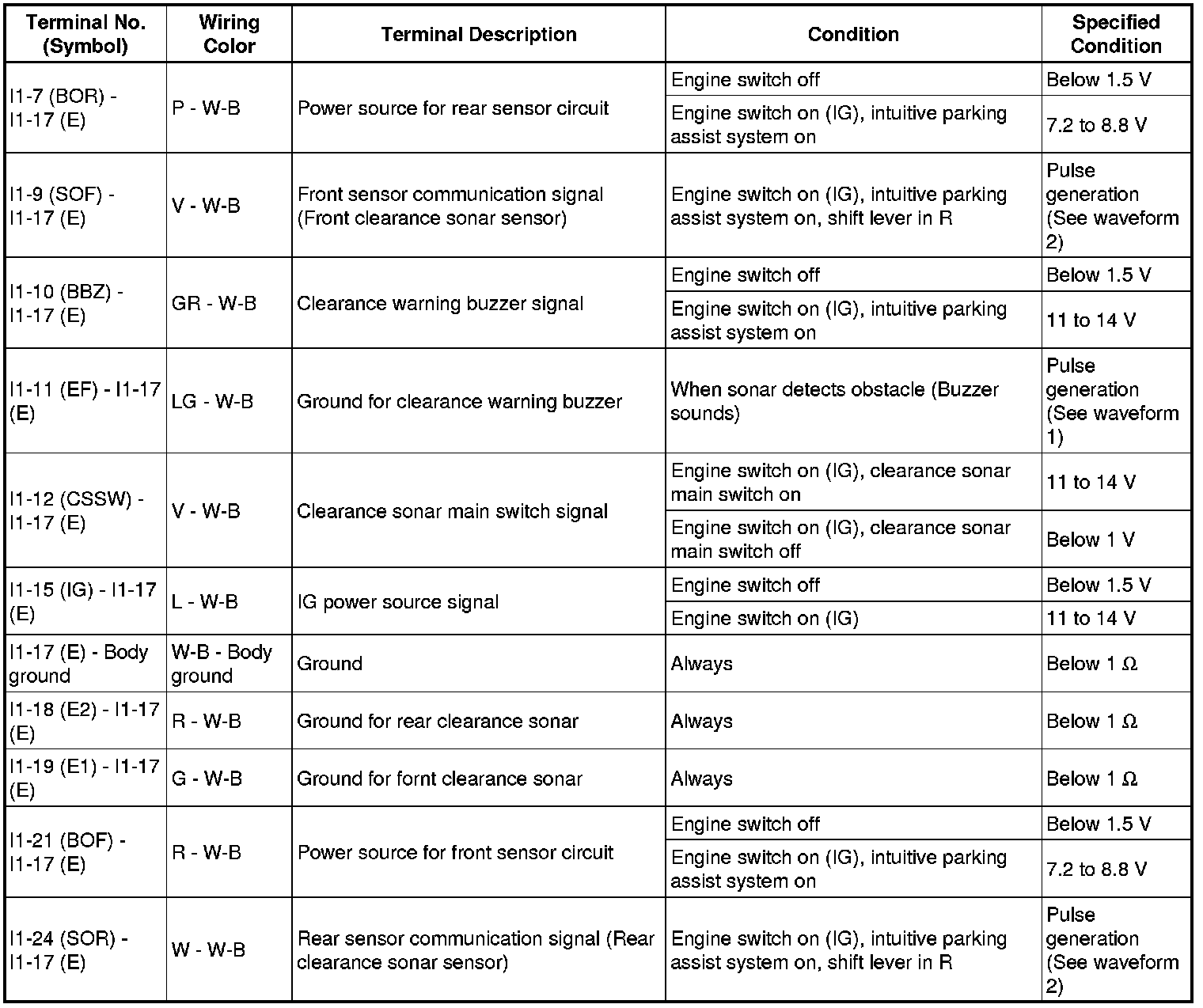

(a) Measure the voltage and resistance and check for pulse signals according to the value(s) in the table below.

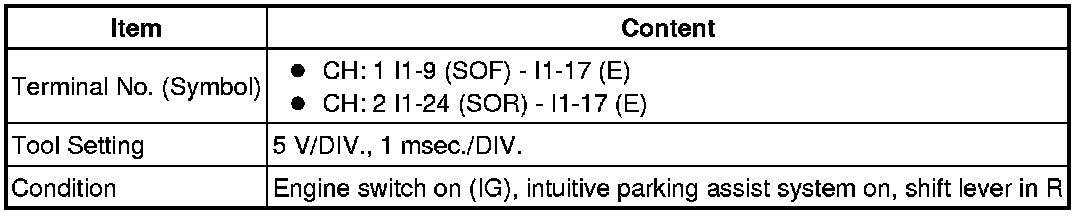

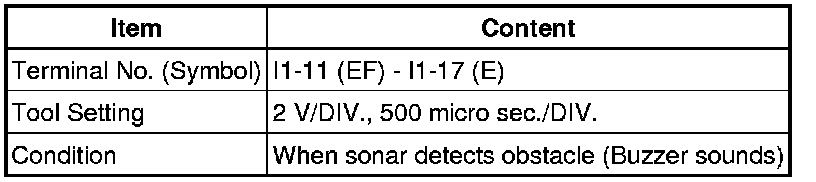

(b) Using an oscilloscope, check waveform 1.

Measurement Condition

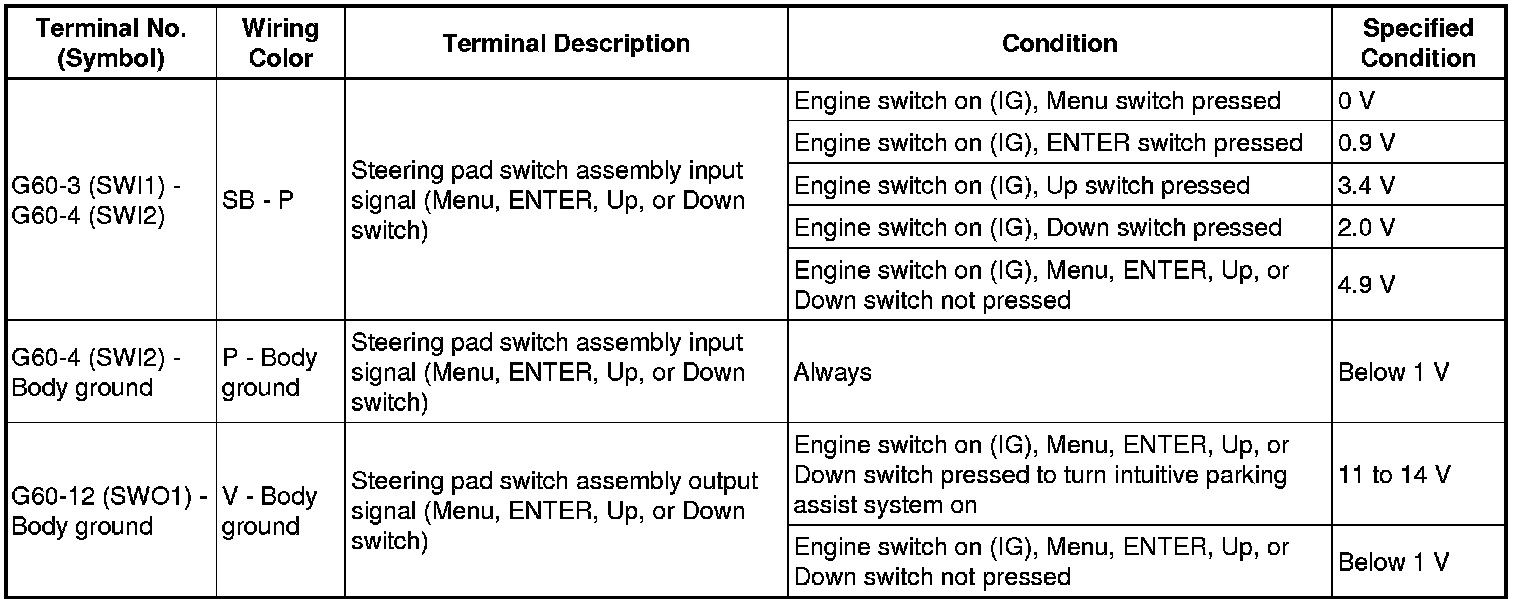

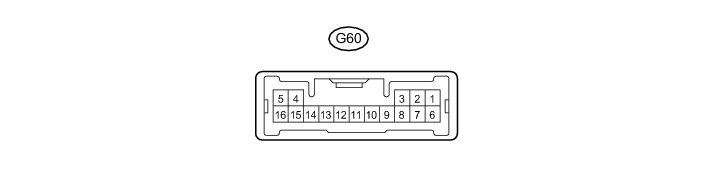

3. CHECK DRIVING SUPPORT SWITCH CONTROL ECU

(a) Measure the resistance according to the value(s) in the table below.
