Rear View Monitor System (w/o Side Monitor System)

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (w/o Side Monitor System): HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the rear view monitor system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

(a) Measure the battery voltage with the engine switch off.

Standard voltage:

11 to 14 V

If the voltage is below 11 V, replace or recharge the battery before proceeding.

NEXT -- Continue to next step.

3. CUSTOMER PROBLEM ANALYSIS

NEXT -- Continue to next step.

4. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*

(a) Use the Techstream to check if the CAN communication system is functioning normally.

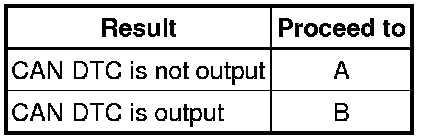

Result





B -- GO TO CAN COMMUNICATION SYSTEM Diagnosis System
A -- Continue to next step.

5. CHECK COMMUNICATION FUNCTION OF LIN COMMUNICATION SYSTEM*

(a) Use the Techstream to check if the LIN communication system is functioning normally.

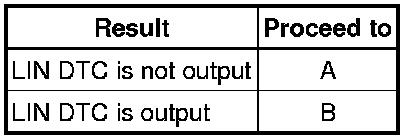

Result





B -- GO TO LIN COMMUNICATION SYSTEM LIN Communication System
A -- Continue to next step.

6. PROBLEM SYMPTOM CONFIRMATION

NEXT -- Continue to next step.

7. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table.

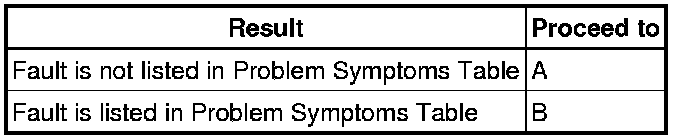

Result





B -- Go to step 9
A -- Continue to next step.

8. OVERALL ANALYSIS AND TROUBLESHOOTING

(a) Terminals of ECU Rear View Monitor System (w/o Side Monitor System).

NEXT -- Continue to next step.

9. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

10. CONFIRMATION TEST

NEXT -- END
