Clearance Warning ECU Power Source Circuit

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: Clearance Warning ECU Power Source Circuit
- Clearance Warning ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the clearance warning ECU.

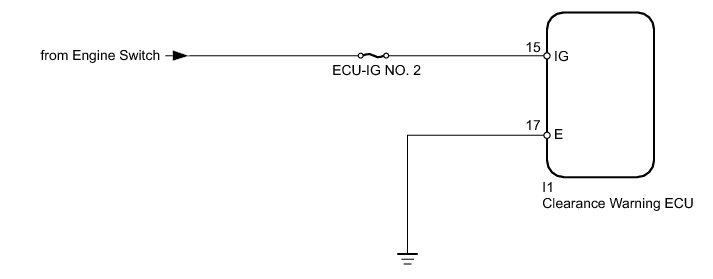

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU - BATTERY)

(a) Disconnect the I1 clearance warning ECU connector.





(b) Measure the voltage according to the value(s) on the table below.

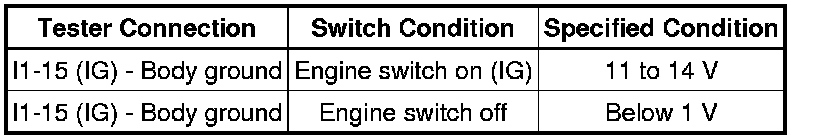

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU - BODY GROUND)

(a) Disconnect the I1 clearance warning ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Intuitive Parking Assist System
