Ultrasonic Sensor (for Rear)

PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear): INSPECTION

1. INSPECT NO. 1 ULTRASONIC SENSOR

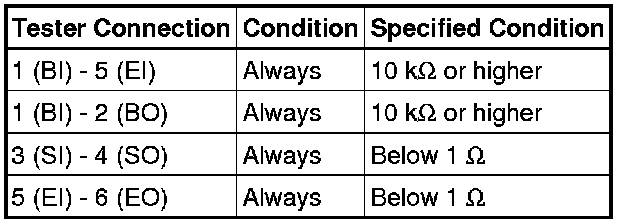

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the No. 1 ultrasonic sensor.

Text in Illustration
