Power Source Circuit

CRUISE CONTROL: LANE DEPARTURE ALERT SYSTEM: Power Source Circuit
- Power Source Circuit

DESCRIPTION

This circuit provides power to operate the lane recognition camera sensor assembly.

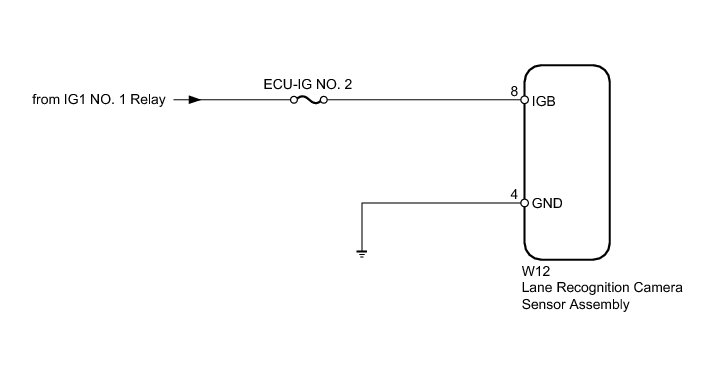

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (LANE RECOGNITION CAMERA SENSOR - BATTERY AND BODY GROUND)

(a) Disconnect the W12 lane recognition camera sensor connector.





(b) Measure the voltage according to the value(s) in the table below.

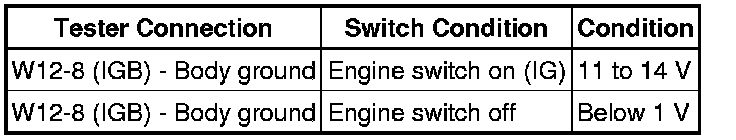

Standard Voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures
