Rear View Monitor System (w/ Side Monitor System)

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (w/ Side Monitor System): SYSTEM DIAGRAM

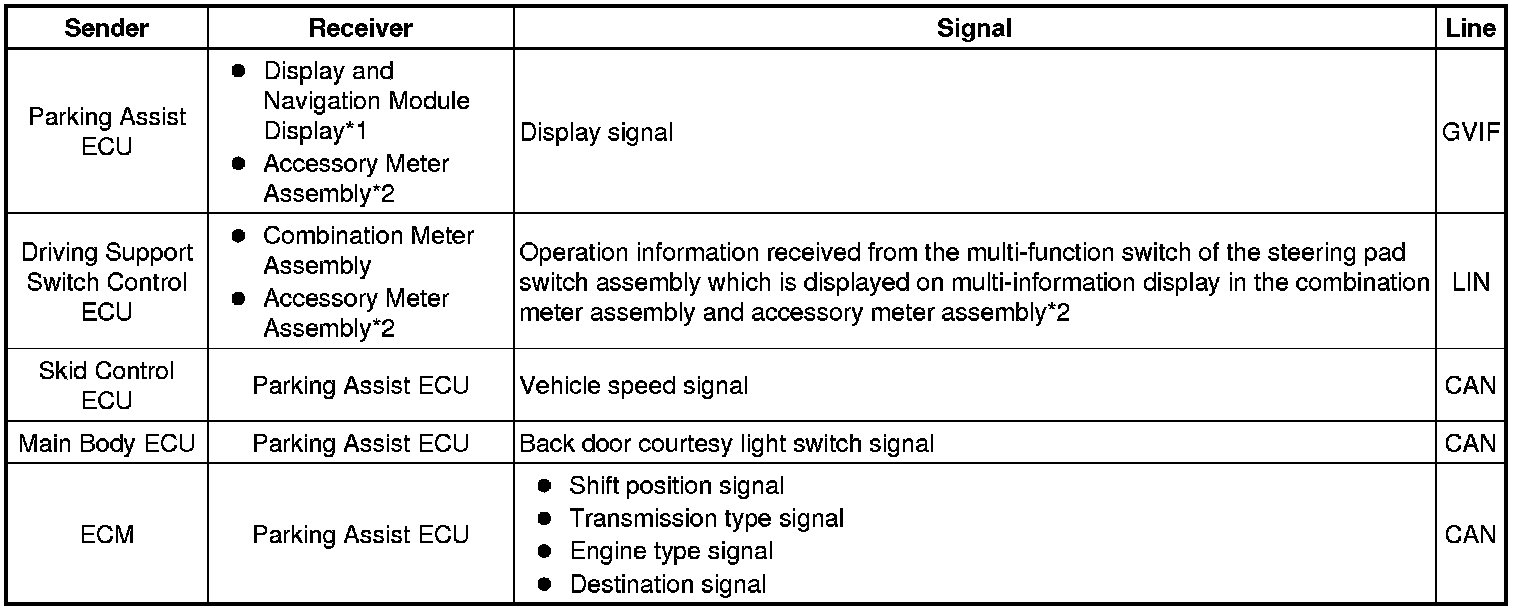

Communication Table





* *1: w/ Navigation System

* *2: w/o Navigation System





SYSTEM DESCRIPTION

* *1: w/ Navigation System

* *2: w/o Navigation System

1. GENERAL

(a) To assist the driver with parking the vehicle by displaying an image of the area behind the vehicle, this system has a television camera mounted on the back door. The system displays the image on the display and navigation module display*1 or accessory meter assembly*2.

(b) The rear view monitor system consists of the following components:

(1) Rear television camera assembly

(2) Park/neutral position switch assembly

(3) Parking assist ECU

(4) Display and navigation module display*1

(5) Accessory meter assembly*2

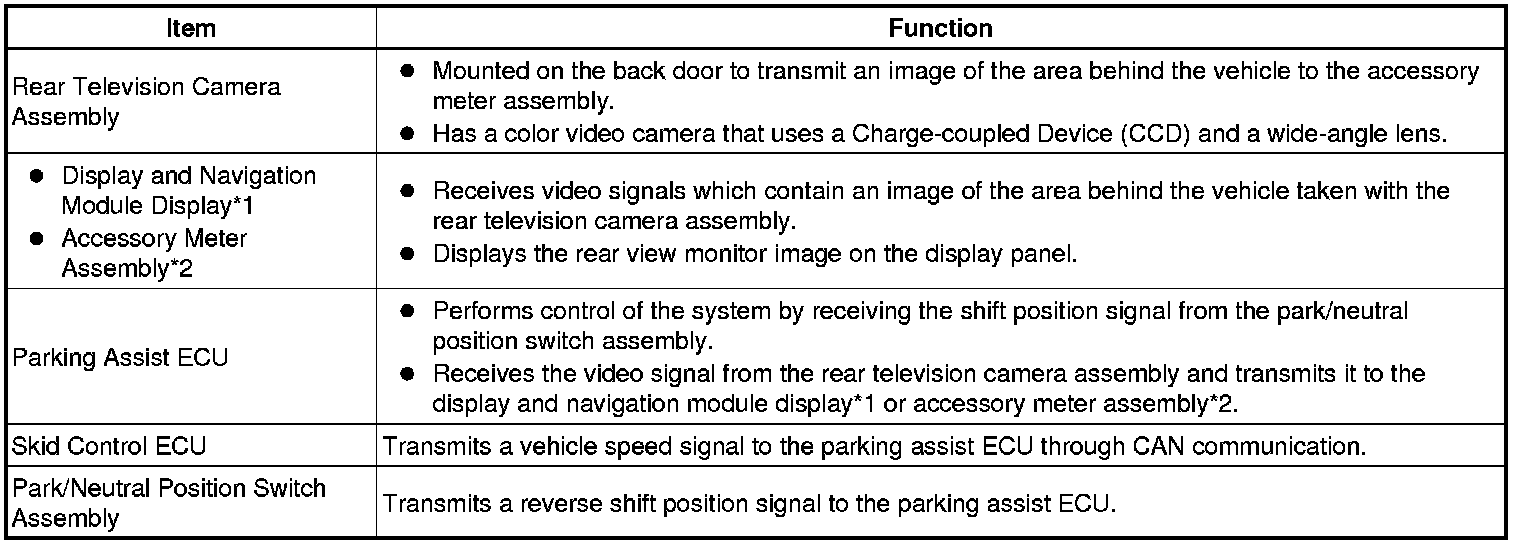

2. FUNCTION OF COMPONENTS





3. OPERATION EXPLANATION

(a) The parking assist ECU receives the reverse shift position signal when the shift lever is moved to R. After receiving the reverse shift position signal, the parking assist ECU transmits the reverse signal to switch to the display and navigation module display*1 or accessory meter assembly*2.
