Component Tests and General Diagnostics

THEFT DETERRENT / KEYLESS ENTRY: ENTRY LOCK AND UNLOCK SWITCH: INSPECTION

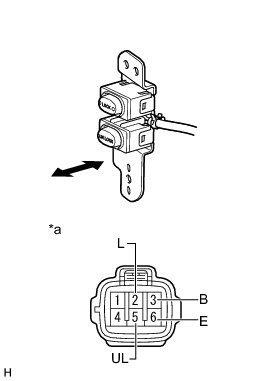

1. INSPECT BACK DOOR ELECTRICAL KEY SWITCH

(a) Check the operation of the switch.

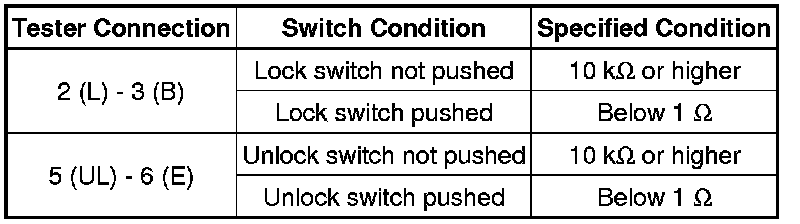

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the back door electrical key switch.

Text in Illustration
