Alarm Horn: Testing and Inspection

THEFT DETERRENT / KEYLESS ENTRY: SECURITY HORN ASSEMBLY: INSPECTION

1. INSPECT SECURITY HORN ASSEMBLY

(a) Apply battery voltage to the horn connector and check the operation of the horn.

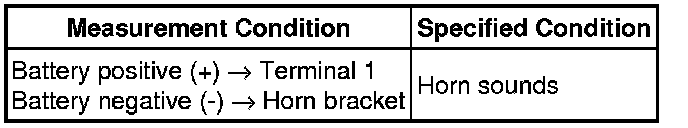

OK:





If the result is not as specified, replace the security horn assembly.
