Removal

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION ANTENNA: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

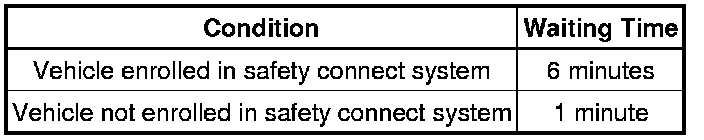

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Remove the instrument panel safety pad sub-assembly Removal.

3. REMOVE NO. 1 HEATER TO REGISTER DUCT Disassembly

4. REMOVE NO. 2 HEATER TO REGISTER DUCT Disassembly

5. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT Disassembly

6. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT Disassembly

7. REMOVE DEFROSTER NOZZLE ASSEMBLY Disassembly

8. REMOVE NAVIGATION ANTENNA ASSEMBLY

(a) Detach the 3 clamps.





(b) Remove the 2 screws and navigation antenna.
