Removal

AUDIO / VIDEO: AMPLIFIER ANTENNA: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

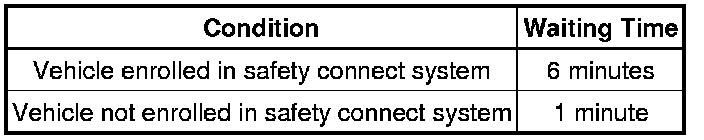

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE ROOF HEADLINING ASSEMBLY

(a) Remove the roof headlining assembly Removal.

3. REMOVE HOLDER ANTENNA ASSEMBLY

(a) Disconnect the 3 connectors.

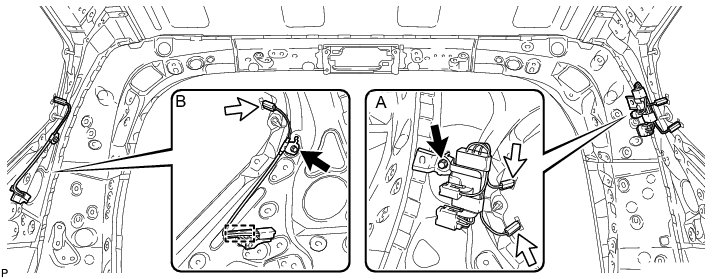

(b) Remove the bolt and holder antenna shown in the part of the illustration labeled A.

(c) Detach the clamp and remove the bolt and holder antenna shown in the part of the illustration labeled B.
