Pre-Collision System

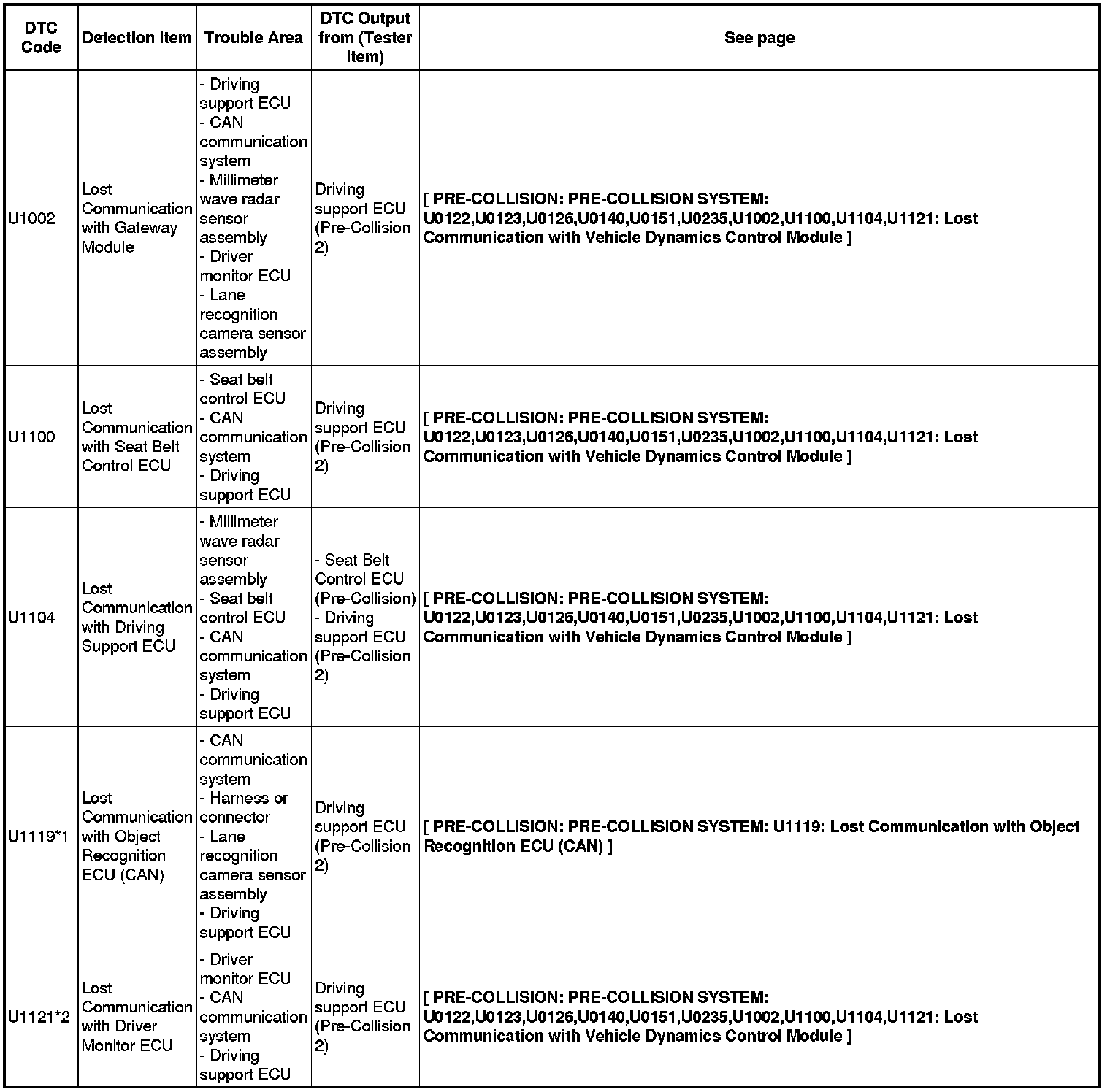

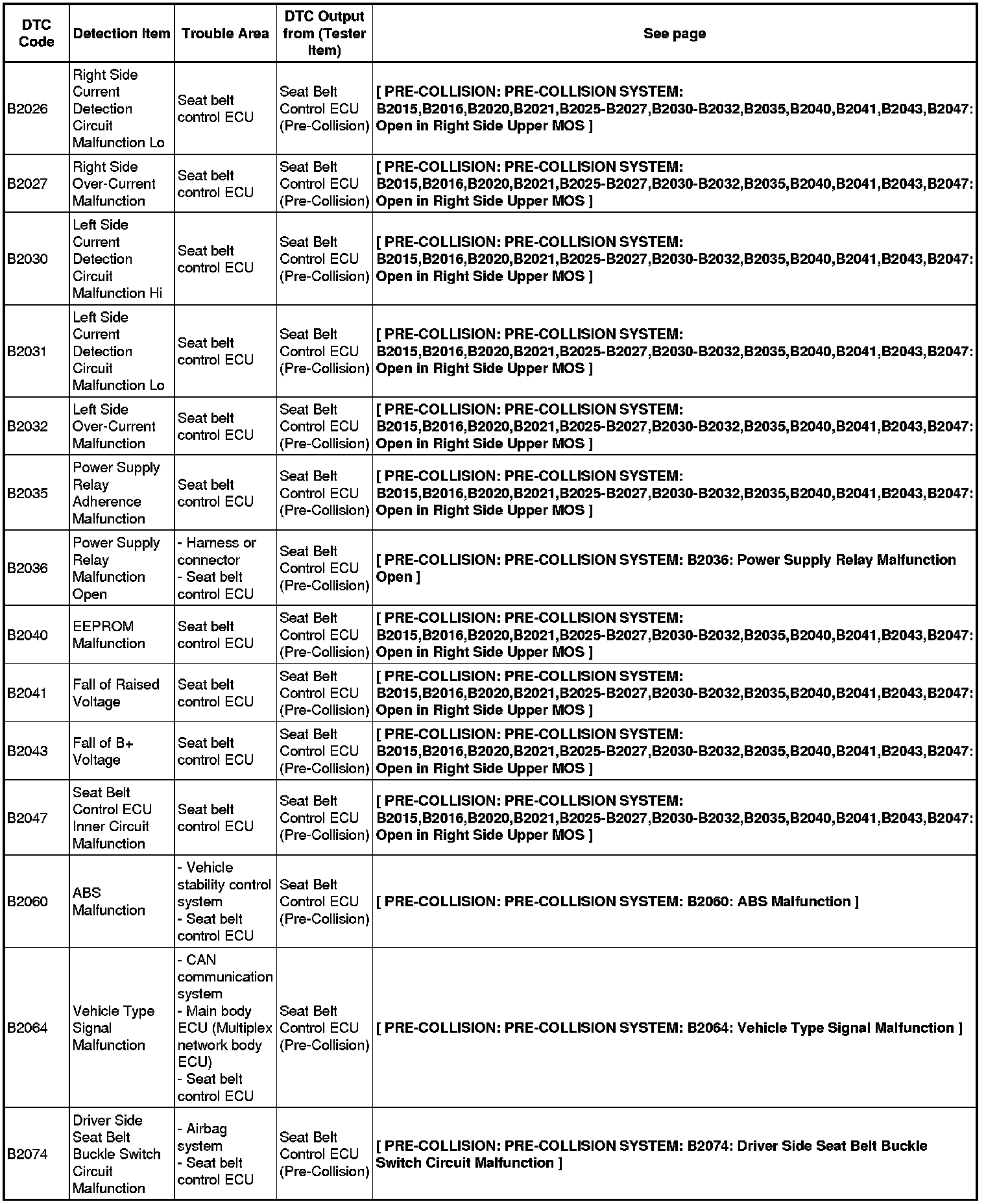

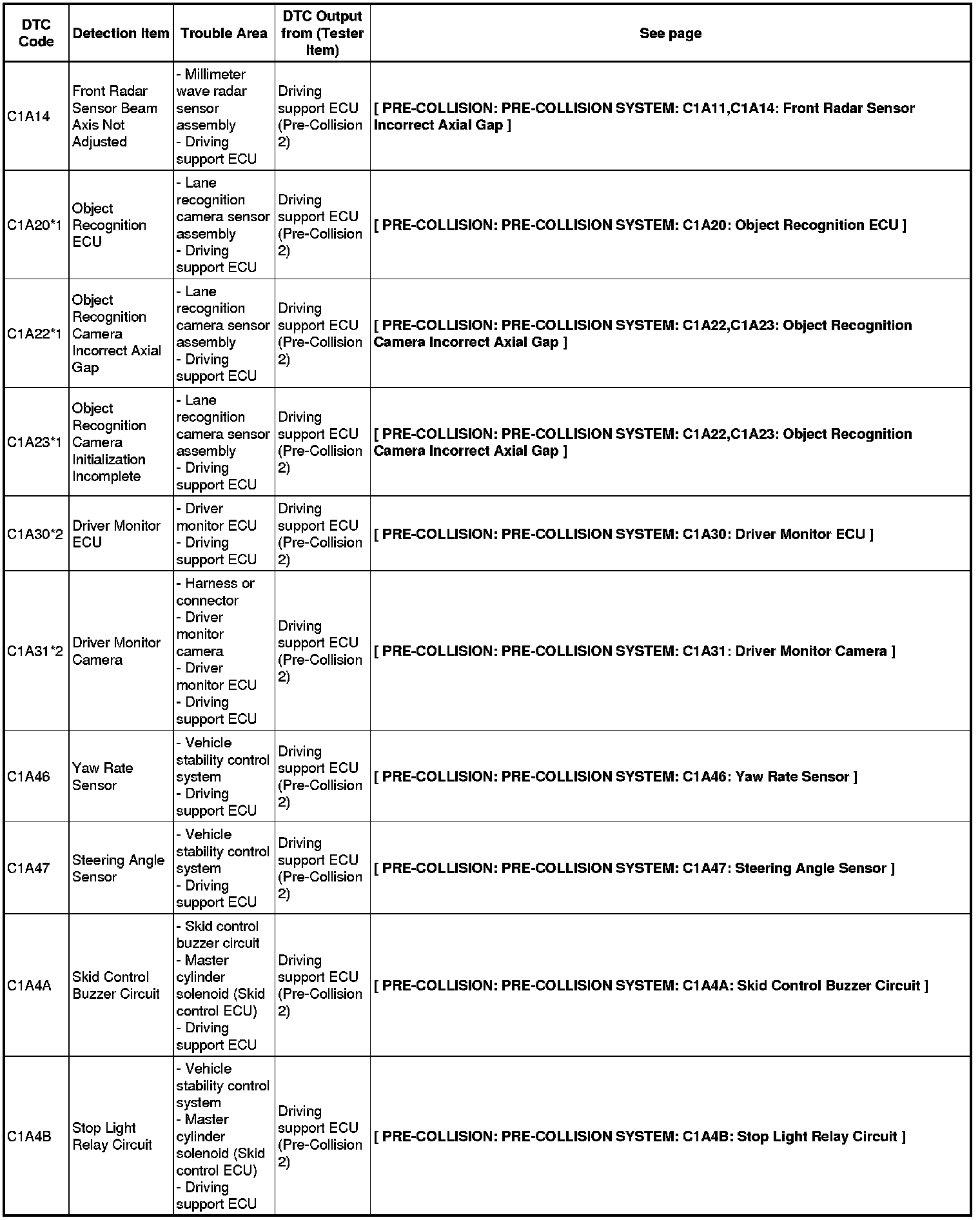

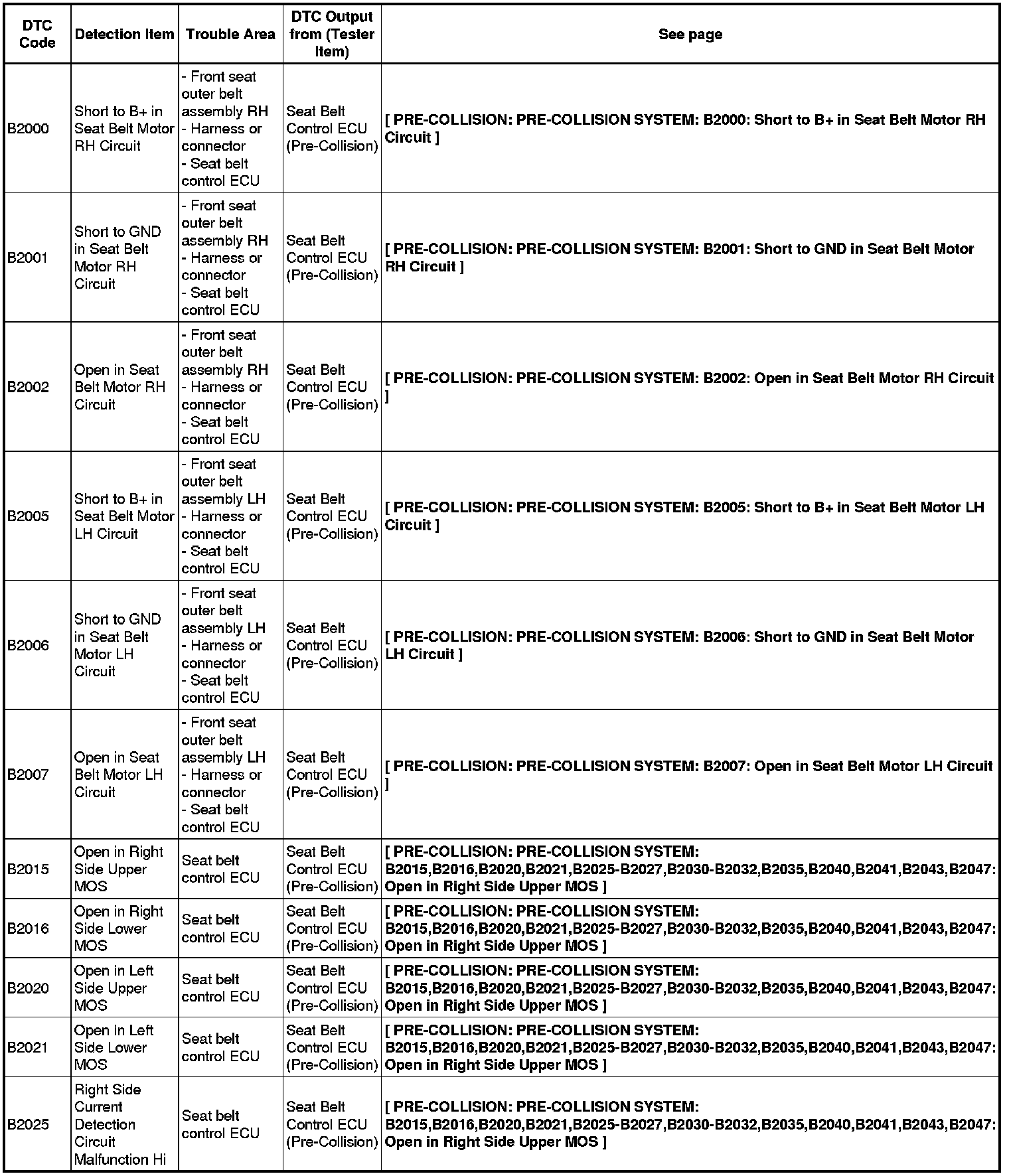

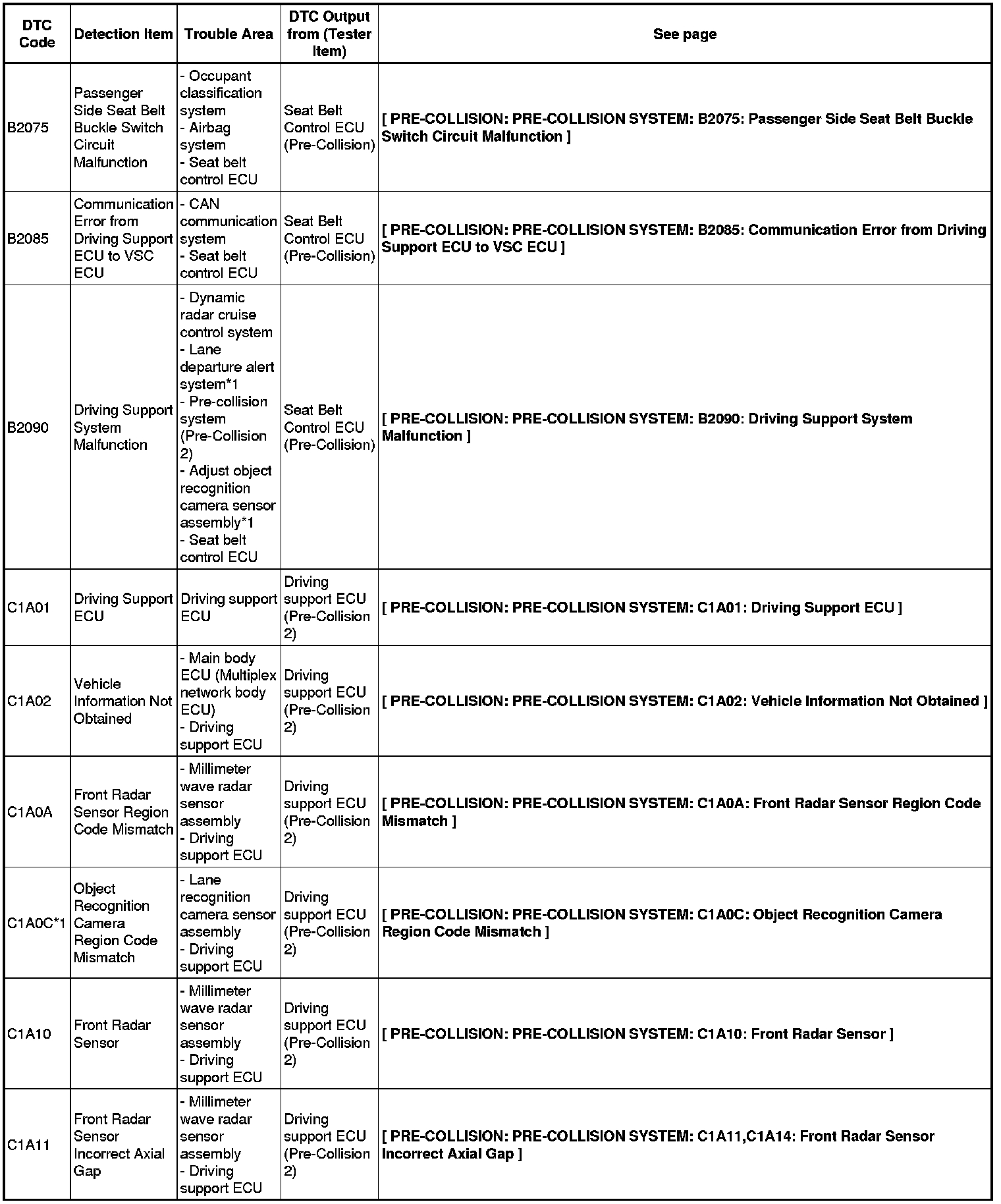

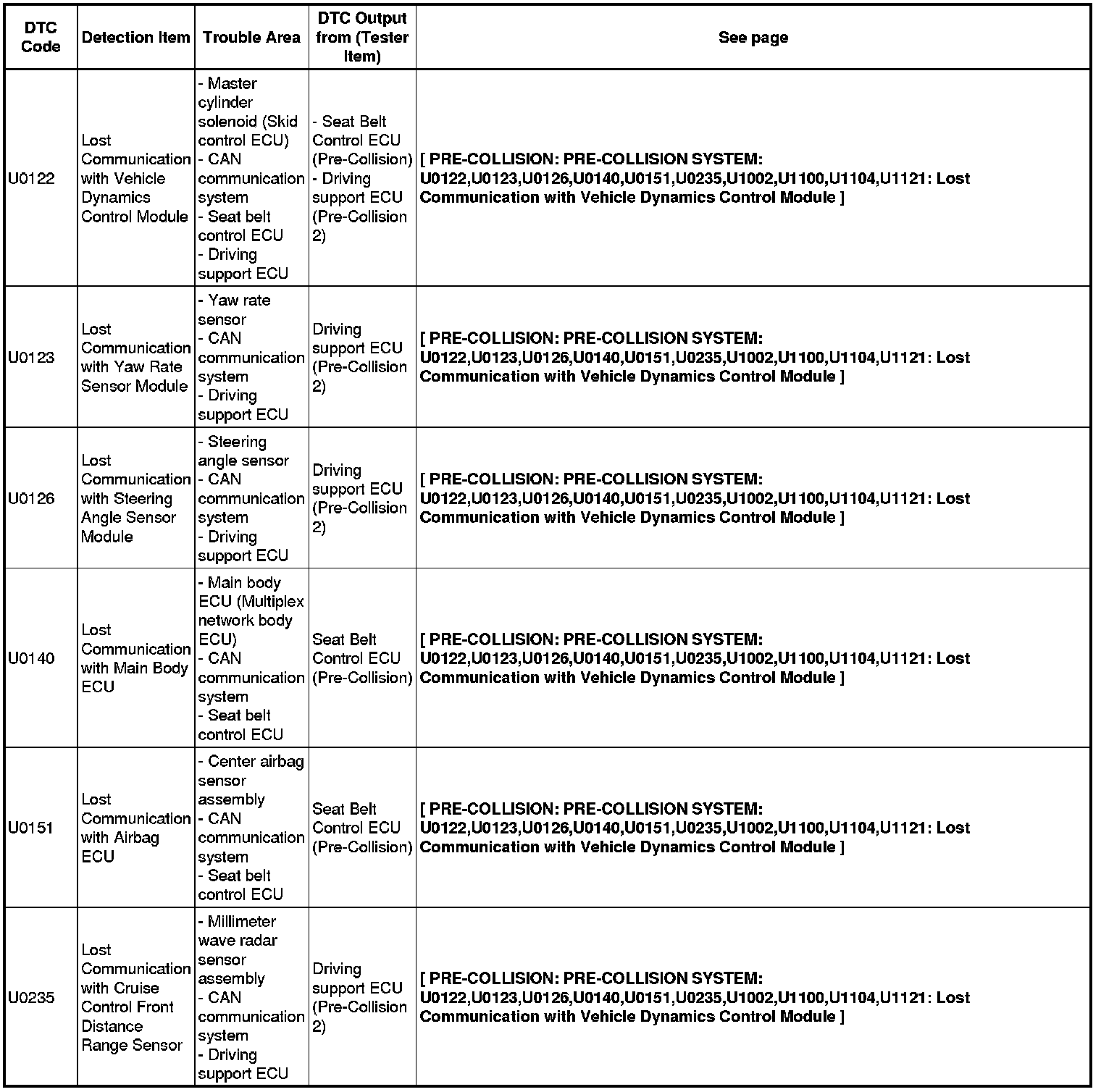

PRE-COLLISION: PRE-COLLISION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is output during the DTC check, inspect the trouble area listed for that code. For details of the code, refer to the "See page" below.

Pre-collision System

























* *1: w/ Lane departure Alert System

* *2: w/ Driver Monitor Camera
