LIN Communication System
NETWORKING: LIN COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

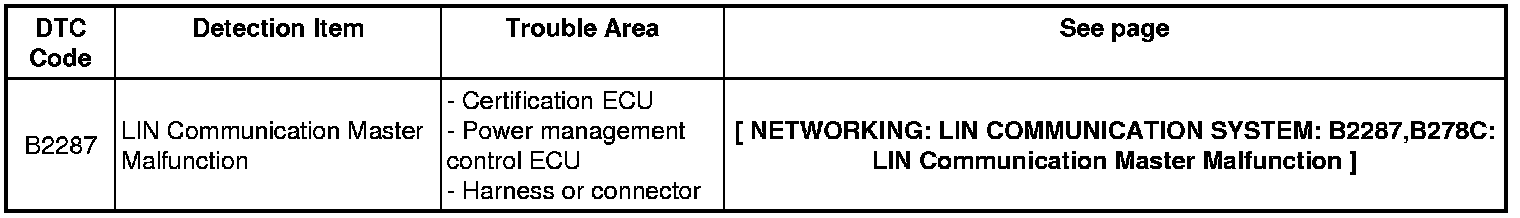

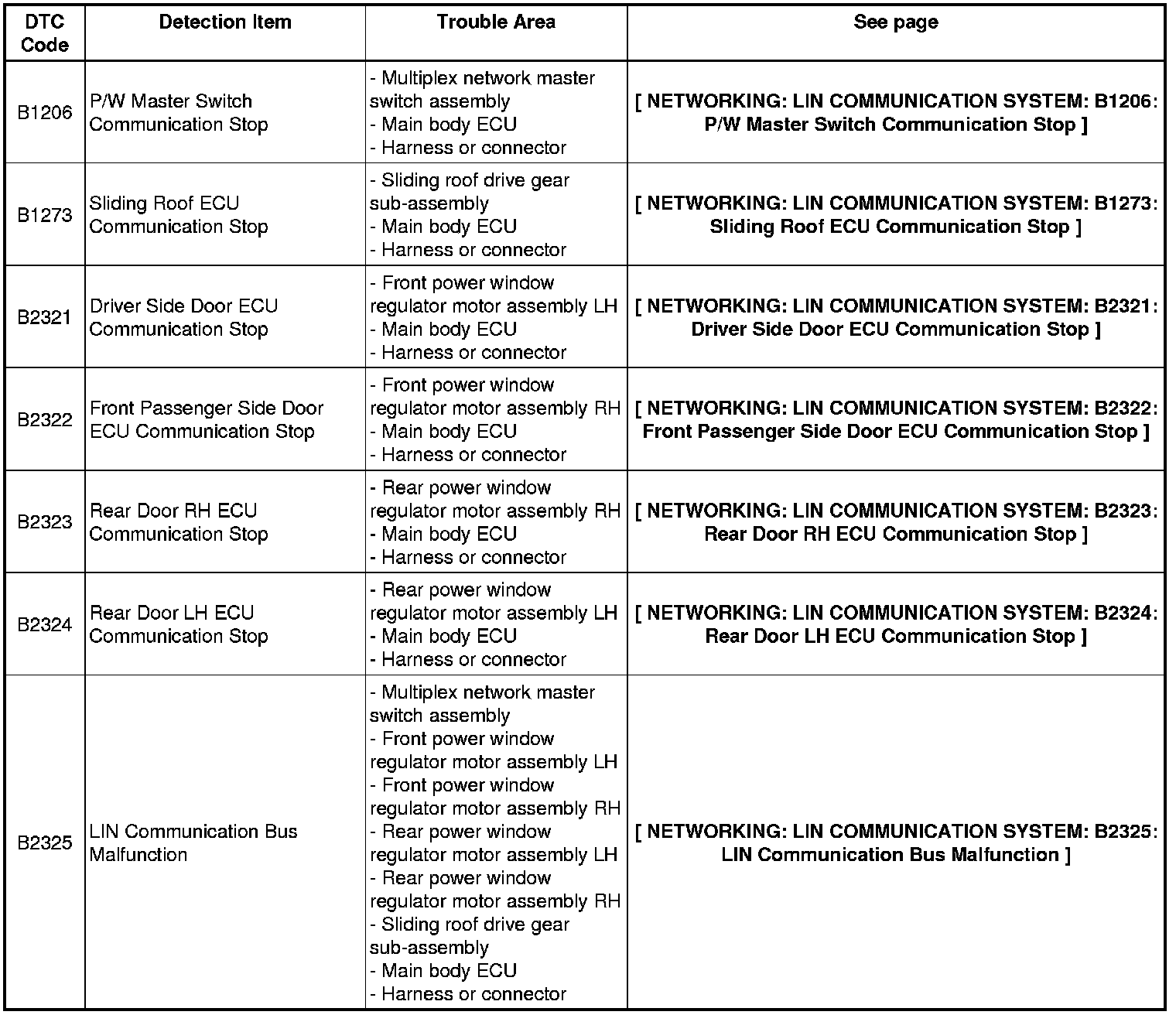

Main Body ECU
Power Management Control ECU

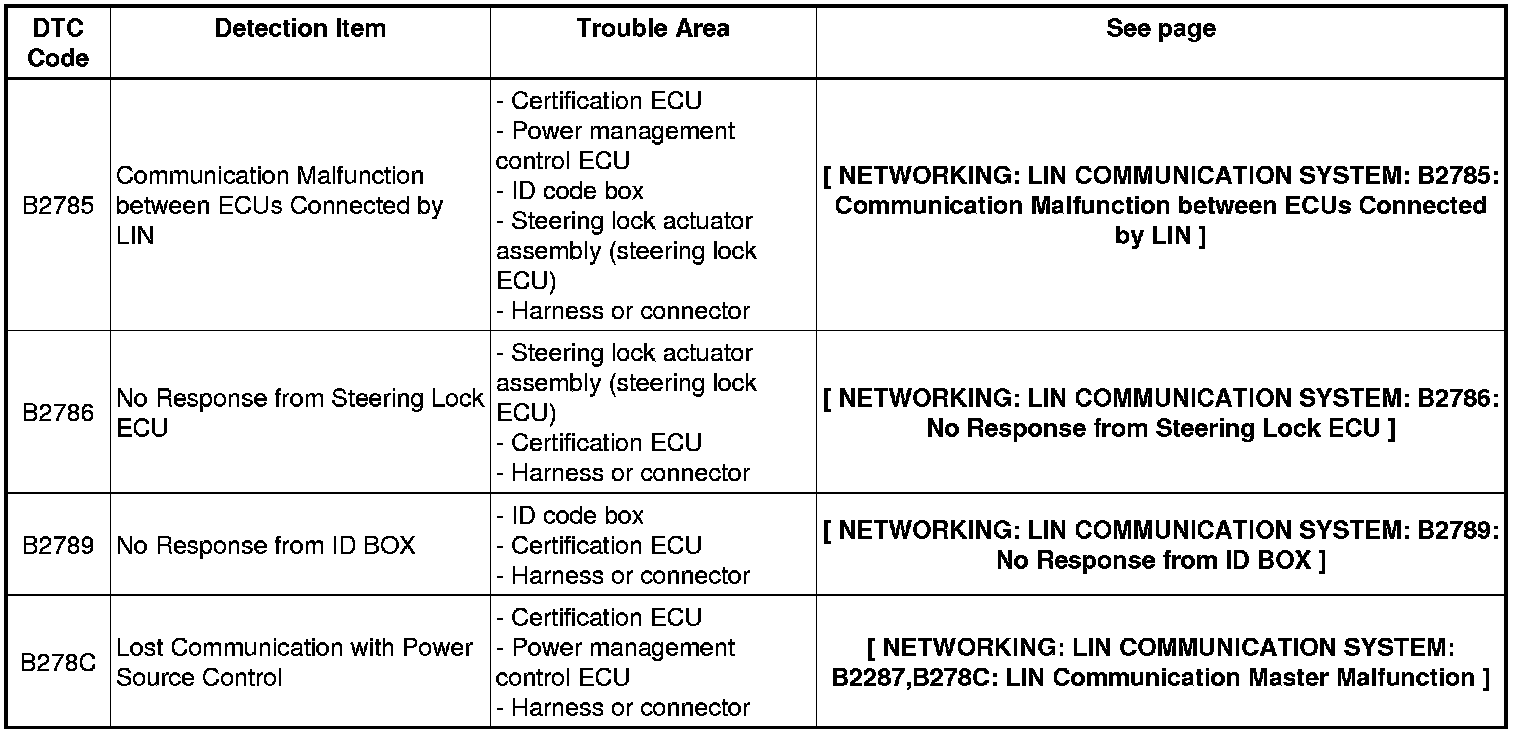

Certification ECU

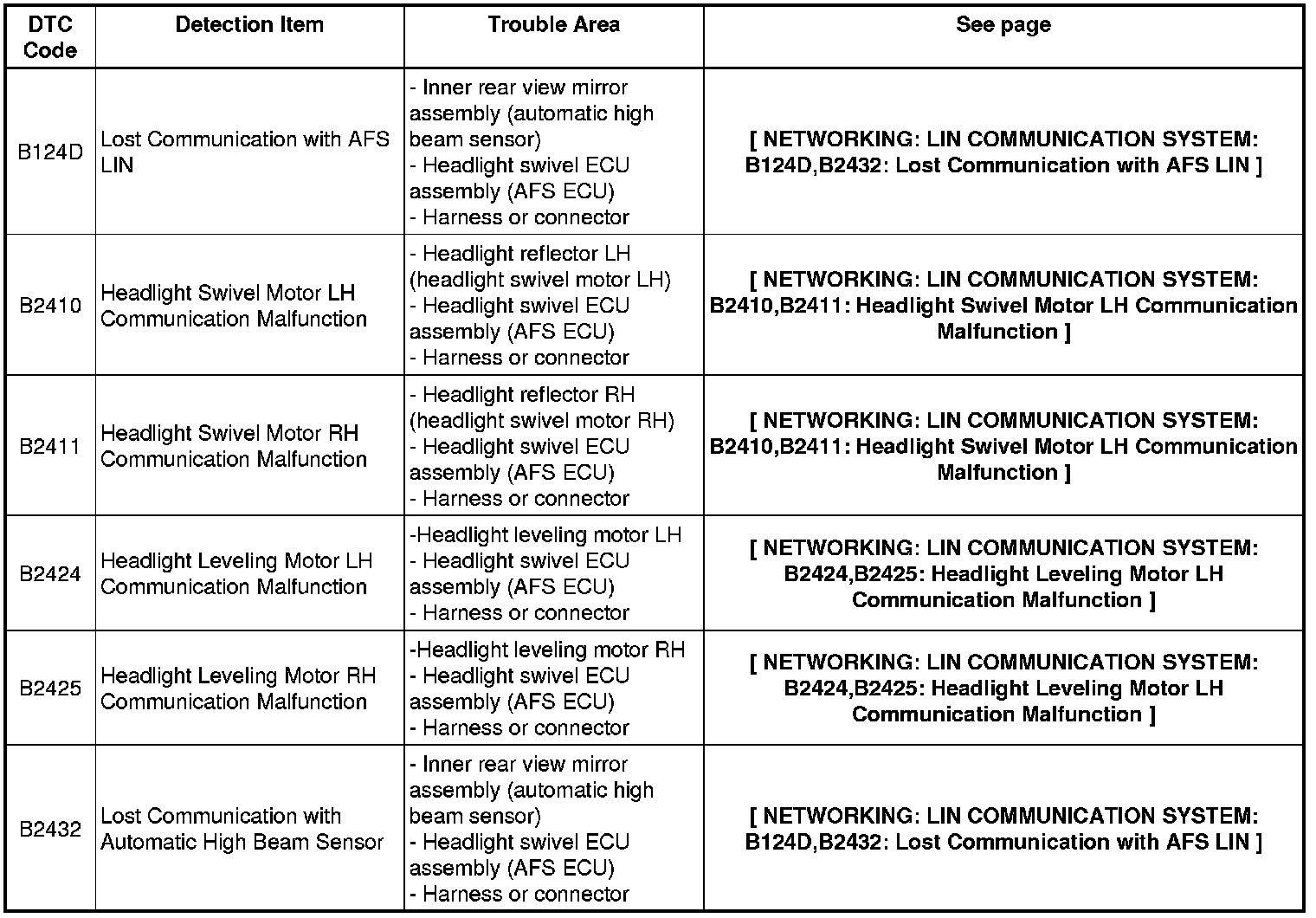

Headlight Swivel ECU Assembly (AFS ECU)

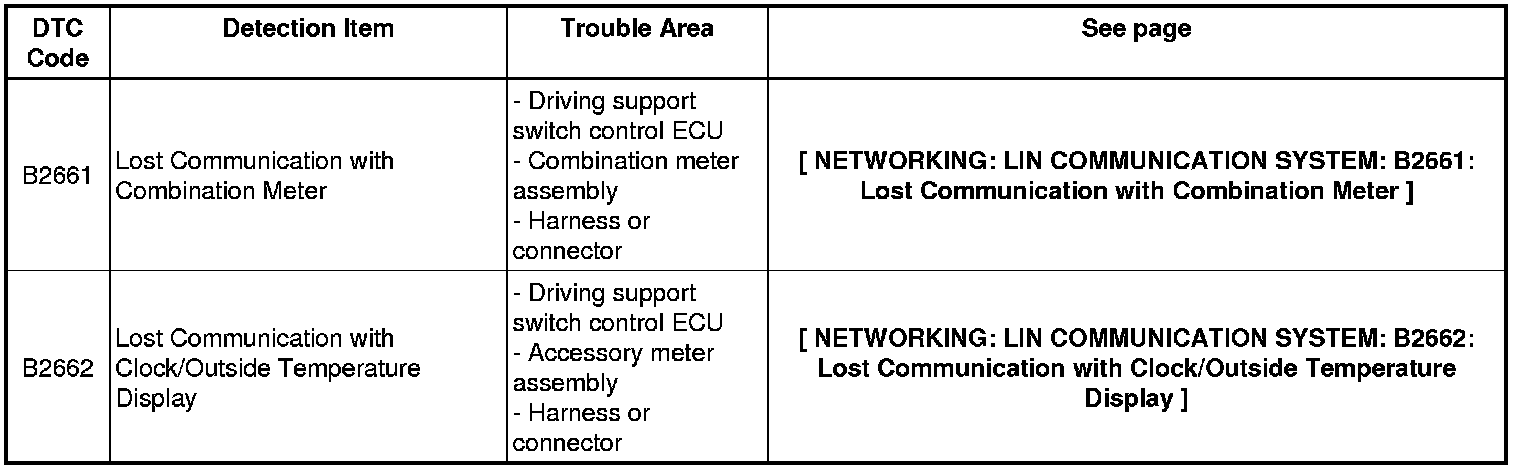

Driving Support Switch Control ECU
