C1A47

PRE-COLLISION: PRE-COLLISION SYSTEM: C1A47: Steering Angle Sensor

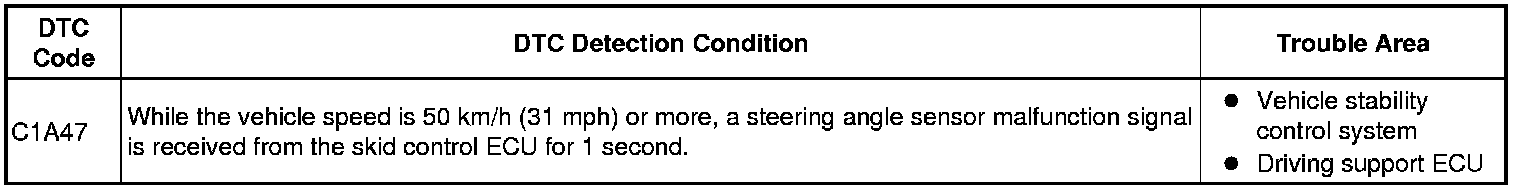

C1A47 - Steering Angle Sensor

DESCRIPTION

The skid control ECU receives steering rotation angle information from the steering angle sensor and sends the information to the driving support ECU through the CAN communication line.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC (VEHICLE STABILITY CONTROL SYSTEM)

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

Vehicle stability control system DTCs are not output.

NG -- GO TO VEHICLE STABILITY CONTROL SYSTEM Vehicle Stability Control System
OK -- Continue to next step.

2. CHECK FOR DTC

(a) Clear the DTCs Pre-Collision System.

(b) Check for DTCs Pre-Collision System.

OK:

DTC C1A47 is not output.

NG -- REPLACE DRIVING SUPPORT ECU Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
