C1881

SUSPENSION CONTROL: KINETIC DYNAMIC SUSPENSION SYSTEM: C1881/81: KDSS ECU Malfunction
C1881/81 - KDSS ECU Malfunction

DESCRIPTION

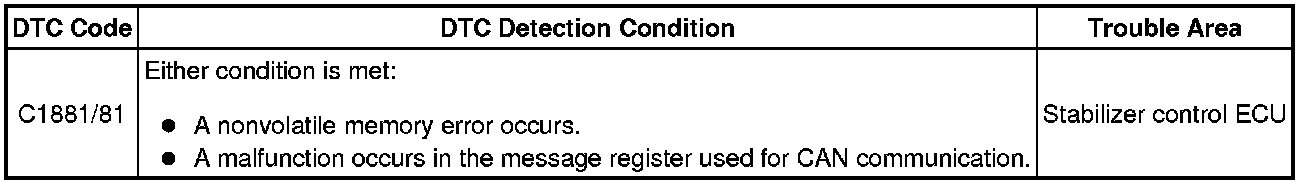

The stabilizer control ECU stores DTC C1881/81 when internal ECU malfunctions occur.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Kinetic Dynamic Suspension System.

(b) Check for DTCs Kinetic Dynamic Suspension System.

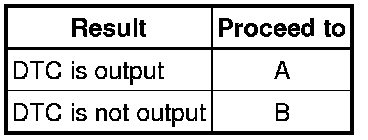

Result





B -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

A -- REPLACE STABILIZER CONTROL ECU Removal
