C1410

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1409, C1410: Front Speed Sensor RH Performance

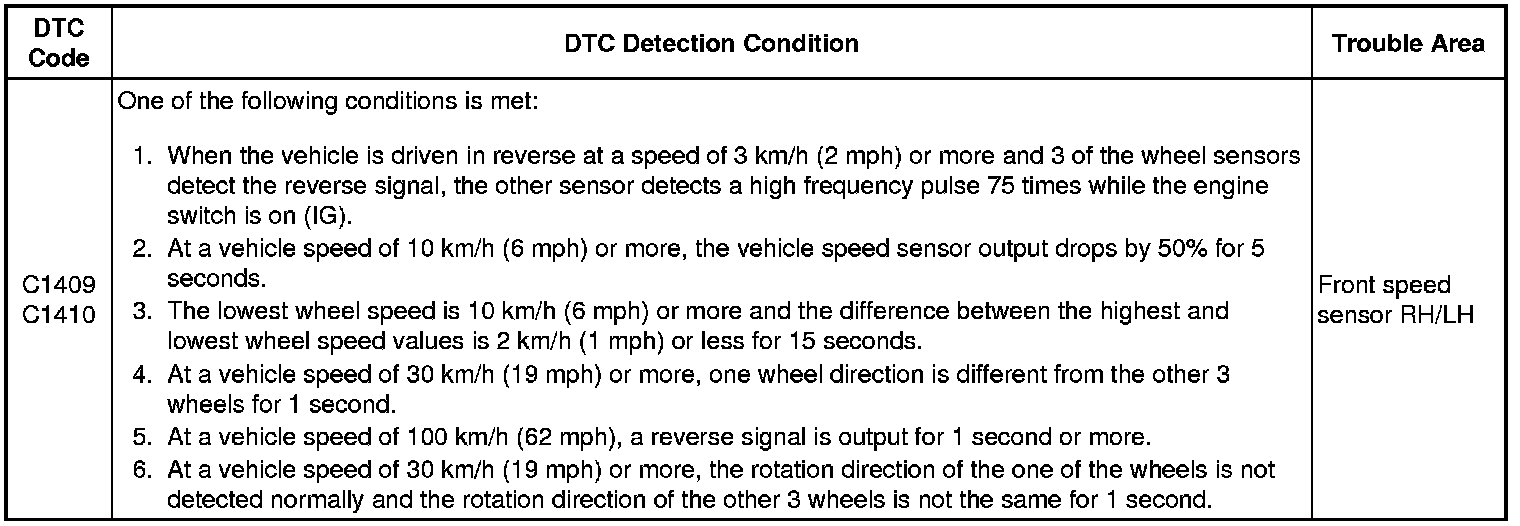

DESCRIPTION

Refer to DTCs C1401 and C1402 C1401.





HINT
- DTC C1409 is for the front speed sensor RH.
- DTC C1410 is for the front speed sensor LH.

INSPECTION PROCEDURE

NOTICE:
Check the speed sensor signal after replacement Test Mode Procedure.

PROCEDURE

1. REPLACE FRONT SPEED SENSOR

(a) Replace the front speed sensor Removal.

NEXT -- END
