C1268

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1268: Transfer L4 Position Switch Circuit
C1268 - Transfer L4 Position Switch Circuit

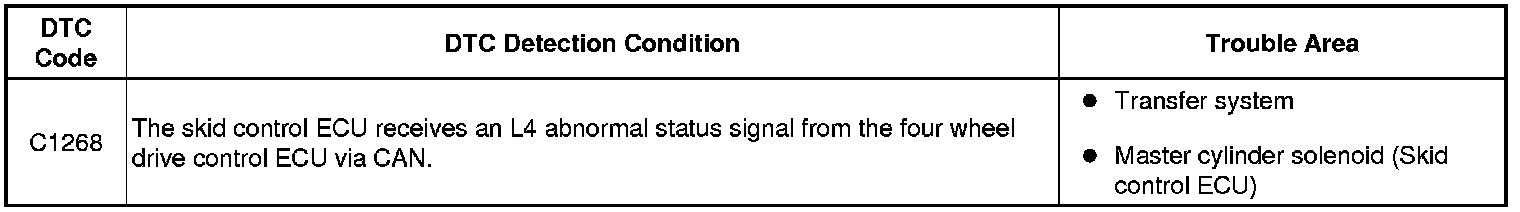

DESCRIPTION





INSPECTION PROCEDURE

NOTICE:
When replacing the master cylinder solenoid, perform calibration Programming and Relearning.

PROCEDURE

1. INSPECT TRANSFER L4 SHIFT

(a) Shift the transfer to L4, and then drive the vehicle and check that there are no problems with the transfer system.

OK:

There are no problems with the transfer system.

NG -- GO TO TRANSFER SYSTEM (PROBLEM SYMPTOMS TABLE) Symptom Related Diagnostic Procedures
OK -- Continue to next step.

2. RECONFIRM DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Shift the transfer to L4, drive the vehicle, and then check for DTCs.

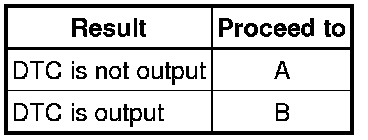

Result





B -- REPLACE MASTER CYLINDER SOLENOID Disassembly

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
